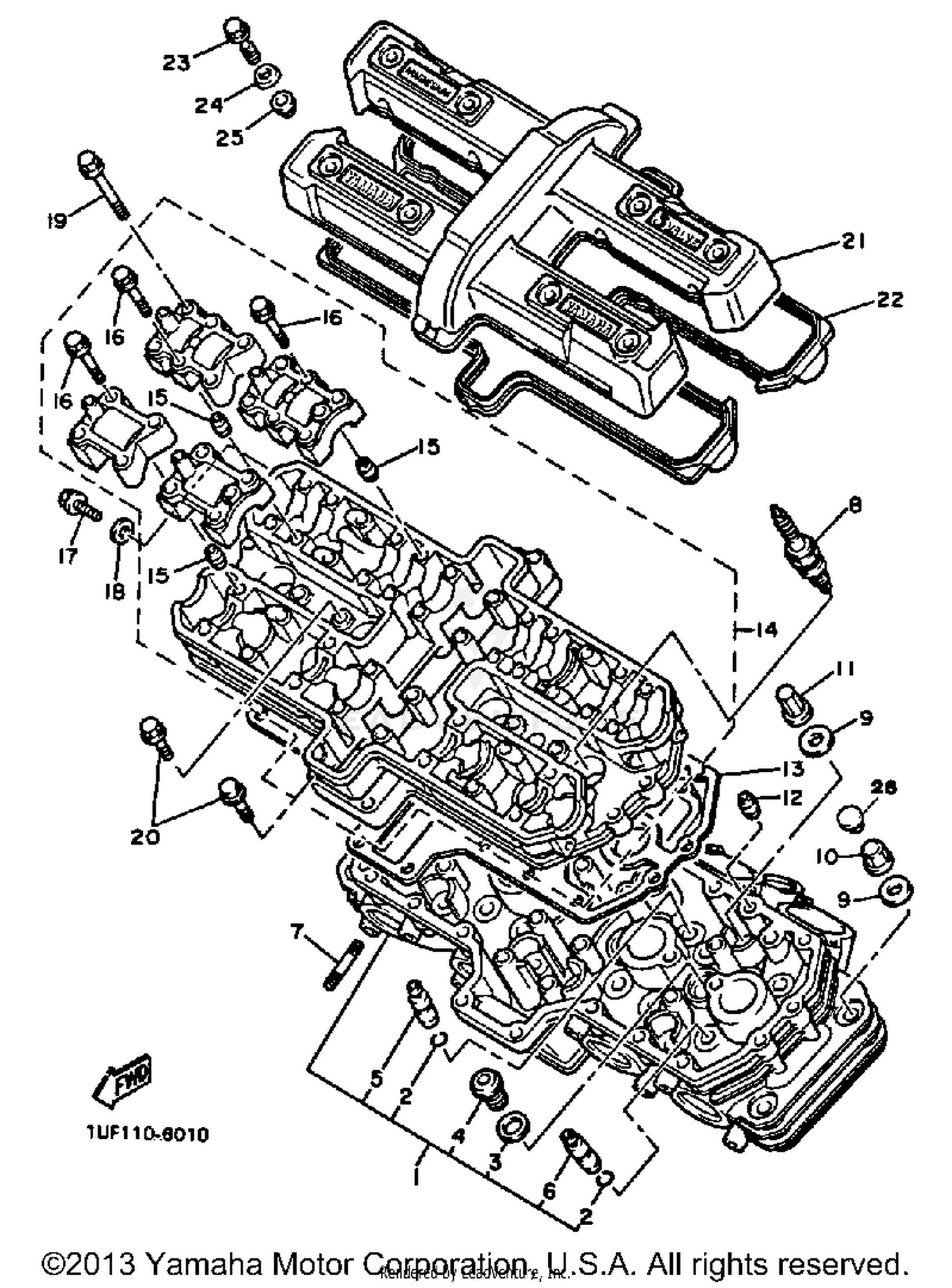

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSEMBLY
1UF-11102-00-00
|
$1,098.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CIRCLIP
93440-09141-00
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-183H2-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLUG, STRAIGHT SCREW
90340-18101-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GDE, INTK VLV 1 O/S
1AA-11133-10-00
|
$41.99 | ||
|
Unavailable |
|||
|
#6
GDE, EXST VLV 1 O/S
1AA-11134-10-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
95611-06630-00
Superseded by 90116-06466-00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
DP8EA9 NGK SPLUG 1
NGK-DP8EA-90-00
Superseded by DP8-EA900-00-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-096J9-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, SPEC''L SHAPE
90179-09489-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SPEC''L SHAPE
90179-09490-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, CYLINDER HEAD 2
2GH-11182-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAM CASE ASSEMBLY
1UF-1115A-01-00
|
$930.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, DOWEL
99510-08016-00
Superseded by 91808-16023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06153-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
90105-06362-00
|
$1.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95026-06025-00
Superseded by 95027-06025-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, CYLINDER.HEAD 1
2AK-11191-00-00
|
$129.99 | ||
|
Unavailable |
|||
|
#
COVER, CYLINDER.HEAD 1
1UF-11191-00-00
|
$194.99 | ||
|
Unavailable |
|||
|
#22
GASKET, HD.COVER 1
1UF-11193-00-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, WITH WASHER
90119-06112-00
Superseded by 90119-06218-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
90209-11262-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RUBBER, MOUNT 1
2GH-1111G-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PLUG
90338-20183-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
