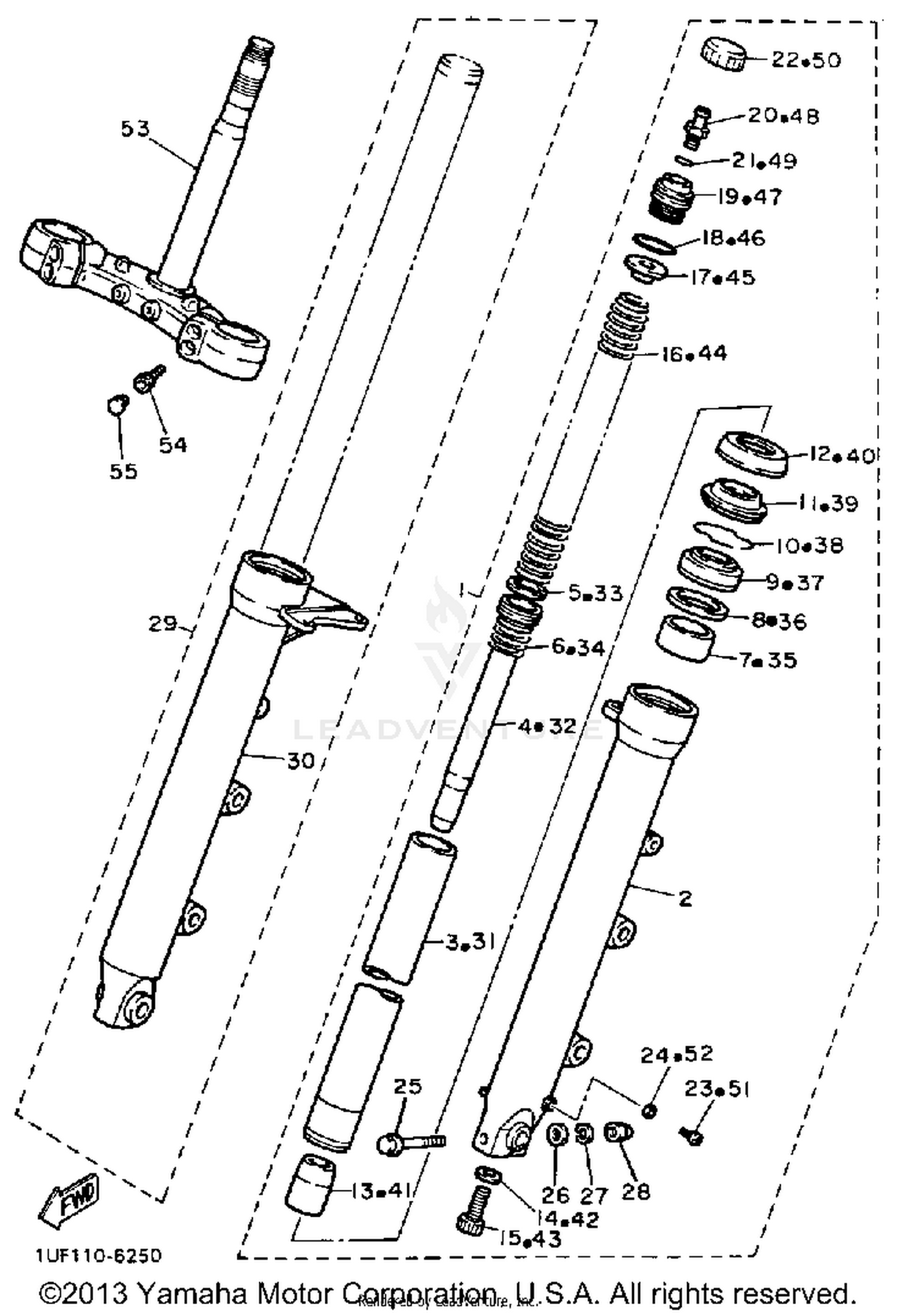

1987 Yamaha FZ700T/C FRONT FORK OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASY L
1UF-23102-00-00
Superseded by 1UF-23102-02-00
|
$651.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER (LEFT)
1UF-23126-00-00
Superseded by 1UF-23126-02-00
|
$498.99 | ||
|
Unavailable |
|||
|
#3
INNER TUBE 1
1UF-23110-00-00
|
$361.18 | ||
|
Unavailable |
|||
|
#4
PISTON, FRONT FORK
1UF-23171-00-00
Superseded by 1UF-23171-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#5
RING, PISTON FRTFRK
1UF-23157-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#6
SPRING, REBOUND
1UF-23151-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#7
METAL, SIDE 1
3XC-23125-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, COVER UPPER
1UF-23115-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
OIL SEAL
93110-38024-00
Superseded by 5GJ-23145-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP, OIL SEAL
1UF-23156-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL, DUST
3XC-23144-00-00
Superseded by 5GJ-23144-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, DUST SEAL
1UF-23148-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPINDLE, TAPER
1GU-23173-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#14
GASKET
90430-08155-00
Superseded by 90430-08143-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91311-08025-00
Superseded by 91314-08025-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, FRONT FORK
1UF-23141-00-00
|
$15.48 | ||
|
Unavailable |
|||
|
#17
SEAT, SPRING UPPER
1UF-23142-00-00
|
$3.90 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-27732-00
|
$2.75 | ||
|
Unavailable |
|||
|
#19
BOLT, CAP
1UF-23111-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#20
AIR VALVE
1UF-23190-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#21
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP
1UF-2319U-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#24
GASKET, DRAIN PLUG
5U8-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE (SMALL HEAD)
95023-08060-00
Superseded by 95024-08060-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT (CROWN)
95303-08800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
FRONT FORK ASY R
1UF-23103-00-00
Superseded by 1UF-23103-01-00
|
$568.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
TUBE, OUTER 2
1UF-23136-00-00
Superseded by 1UF-23136-01-00
|
$514.99 | ||
|
Unavailable |
|||
|
#31
INNER TUBE 1
1UF-23110-00-00
|
$361.18 | ||
|
Unavailable |
|||
|
#32
PISTON, FRONT FORK
1UF-23171-00-00
Superseded by 1UF-23171-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#33
RING, PISTON FRTFRK
1UF-23157-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#34
SPRING, REBOUND
1UF-23151-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#35
METAL, SIDE 1
3XC-23125-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#36
GUIDE, COVER UPPER
1UF-23115-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#37
OIL SEAL
93110-38024-00
Superseded by 5GJ-23145-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#38
CLIP, OIL SEAL
1UF-23156-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#39
SEAL, DUST
3XC-23144-00-00
Superseded by 5GJ-23144-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#40
COVER, DUST SEAL
1UF-23148-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#41
SPINDLE, TAPER
1GU-23173-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#42
GASKET
90430-08155-00
Superseded by 90430-08143-00
|
$3.10 | ||
|
Unavailable |
|||
|
#43
BOLT, HEXAGON SOCKET HEAD
91311-08025-00
Superseded by 91314-08025-00
|
$6.99 | ||
|
Unavailable |
|||
|
#44
SPRING, FRONT FORK
1UF-23141-00-00
|
$15.48 | ||
|
Unavailable |
|||
|
#45
SEAT, SPRING UPPER
1UF-23142-00-00
|
$3.90 | ||
|
Unavailable |
|||
|
#46
O-RING
93210-27732-00
|
$2.75 | ||
|
Unavailable |
|||
|
#47
BOLT, CAP
1UF-23111-00-00
|
$40.99 | ||
|
Unavailable |
|||
|
#48
AIR VALVE
1UF-23190-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#49
O-RING
93210-06632-00
|
$7.49 | ||
|
Unavailable |
|||
|
#50
CAP
1UF-2319U-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#51
SCREW, PAN HEAD
98511-04006-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#52
GASKET, DRAIN PLUG
5U8-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#53
UNDER BRACKET
2JE-23340-00-00
|
$442.99 | ||
|
Unavailable |
|||
|
#54
BOLT, HEXAGON SOCKET HEAD
91311-08025-00
Superseded by 91314-08025-00
|
$6.99 | ||
|
Unavailable |
|||
|
#55
PLUG
90338-08163-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#56
METAL,SLIDE 2
1UF-23135-00-00
Superseded by 3XC-23135-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
