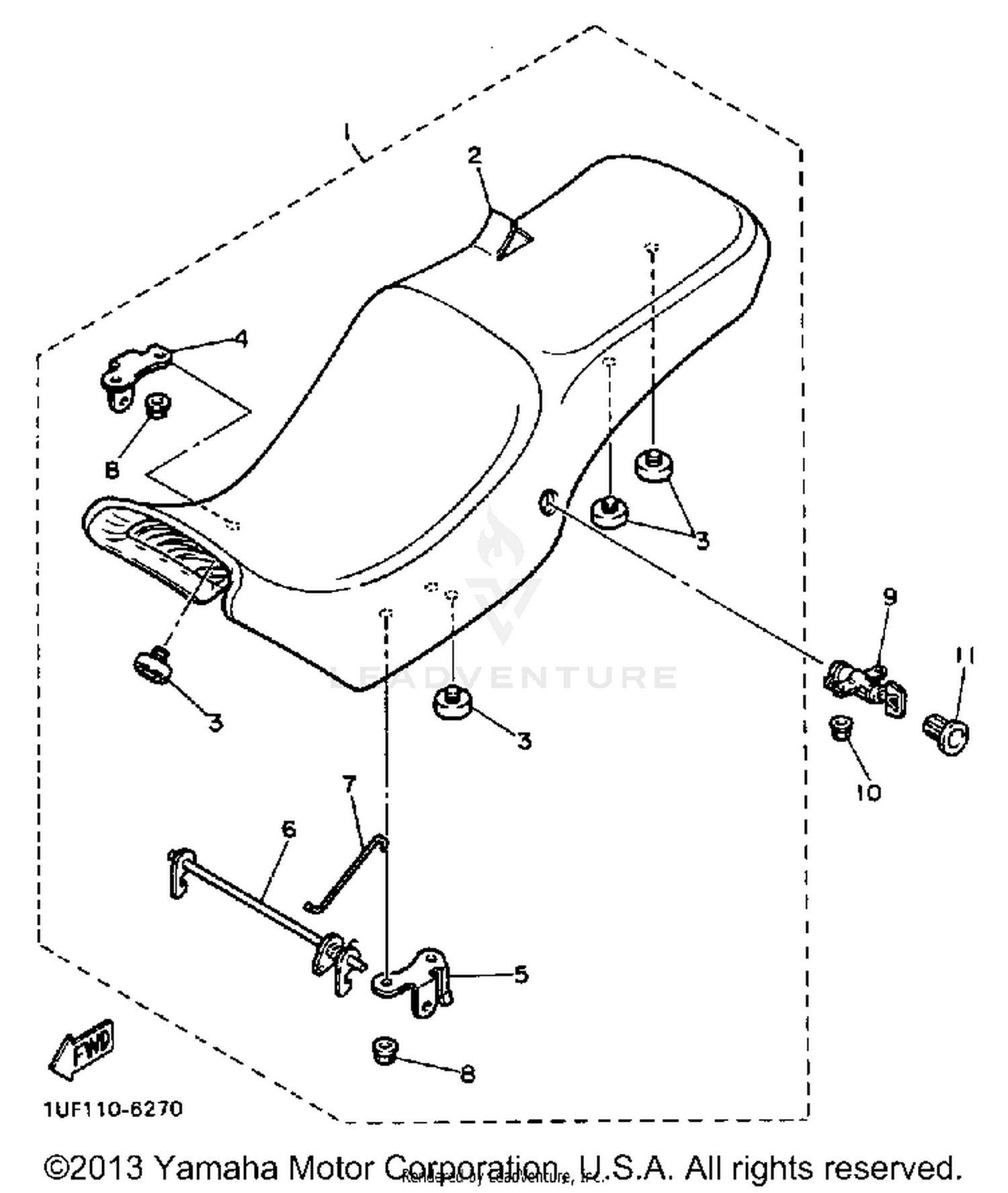

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSEMBLY
1UF-24730-00-00
|
$604.99 | ||
|
Unavailable |
|||
|
#2
COVER, DOUBLE SEAT
1UF-24731-00-00
|
$200.99 | ||
|
Unavailable |
|||
|
#3
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, SEAT
47X-24718-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT
47X-24728-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#6
LEVER, SEAT
1UF-24776-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#7
ROD, CONNECTING
1UF-2478F-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#8
NUT, FLANGE
95701-06500-00
Superseded by 95780-06500-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAT LOCK ASSEMBLY
51X-24705-00-00
Superseded by 47X-24705-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE
95701-05500-00
Superseded by 95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
COVER
1AE-24796-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
