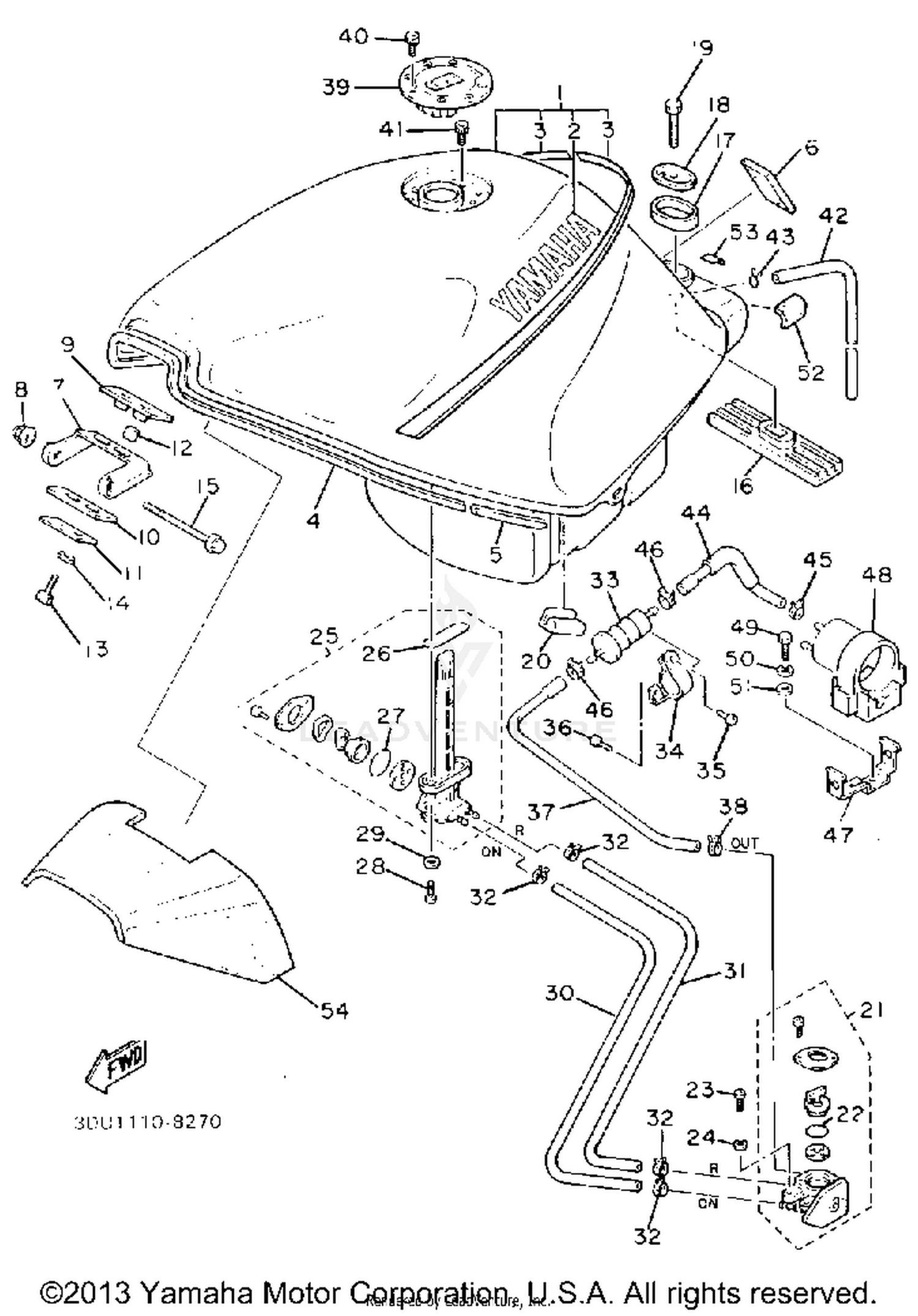

Fuel Tank Noncalifornia Model Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
2GH-24110-00-05
|
$1,145.99 | ||
|
Unavailable |
|||
|
#2
EMBLEM, YAMAHA
99224-00035-00
Superseded by 99244-00140-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRAPHIC SET
2GH-24240-10-00
|
$101.99 | ||
|
Unavailable |
|||
|
#4
TRIM
2GH-2834G-00-00
Superseded by 29L-28376-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
MOLD 6
2GH-2834H-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#6
DAMPER, LOCATING 3
51L-28371-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
BRACKET, FUEL TANK 1
2GH-24191-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#8
NUT, CROWN
95303-06800-00
Superseded by 95380-06800-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
DAMPER, LOCATING 1
2GH-24181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER, LOCATING 3
2GH-24183-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPECIAL
2GH-24186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-06553-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95811-06075-00
Superseded by 95814-06075-00
|
$1.50 | ||
|
Unavailable |
|||
|
#16
DAMPER, LOCATING 4
2GH-24184-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, LOCATING 3
3Y6-24183-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPECIAL
2GH-24187-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#19
BOLT
97011-08030-00
Superseded by 97017-08030-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, LOCATING 2
3GM-24182-00-00
Superseded by 3GM-24182-01-00
|
$13.99 | ||
|
Unavailable |
|||
|
#21
FUEL COCK ASSEMBLY 1
3LN-24500-00-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL, COCK
1JK-24534-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#25
FUEL COCK ASY 2
2GH-24510-00-00
Superseded by 2GH-24510-01-00
|
$118.99 | ||
|
Unavailable |
|||
|
#26
O-RING
2W6-24512-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
3H3-24534-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOSE (L400)
90445-11698-00
Superseded by 90445-116K9-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE (L400)
90445-11698-00
Superseded by 90445-116K9-00
|
$22.99 | ||
|
Unavailable |
|||
|
#32
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
FILTER ASSY
1FK-24560-00-00
Superseded by 1FK-24560-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP, FUEL PIPE 1
2GH-24366-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#35
SCREW,BINDING
98903-05012-00
Superseded by 98904-05012-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, BIND
98903-06012-00
Superseded by 98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE 2
2GH-24312-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#38
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Unavailable |
|||
|
#39
CAP ASSY
1JK-24602-13-00
Superseded by 4FM-24602-20-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
90110-05112-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, HEXAGON SOCKET HEAD
91311-05010-00
Superseded by 91314-05010-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOSE (L650)
90445-105G5-00
Superseded by 90445-105K7-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIPE 3
2GH-24313-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#45
CLIP, SCISSOR
90467-10091-00
|
$8.49 | ||
|
Unavailable |
|||
|
#46
CLIP
90467-11044-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
CLAMP 2
2GH-24136-00-00
|
$4.75 | ||
|
Unavailable |
|||
|
#48
BAND 1
2GH-24398-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#49
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#50
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#51
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#52
DAMPER
5H0-8235Y-M0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
SEAL 1
2GH-21732-00-00
|
$2.10 | ||
|
Unavailable |
|||
|
#54
DAMPER PLATE 2
2LJ-2414J-00-00
|
$54.99 | ||
|
Unavailable |
|||
