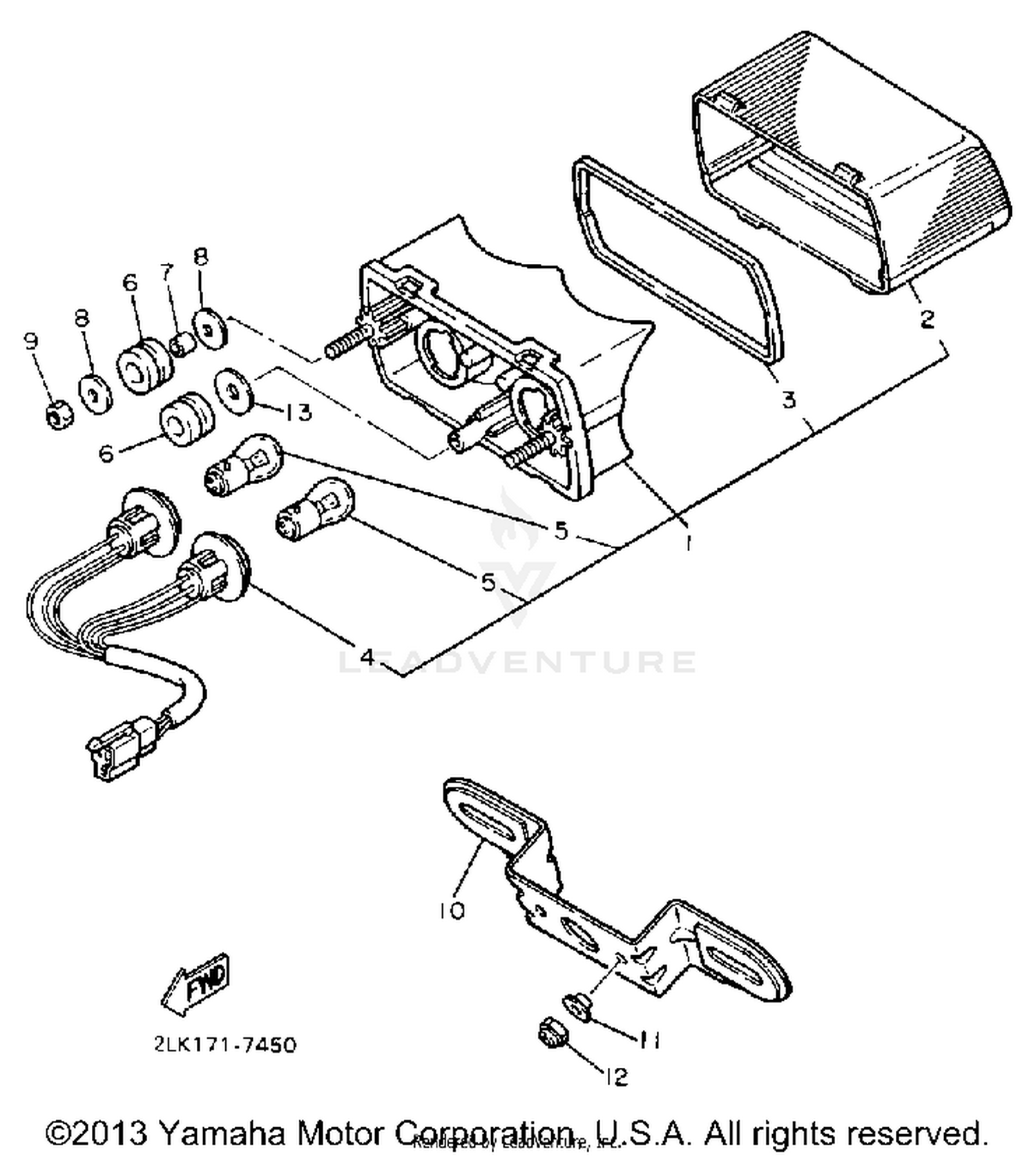

1988 Yamaha FZR1000U TAILLIGHT OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TAILLIGHT UNIT ASSEMBLY
52X-84710-60-00
|
$144.99 | ||
|
Unavailable |
|||
|
#2
LENS, TAILLIGHT
47X-84721-00-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, TAIL LENS
47X-84723-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CORD ASSEMBLY
47X-84735-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#5
BULB (12V-27/8W)
256-84714-61-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GROMMET
90480-18407-00
|
$11.99 | ||
|
Unavailable |
|||
|
#7
COLLAR
90387-060N3-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-063J2-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
BRACKET, LICENSE
2LJ-84751-00-98
|
$173.99 | ||
|
Unavailable |
|||
|
#11
COLLAR
90387-061M0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, U
95616-06100-00
Superseded by 95617-06100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN
92906-10200-00
Superseded by 92907-10200-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
