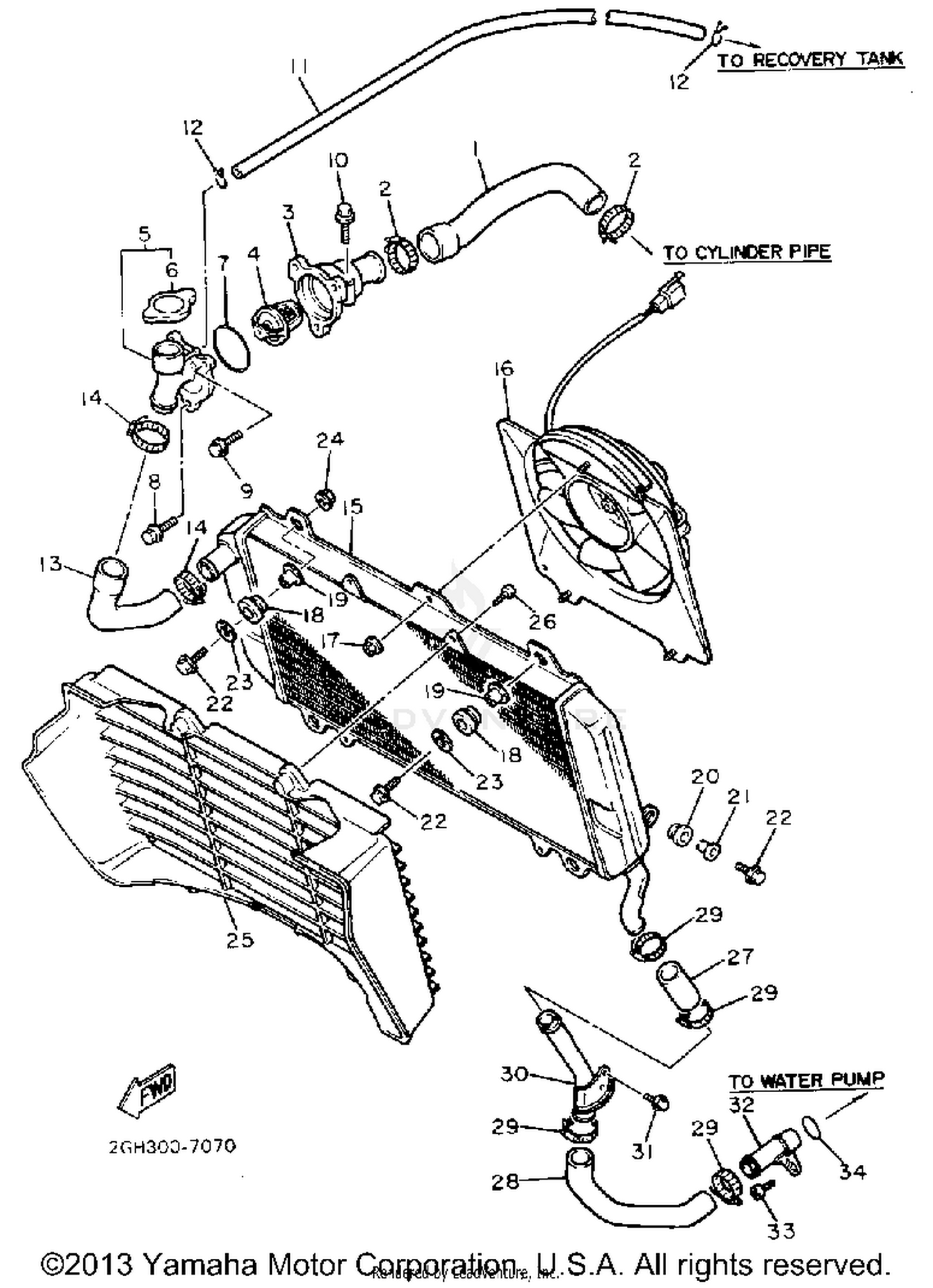

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE 1
2GH-12576-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#2
HOSE CLAMP ASSY
90460-38285-00
Superseded by 90450-38040-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOUSING, THERMOSTAT
1AE-12417-02-00
|
$101.99 | ||
|
Unavailable |
|||
|
#4
THERMOSTAT ASSY
1AE-12410-00-00
Superseded by 1AE-12410-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#5
SUPT, FILLER NECK
1AE-12590-00-00
Superseded by 1AE-12591-01-00
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, RADIATOR
1AE-12462-00-00
Superseded by 4FL-12462-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-49046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLG.(SMALL HEAD)
95023-06020-00
Superseded by 95024-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95026-06020-00
Superseded by 95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT,FLANGE
95816-06030-00
Superseded by 95817-06030-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOSE (L675)
90445-096E8-00
Superseded by 90445-090F6-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOSE 2
2GH-12577-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#14
HOSE CLAMP ASSY
90460-38285-00
Superseded by 90450-38040-00
|
$16.99 | ||
|
Unavailable |
|||
|
#15
UNAVAILABLE IN PRICE BOOK
2GH-12641-00-00
|
|||
|
Unavailable |
|||
|
#16
BLOWER ASSEMBLY
2GH-12405-00-00
|
$1,041.99 | ||
|
Unavailable |
|||
|
#17
NUT, FLANGE
95706-06500-00
Superseded by 95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-18276-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-07037-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-10297-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COLLAR
90387-06033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95826-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-06697-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT, FLANGE
95706-06500-00
Superseded by 95707-06500-00
|
$1.15 | ||
|
Unavailable |
|||
|
#25
COVER, RADIATOR
2GH-12467-00-00
|
$162.99 | ||
|
Unavailable |
|||
|
#26
SCREW, TAPPING
97706-60514-00
Superseded by 97707-60514-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOSE 4
2GH-12579-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#28
HOSE 3
2GH-12578-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#29
HOSE CLAMP ASSY
90460-38285-00
Superseded by 90450-38040-00
|
$16.99 | ||
|
Unavailable |
|||
|
#30
PIPE 3
2GH-12483-01-00
|
$71.99 | ||
|
Unavailable |
|||
|
#31
BOLT, FLANGE
90105-06707-00
Superseded by 95024-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIPE 4
2GH-12484-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
90110-06142-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING
93210-23787-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
