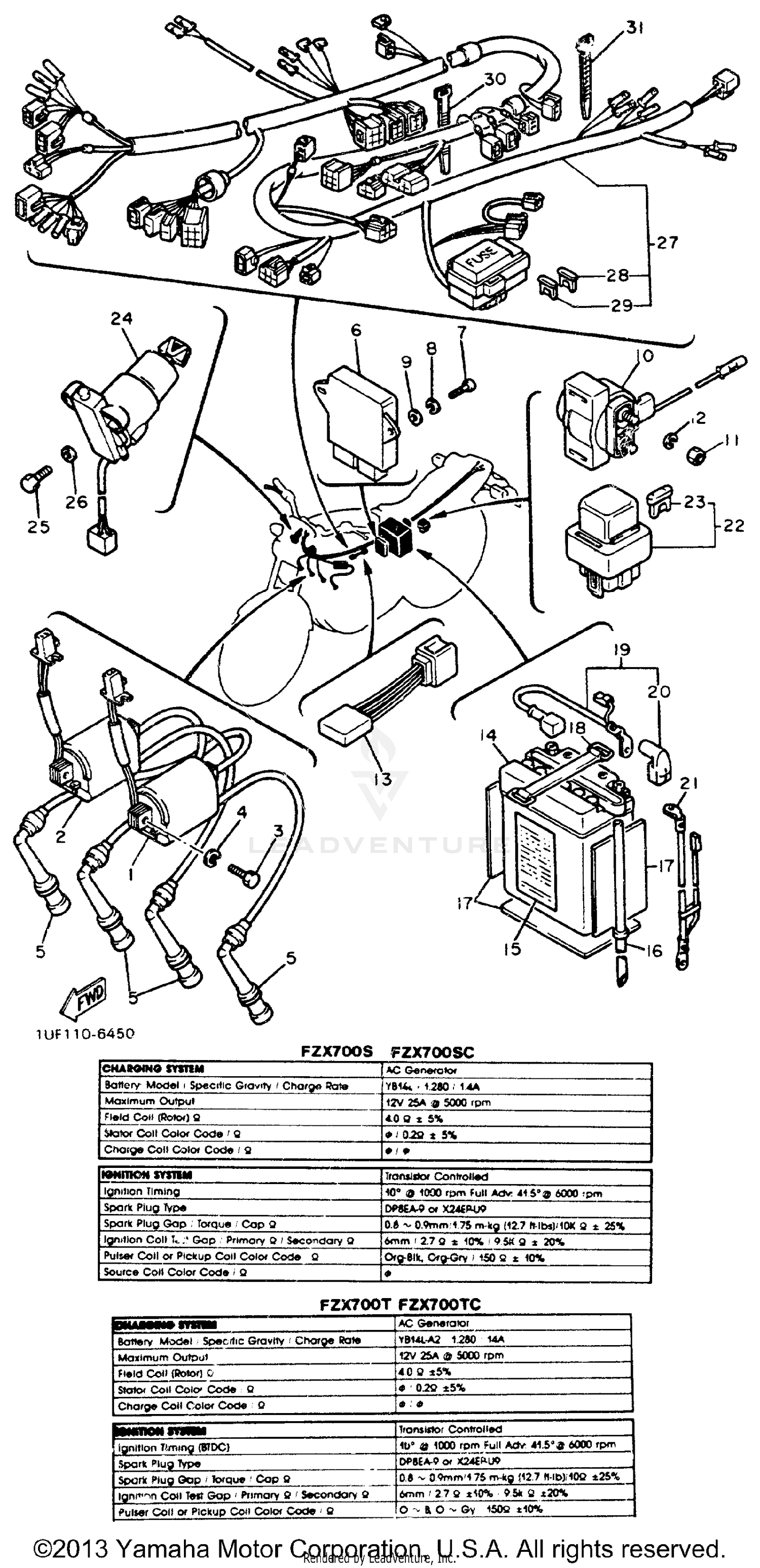

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
IGNITION COIL ASY
1UF-82310-10-00
Superseded by 1AE-82310-09-00
|
$201.99 | ||
|
Unavailable |
|||
|
#2
IGNITION COIL ASY
1UF-82320-10-00
Superseded by 1AE-82310-09-00
|
$201.99 | ||
|
Unavailable |
|||
|
#3
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSEMBLY
2KT-82370-00-00
|
$117.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
IGNITOR UNIT ASSEMBLY 1
1UF-82305-10-00
|
$736.99 | ||
|
Unavailable |
|||
|
#7
SCREW,PAN HEAD
97806-06016-00
|
|||
|
Unavailable |
|||
|
#8
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
STARTER RELAY ASSY
36Y-81940-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#13
DIODE ASSY
4U8-81980-M0-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
YB14LA2 YUASA BATTE
BTY-YB14L-A2-00
Superseded by YB1-4LA20-00-00
|
$63.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
|
#16
PIPE
90445-083A4-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAT, BATTERY
5G3-82121-00-00
Superseded by 5Y1-82122-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BAND, BATTERY
2T4-82131-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WIRE, PLUS LEAD
1TX-82115-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#20
COVER, LEAD WIRE
4X7-82119-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WIRE, MINUS LEAD
1UF-82116-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#22
FUSE HOLDER ASSY
1AE-82150-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FUSE (30A-BL)
1AE-82151-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
MAIN SWITCH STEERING LOCK
1UF-82501-10-00
Superseded by 3LT-82501-00-00
|
$176.99 | ||
|
Unavailable |
|||
|
#25
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
WIRE HARNESS ASSEMBLY
1UF-82590-00-00
|
$159.99 | ||
|
Unavailable |
|||
|
#28
FUSE (10A-BL)
42X-82151-20-00
Superseded by 42X-82151-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#29
FUSE (15A-BL)
36Y-82151-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAND
341-26397-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BAND
90464-13080-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
