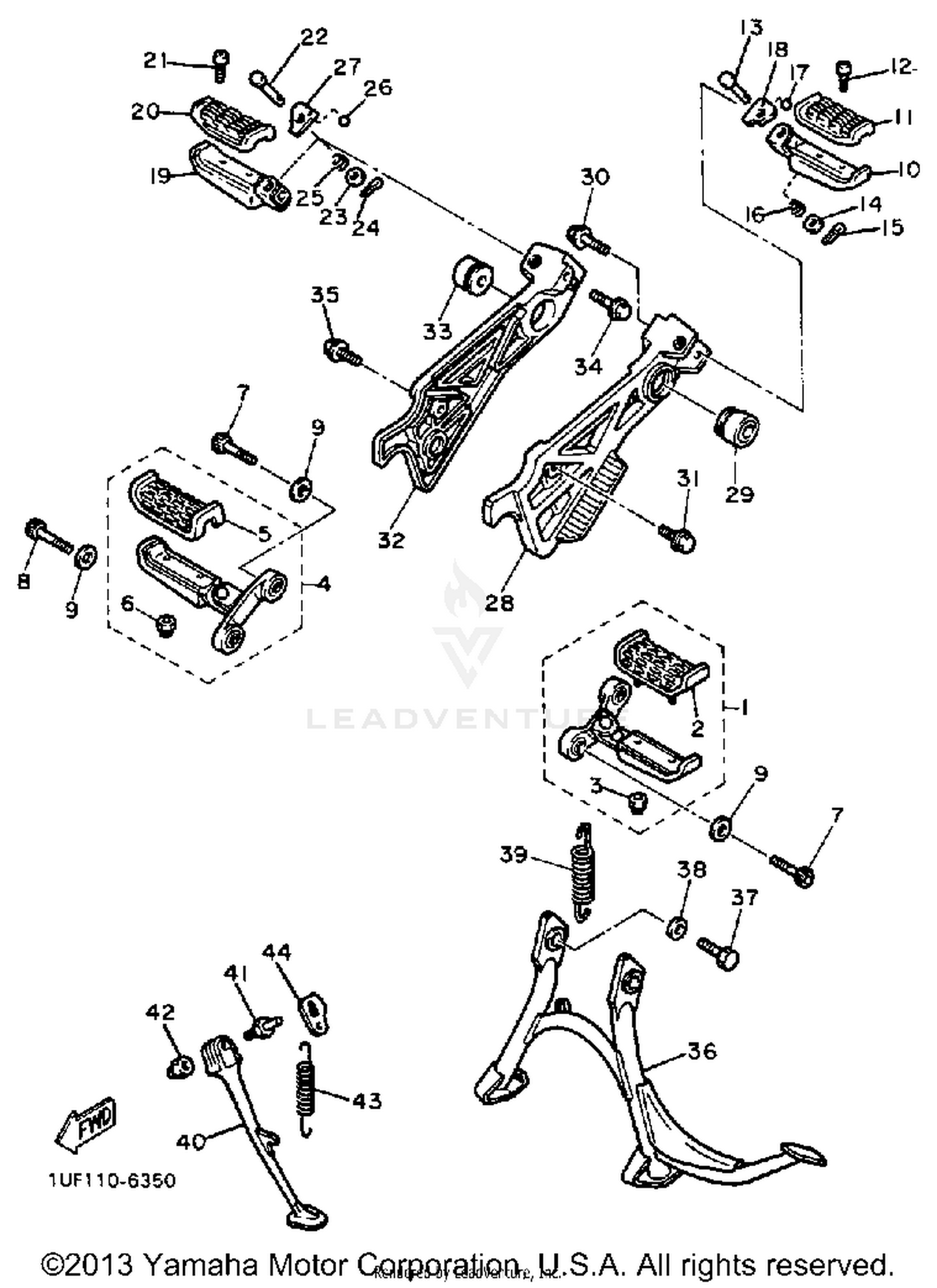

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRT FOOTREST ASSEMBLY L
1UF-27410-00-00
|
$128.99 | ||
|
Unavailable |
|||
|
#2
COVER, FOOTREST
22N-27413-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
FRT FOOTREST ASSEMBLY R
1UF-27420-00-00
|
$187.99 | ||
|
Unavailable |
|||
|
#5
COVER, FOOTREST
22N-27413-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#6
NUT, U
95601-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
BOLT, HEXAGON SOCKET HEAD
90110-08122-00
Superseded by 90110-08220-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-08123-00
Superseded by 90110-08221-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
90209-08295-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
RR FOOTREST ASSEMBLY 1
29L-27431-00-00
Superseded by 29L-27430-00-00
|
$227.99 | ||
|
Unavailable |
|||
|
#11
COVER, RR FOOTREST
22N-27433-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#12
SCREW, PAN HEAD
98506-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, CLEVIS
91701-06042-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, COMPRESSION
90501-16761-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPECIAL
33M-27437-00-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#19
RR FOOTREST ASSEMBLY 2
29L-27441-00-00
Superseded by 29L-27440-00-00
|
$226.99 | ||
|
Unavailable |
|||
|
#20
COVER, RR FOOTREST
22N-27433-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98506-05010-00
Superseded by 98517-05010-00
|
$4.00 | ||
|
Unavailable |
|||
|
#22
PIN, CLEVIS
91701-06042-00
|
$6.49 | ||
|
Unavailable |
|||
|
#23
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Unavailable |
|||
|
#24
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#25
SPRING, COMPRESSION
90501-16761-00
|
$6.49 | ||
|
Unavailable |
|||
|
#26
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
WASHER, SPECIAL
33M-27437-00-00
|
$3.40 | ||
|
Unavailable |
|||
|
#28
BRACKET 2
1UF-27442-00-38
|
$221.99 | ||
|
Unavailable |
|||
|
#29
DAMPER, MUFFLER
1UF-14737-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#30
BOLT, FLANGE (SMALL HEAD)
95023-08025-00
Superseded by 95024-08025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, FLANGE
91002-10020-00
Superseded by 95817-10020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET 3
1UF-27443-00-38
|
$156.99 | ||
|
Unavailable |
|||
|
#33
DAMPER, MUFFLER
1UF-14737-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE (SMALL HEAD)
95023-08025-00
Superseded by 95024-08025-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
BOLT, FLANGE
91002-10020-00
Superseded by 95817-10020-00
|
$7.49 | ||
|
Unavailable |
|||
|
#36
STAND, MAIN
1UF-27111-00-00
|
$261.99 | ||
|
Unavailable |
|||
|
#37
BOLT,HEXAGON
97011-10016-00
Superseded by 97017-10016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLATE
90201-10752-00
Superseded by 90201-100A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING, TENSION
90506-35149-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
STAND, SIDE
1UF-27311-00-R4
|
$121.99 | ||
|
Unavailable |
|||
|
#41
BOLT
90109-10590-00
Superseded by 90109-10473-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
SPRING, TENSION
90506-29266-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
LINK, SIDE STAND
2KT-27315-00-00
Superseded by 3VD-27315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
