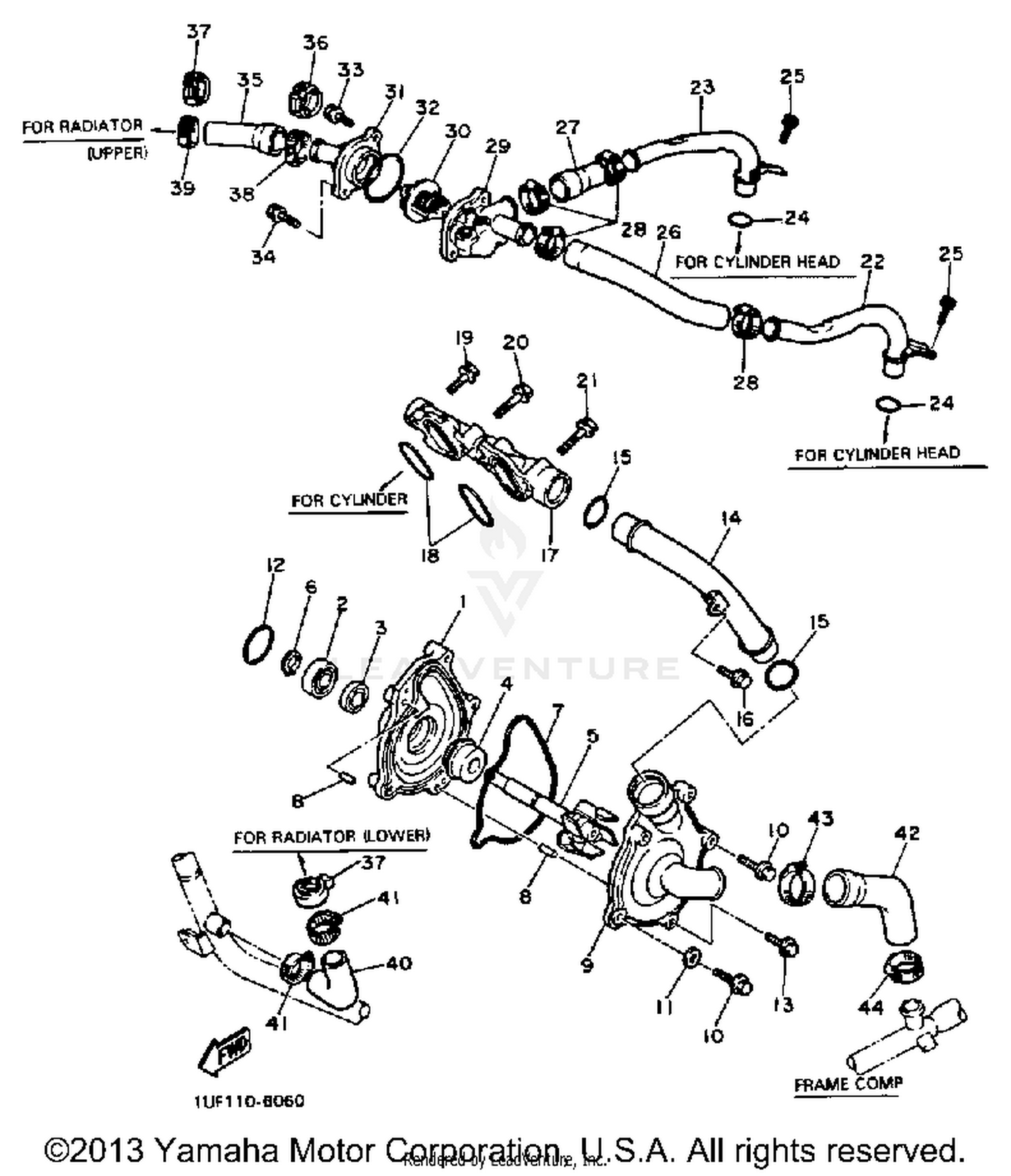

Water Pump Piping Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING, WATER PUMP
1UF-12421-09-00
|
$171.99 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-00106-00
Superseded by 93306-00105-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93101-12060-00
Superseded by 93101-12173-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, MECHANICAL
11H-12438-00-00
Superseded by 11H-12438-10-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
IMPELLER SHAFT ASSEMBLY
1UF-12450-00-00
|
$121.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CIRCLIP
99009-12400-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
1AE-12439-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, HOUSING
1UF-12422-09-00
|
$205.99 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE
95026-06025-00
Superseded by 95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-33133-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95026-06050-00
Superseded by 95027-06050-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIPE 1
1UF-12481-00-00
|
$26.12 | ||
|
Unavailable |
|||
|
#15
O-RING
93210-23787-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
95026-06012-00
Superseded by 95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#17
JOINT 1
3DX-12469-00-00
|
$145.99 | ||
|
Unavailable |
|||
|
#18
O-RING
93210-30694-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95026-06020-00
Superseded by 95027-06020-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95026-06030-00
Superseded by 95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95026-06040-00
Superseded by 95027-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE 2
1UF-12482-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#23
PIPE 3
1UF-12483-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#24
O-RING
93210-18417-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
91316-06012-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE 1
1UF-12576-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#27
HOSE 2
1UF-12577-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#28
HOSE CLAMP ASSY
90450-32051-00
Superseded by 90450-32015-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOUSING, THERMOSTAT
1UF-12417-01-00
|
$183.99 | ||
|
Unavailable |
|||
|
#30
THERMOSTAT ASSY
1AE-12410-00-00
Superseded by 1AE-12410-01-00
|
$36.99 | ||
|
Unavailable |
|||
|
#31
COVER, THERMOSTAT
1UF-12413-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING
93210-49046-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95026-06020-00
Superseded by 95027-06020-00
|
$5.49 | ||
|
Unavailable |
|||
|
#34
BOLT, FLANGE
95026-06030-00
Superseded by 95027-06030-00
|
$3.75 | ||
|
Unavailable |
|||
|
#35
HOSE 3
1UF-12578-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#36
COVER 4
1UF-1246G-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#37
COVER 5
1UF-1246H-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#38
HOSE CLAMP ASSY
90460-38285-00
Superseded by 90450-38040-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE CLAMP ASSY
90450-32051-00
Superseded by 90450-32015-00
|
$16.49 | ||
|
Unavailable |
|||
|
#40
HOSE, 4
1UF-12579-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE CLAMP ASSY
90450-32051-00
Superseded by 90450-32015-00
|
$16.49 | ||
|
Unavailable |
|||
|
#42
HOSE 5
1UF-12588-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#43
HOSE CLAMP ASSY
90460-38285-00
Superseded by 90450-38040-00
|
$16.99 | ||
|
Unavailable |
|||
|
#44
HOSE CLAMP ASSY
90450-32051-00
Superseded by 90450-32015-00
|
$16.49 | ||
|
Unavailable |
|||
