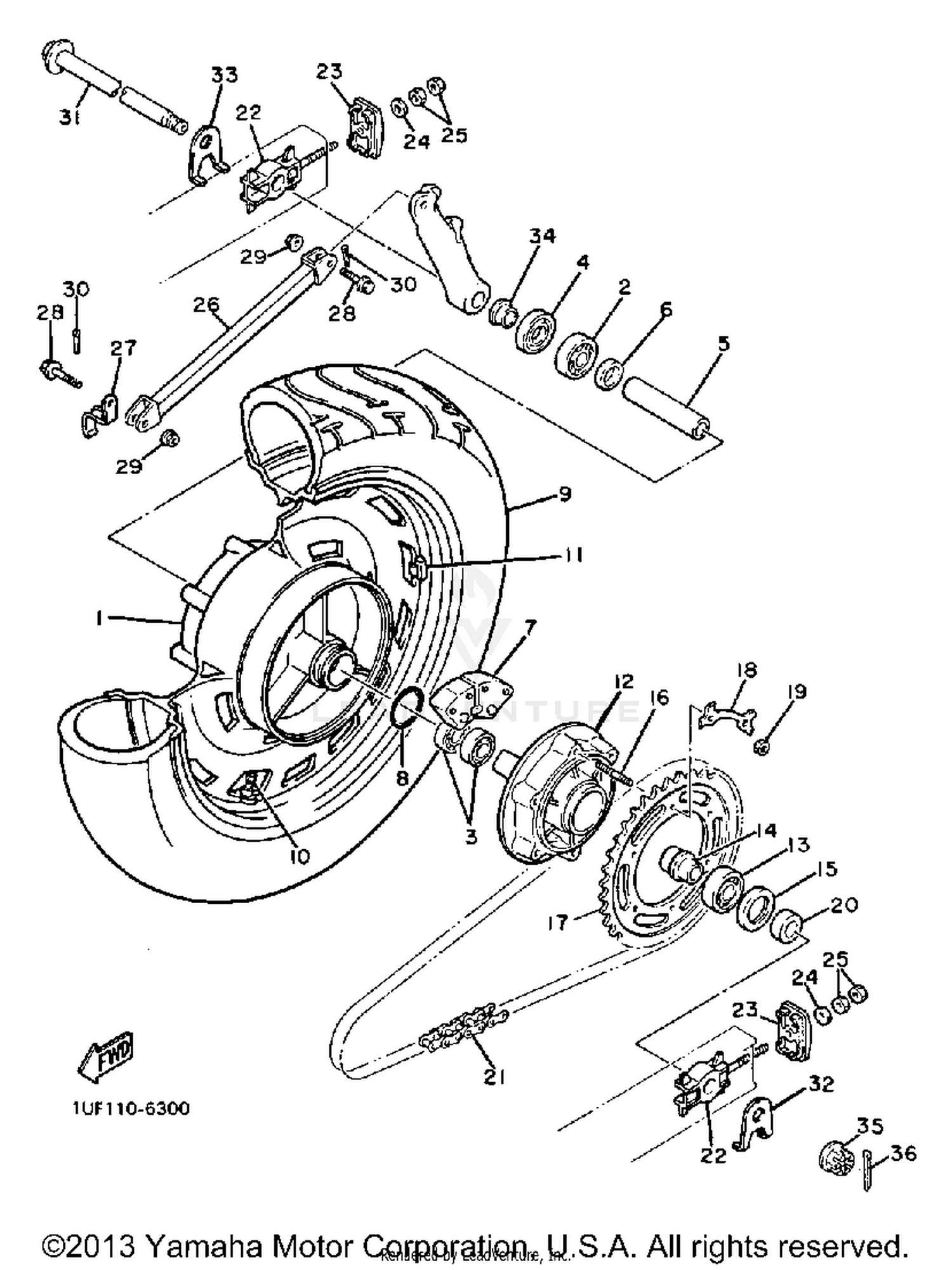

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WHEEL, CAST REAR
1UF-25338-00-35
|
$551.81 | ||
|
Unavailable |
|||
|
#2
BEARING
93306-30309-00
Superseded by 93306-30317-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
OIL SEAL
93102-25044-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-173M5-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLANGE, SPACER
146-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER
1UF-25364-00-00
Superseded by 4BP-25364-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING
93210-48530-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
140/90-V15 G528 BS
94114-151J6-00
|
$183.99 | ||
|
Unavailable |
|||
|
#10
VALVE, RIM (PVR59A)
93900-00016-00
Superseded by 93900-00025-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BALANCER, WHEEL (20G)
29L-25398-10-00
Superseded by 5MT-25398-10-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (30G)
29L-25398-20-00
Superseded by 5MT-25398-20-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BALANCER, WHEEL (10G)
29L-25398-00-00
Superseded by 5MT-25398-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLUTCH, HUB
1UF-25366-00-00
|
$176.99 | ||
|
Unavailable |
|||
|
#13
BEARING
93306-37203-00
Superseded by 93306-37207-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COLLAR
90387-177K0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93105-42024-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STUD
90116-10482-00
Superseded by 90116-10467-00
|
$5.49 | ||
|
Unavailable |
|||
|
#17
SPROCKET, DRVN44T
1AE-25444-21-00
|
$65.99 | ||
|
Unavailable |
|||
|
#18
WASHER
1UF-25412-00-00
Superseded by 2AK-25412-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-177K1-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CHAIN (D.I.D 50VA 108L)
94580-79108-00
|
$356.99 | ||
|
Unavailable |
|||
|
#22
PULLER, CHAIN 1
1UF-25388-00-00
Superseded by 1UF-25388-02-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
END 1
1UF-22174-00-00
Superseded by 1UF-22174-01-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAR, TENSION
1UF-25371-00-00
|
$17.80 | ||
|
Unavailable |
|||
|
#27
HOLDER, BRAKE HOSE
1UF-25886-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#28
BOLT, FLANGE
90105-08321-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
AXLE, WHEEL
1AE-25381-00-00
Superseded by 1AE-25381-01-00
|
$69.99 | ||
|
Unavailable |
|||
|
#32
PLATE, INDICATOR
1UF-2533A-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NO LONGER AVAILABLE
1UF-2533E-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#34
COLLAR
90387-177Y4-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, CASTLE
90171-16024-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
