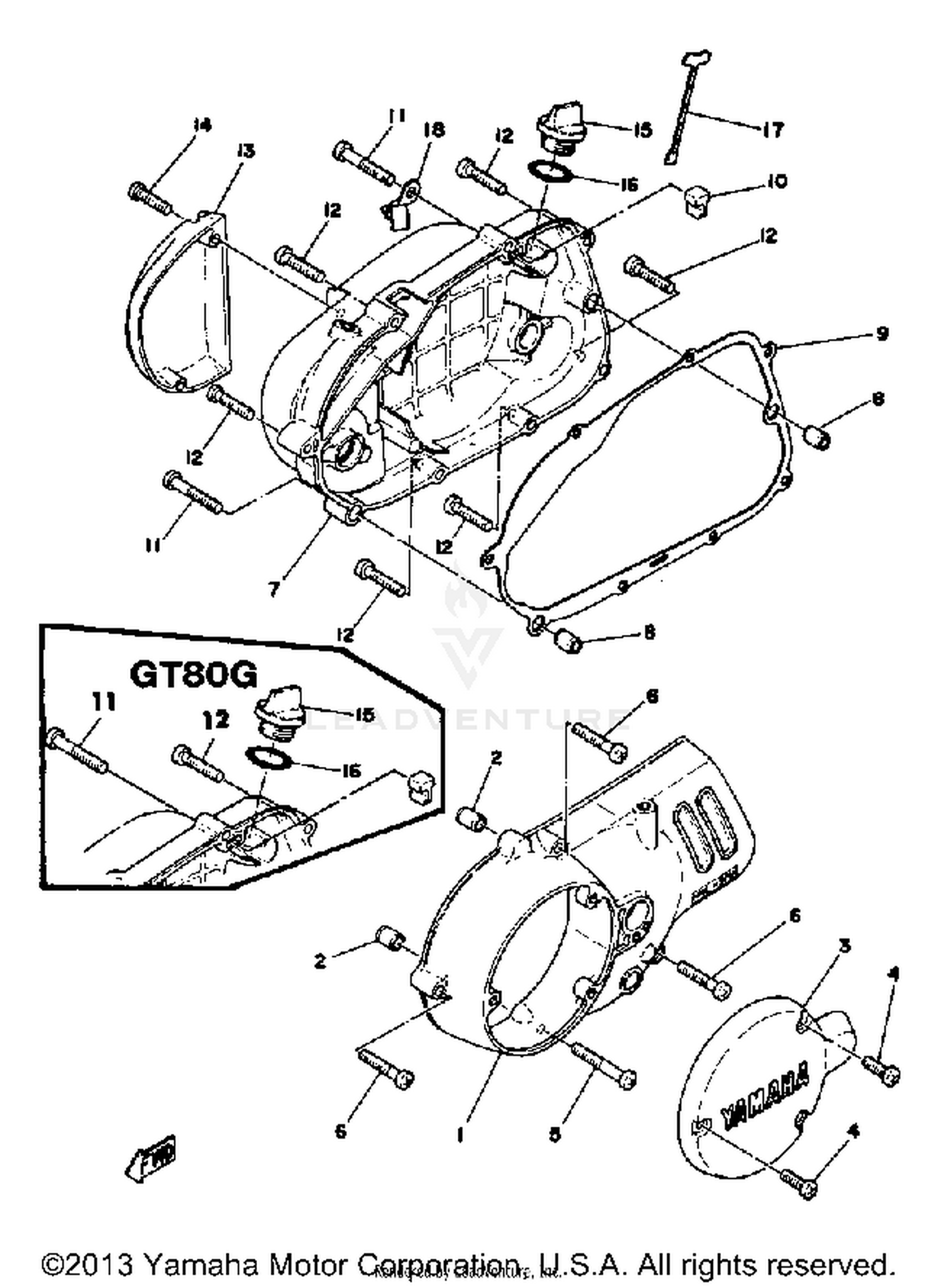

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L (353-15411-0
353-15411-00-Y4
|
$84.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#3
COVER, GENERATOR
353-15415-00-Y4
|
$57.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD (92503-06045-00
98580-06545-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER, CRANKCASE R
353-15421-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#8
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Unavailable |
|||
|
#9
GASKET, CRCS COVER
3MT-15451-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCRAPER, OIL
353-15437-02-00
|
$6.49 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD (90501-06040-00
98580-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98580-06030-00
Superseded by 97885-06030-00
|
$4.70 | ||
|
Unavailable |
|||
|
#13
COVER, OIL PUMP
353-15416-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG, OIL
1RG-15363-00-00
Superseded by 3Y1-15363-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
93210-21190-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GAUGE, LEVEL
353-15361-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#18
HOLDER, OIL PIPE
367-13174-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
