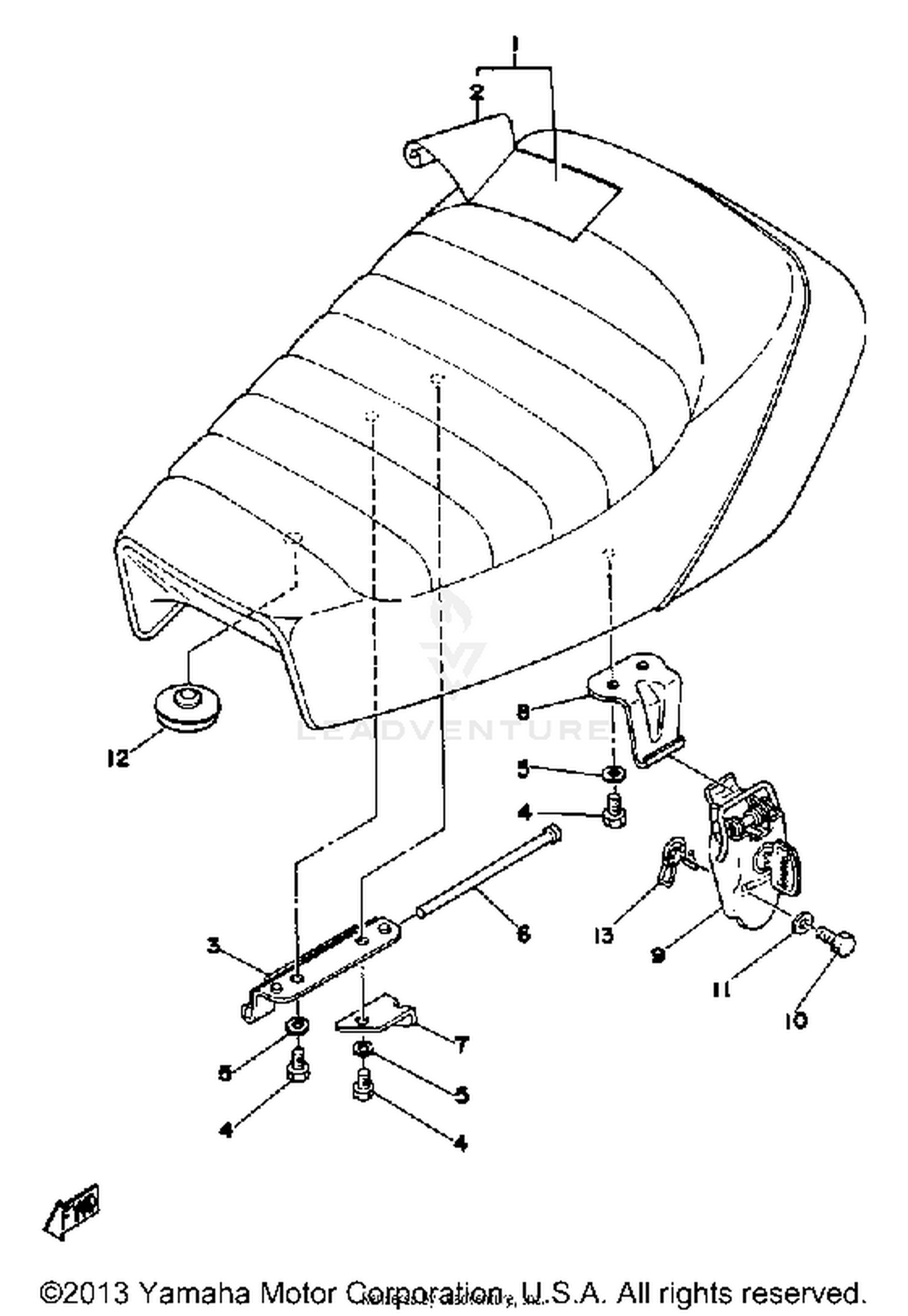

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEMI-DBL-SEAT ASSEMBLY
2A3-W2473-00-00
|
$124.99 | ||
|
Unavailable |
|||
|
#2
COVER, SM-DBL SEAT
2A3-24771-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#3
HINGE, SEAT
353-24726-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#4
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIN
1K8-24774-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STOPPER
374-24768-00-00
|
$3.85 | ||
|
Unavailable |
|||
|
#8
BRACKET, SEAT
278-24728-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#9
SEAT LOCK ASSEMBLY (2A3-24705-0
1K8-24705-00-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PAD, SEAT
1L9-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOOK, HELMET
341-24818-02-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
