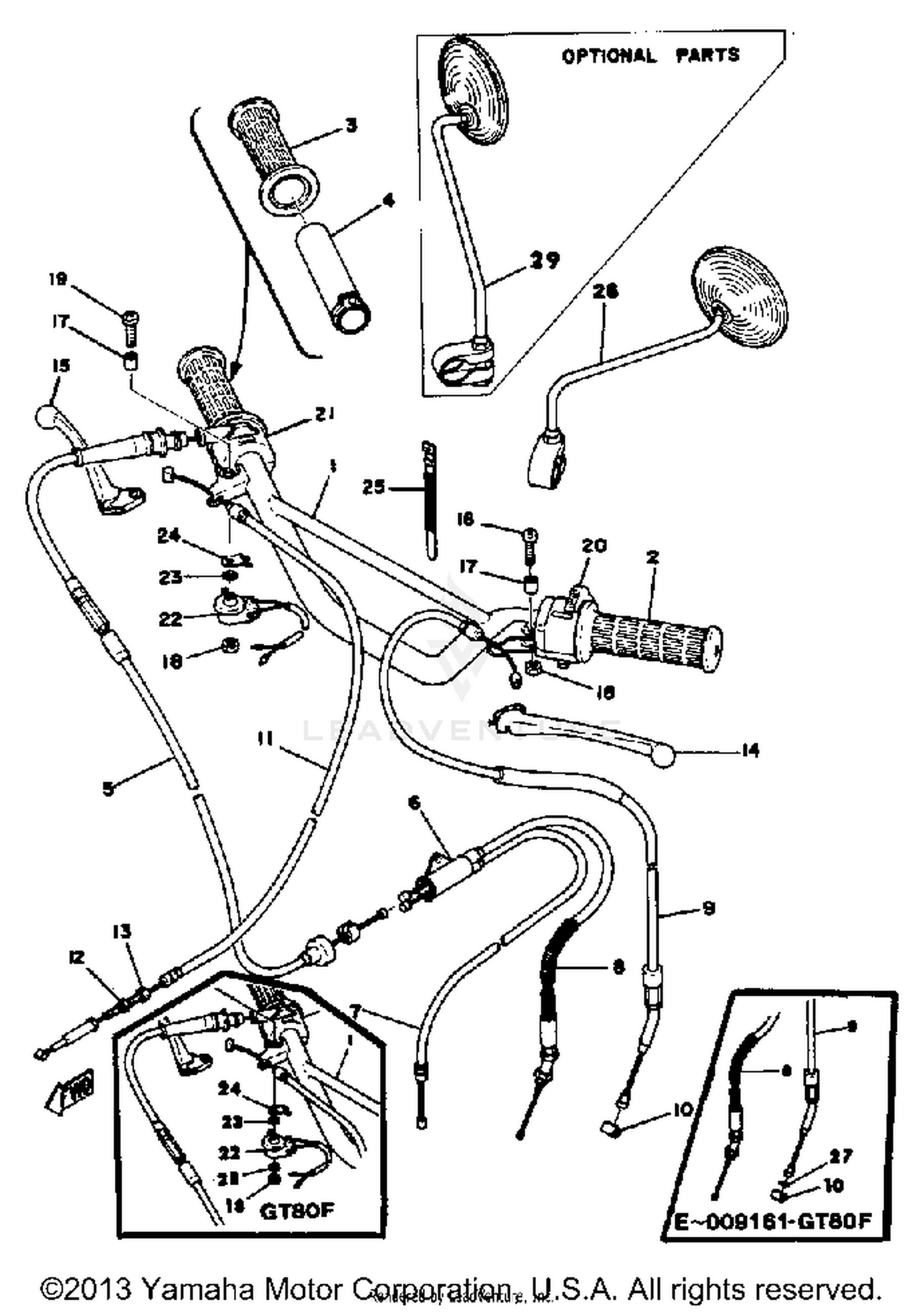

Handlebar - Cable Gt80e - Gt80e-009161 - Gt80f Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
367-26111-03-00
|
$96.99 | ||
|
Unavailable |
|||
|
#2
GRIP (L.H.)
462-26241-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#3
GRIP (R.H.)
462-26242-00-00
|
$17.99 | ||
|
Unavailable |
|||
|
#4
TUBE, THROTTLE GUIDE
434-26243-12-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CABLE, THROTTLE 1
367-26311-02-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNECTOR, CABLE
4U1-26261-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE, THROTTLE 2
367-26312-01-00
Superseded by 336-26312-00-00
|
$4.70 | ||
|
Unavailable |
|||
|
#8
CABLE, PUMP
367-26321-02-00
|
$35.99 | ||
|
Unavailable |
|||
|
#9
CABLE, CLUTCH
367-26335-02-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
END, CABLE
164-26363-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE, BRAKE
367-26341-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, SPEC''L SHAPE
90179-06143-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90123-06011-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
LEVER L
137-83912-02-38
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LEVER R
2N3-83922-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98501-05018-00
Superseded by 98507-05018-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
COLLAR
90387-05383-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT, U
95601-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW,PAN HEAD
90157-05006-00
Superseded by 90157-05055-00
|
$1.70 | ||
|
Unavailable |
|||
|
#20
SWITCH, HANDLE 3
393-83973-02-00
|
$34.30 | ||
|
Unavailable |
|||
|
#21
SWITCH, HANDLE 1
462-83976-01-00
|
$48.99 | ||
|
Unavailable |
|||
|
#22
STOP SWITCH ASSEMBLY
232-83980-30-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-05027-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRKT, FRT STOP SWCH
338-83983-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#25
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
MIRROR ASS''Y (LEFT)
374-26290-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-05027-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
MIRROR ASS''Y (LEFT)
374-26290-00-00
|
$48.99 | ||
|
Unavailable |
|||
