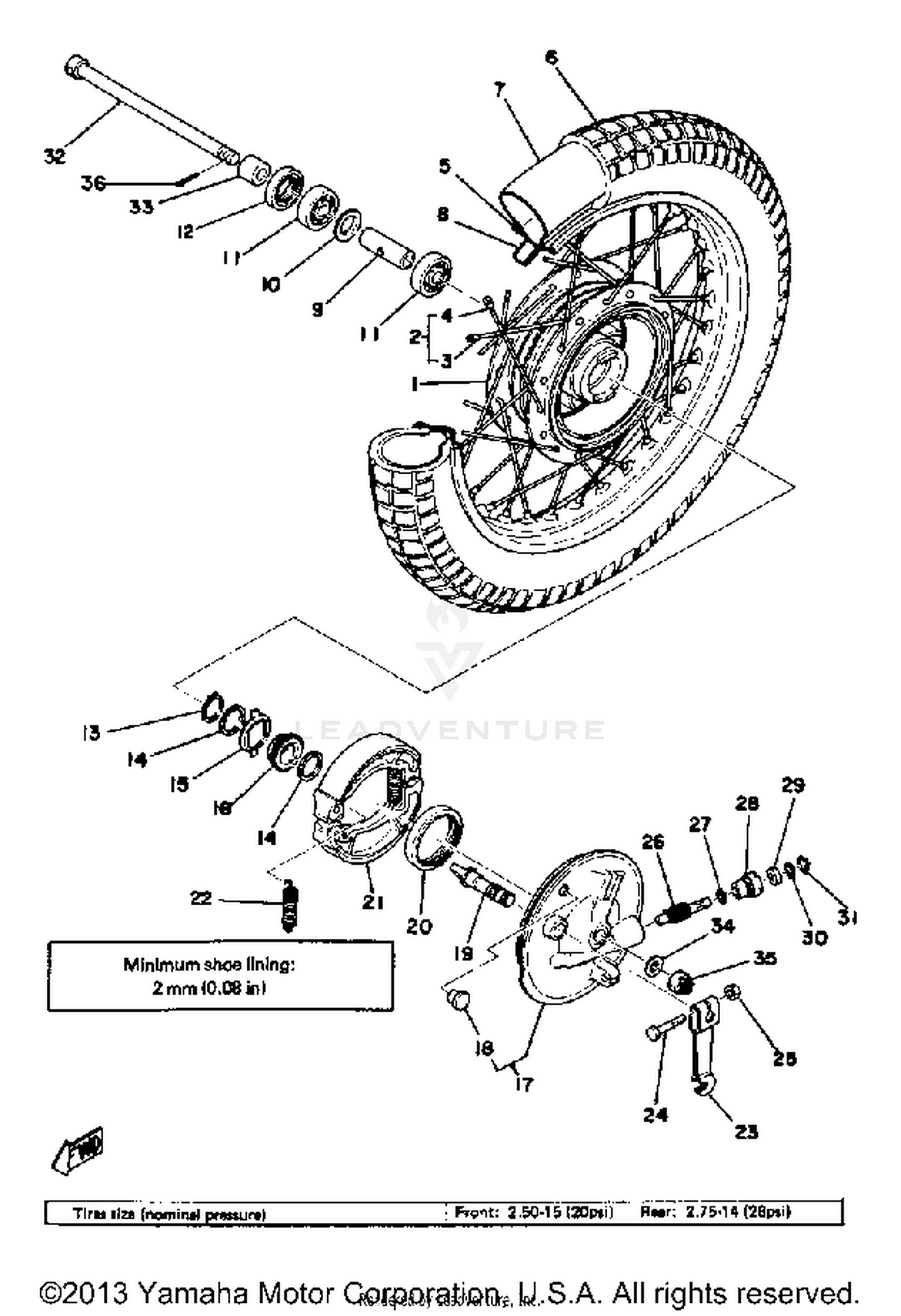

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
367-25111-00-Y8
|
$52.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
288-25104-01-00
|
$51.99 | ||
|
Unavailable |
|||
|
#3
SPOKE SET, INNER 1
288-25196-90-00
|
$5.64 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 1
288-25197-90-00
|
$4.84 | ||
|
Unavailable |
|||
|
#5
RIM 1.40X15
94414-15058-00
|
$134.99 | ||
|
Unavailable |
|||
|
#6
250-15 IRC TRIALS
94125-15478-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
TUBE 250X15
94225-15103-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, RIM (130/90-15)
94313-15154-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER, BEARING
90560-10303-00
|
$13.49 | ||
|
Unavailable |
|||
|
#10
FLANGE, SPACER 2
2E9-25116-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (B6300Z)
93306-30003-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93102-20009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-20269-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLUTCH, METER
183-25149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, DRIVE
2F4-25135-00-00
|
$8.68 | ||
|
Unavailable |
|||
|
#17
PLATE, BRAKE SHOE
1K8-25016-00-Y8
Superseded by 1K8-25121-00-35
|
$78.99 | ||
|
Unavailable |
|||
|
#18
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRAKE SHOE KIT
10X-W2536-00-00
Superseded by 2JL-W253E-20-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TENSION
90506-16150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
LEVER, CAMSHAFT 1
538-25155-00-00
|
$34.99 | ||
|
Unavailable |
|||
|
#24
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, METER
2F4-25138-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
OIL SEAL
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
RING, STOP
102-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
AXLE, WHEEL (353-25181-03-00)
99999-02188-00
|
$38.99 | ||
|
Unavailable |
|||
|
#33
COLLAR
90387-10077-00
|
$5.99 | ||
|
Unavailable |
|||
|
#34
WASHER, PLATE
92990-10600-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, CASTLE
90171-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
