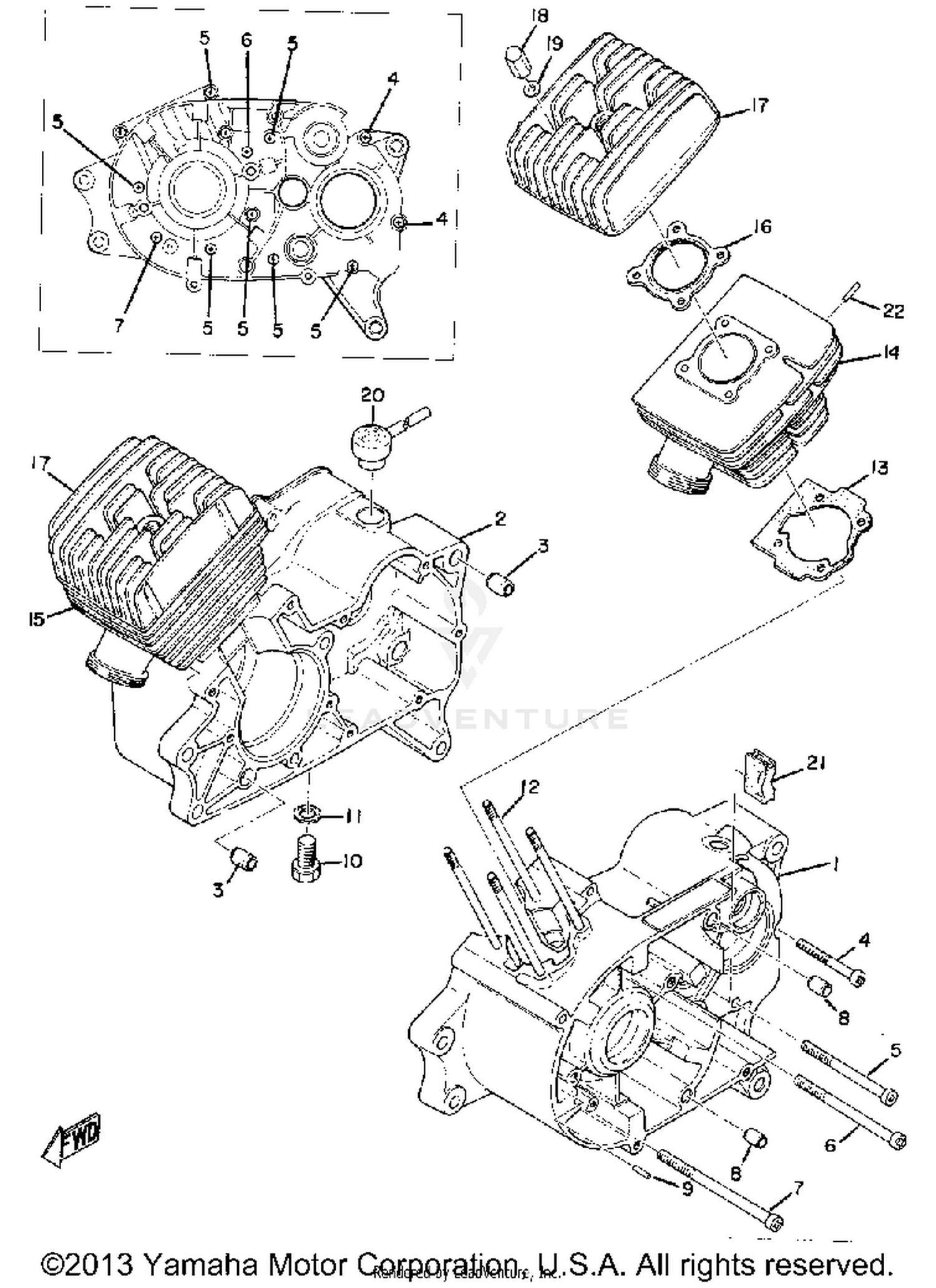

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
241-15111-00-00
|
$80.56 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
241-15121-01-00
|
$47.53 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW,PANHEAD
98580-06055-00
Superseded by 98580-06555-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98501-06070-00
Superseded by 98580-06570-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-06580-00
|
$5.49 | ||
|
Unavailable |
|||
|
#8
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
93603-14026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, STUD
90116-06026-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET,CYLINDER
195-11351-00-00
Superseded by 195-11351-10-00
|
$6.99 | ||
|
Unavailable |
|||
|
#14
CYLINDER 1
241-11311-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#15
CYLINDER 2
241-11321-00-00
|
$75.99 | ||
|
Unavailable |
|||
|
#16
GASKET, CYLINDER HEAD 1
134-11181-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
HEAD, CYLINDER 1
132-11111-01-00
|
$41.99 | ||
|
Unavailable |
|||
|
#18
NUT, CROWN
90176-06002-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
BREATHER
206-15371-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#21
GROMMET
241-15357-01-00
|
$2.65 | ||
|
Unavailable |
|||
|
#22
PIN, DOWEL
93602-10061-00
|
$2.20 | ||
|
Unavailable |
|||
