1970 Yamaha HS1 Tail Lamp (hs1-b) OEM Parts

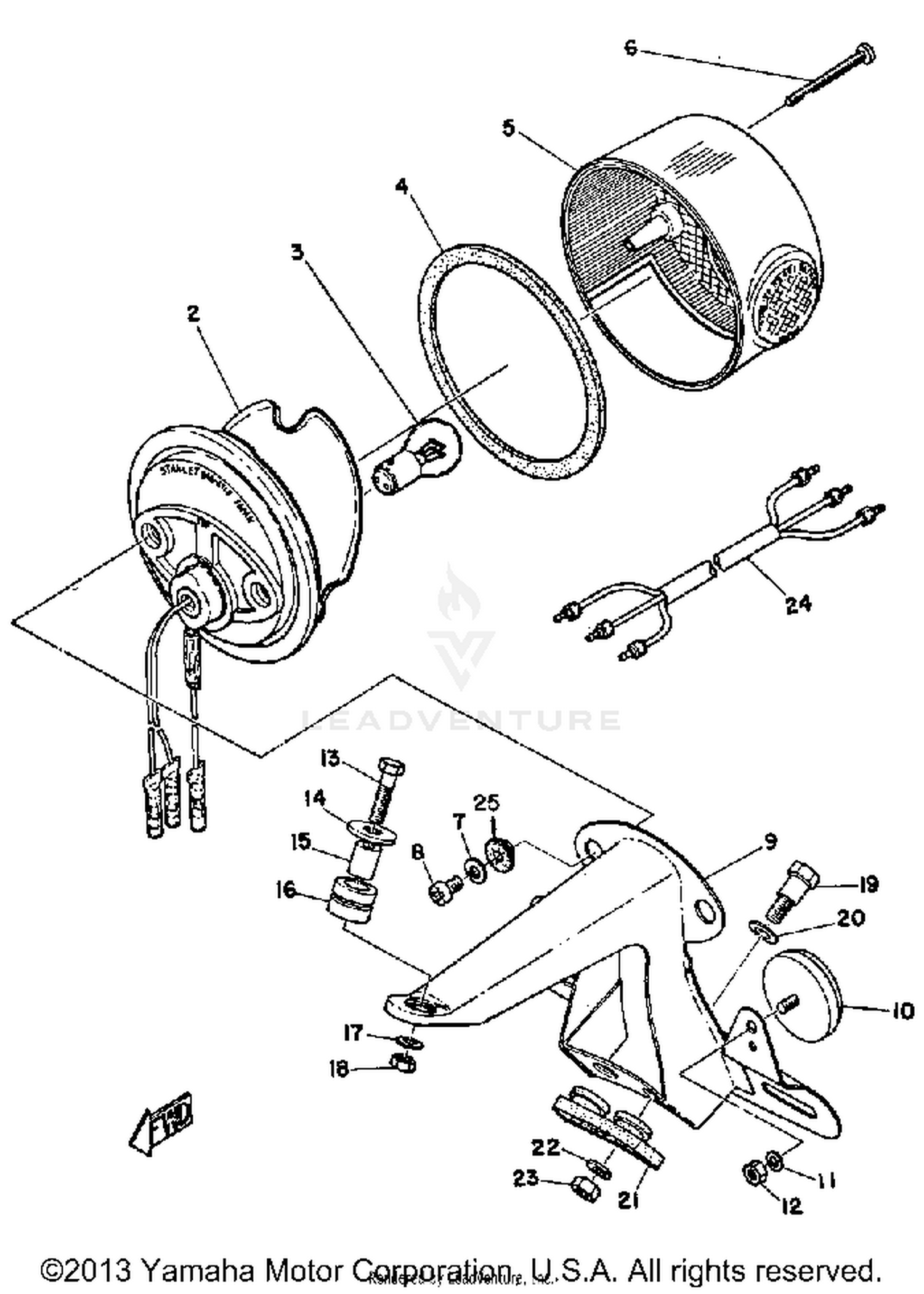

Tail Lamp (hs1-b) Diagram

Item	MSRP	Qty
#1 TAILLIGHT UNIT ASSEMBLY 256-84710-61-00	$74.66
Unavailable
#2 BASE, TAILLIGHT 275-84511-61-00	$28.99
Unavailable
#3 BULB (12V-21/5W) 256-84714-61-00	$11.49
Available to order. Add to View Price
#4 GASKET, LENS 275-84523-60-00	$9.20
Unavailable
#5 LENS, TAILLIGHT 275-84521-60-00	$15.18
Unavailable
#6 SCREW, PAN HEAD 98501-04050-00 Superseded by 98507-04050-00	$2.85
Available to order. Add to View Price
#7 SCREW 479-84526-00-00	$3.95
Unavailable
#8 WASHER, SPECIAL 2H7-84754-00-00	$10.49
Available to order. Add to View Price
#9 BRACKET, LICENSE 341-84751-61-93	$76.99
Unavailable
#10 REFLECTOR, FRONT 1 278-85111-00-00	$7.68
Unavailable
#11 WASHER, SPRING 92990-05100-00	$0.30
Available to order. Add to View Price
#12 NUT 95380-05600-00	$7.49
Available to order. Add to View Price
#13 BOLT 97011-06025-00 Superseded by 97017-06025-00	$4.00
Available to order. Add to View Price
#14 WASHER 90209-06095-00 Superseded by 90209-06012-00	$4.85
Available to order. Add to View Price
#15 COLLAR 90387-065L7-00 Superseded by 90387-06026-00	$7.49
Available to order. Add to View Price
#16 GROMMET 90480-14023-00	$6.49
Available to order. Add to View Price
#17 WASHER, SPRING 92995-06100-00	$3.20
Available to order. Add to View Price
#18 NUT, HEXAGON 95380-06600-00	$4.45
Available to order. Add to View Price
#19 BOLT 90109-06017-00	$9.49
Available to order. Add to View Price
#20 WASHER, PLAIN 92990-08200-00	$2.45
Available to order. Add to View Price
#21 DAMPER 214-84553-01-00	$7.49
Available to order. Add to View Price
#22 WASHER, SPRING 92995-06100-00	$3.20
Unavailable
#23 NUT, HEXAGON 95380-06600-00	$4.45
Unavailable
#24 CORD, TAILLIGHT 287-84717-60-00	$1.94
Unavailable
#25 DAMPER 275-84527-60-00	$6.68
Unavailable
