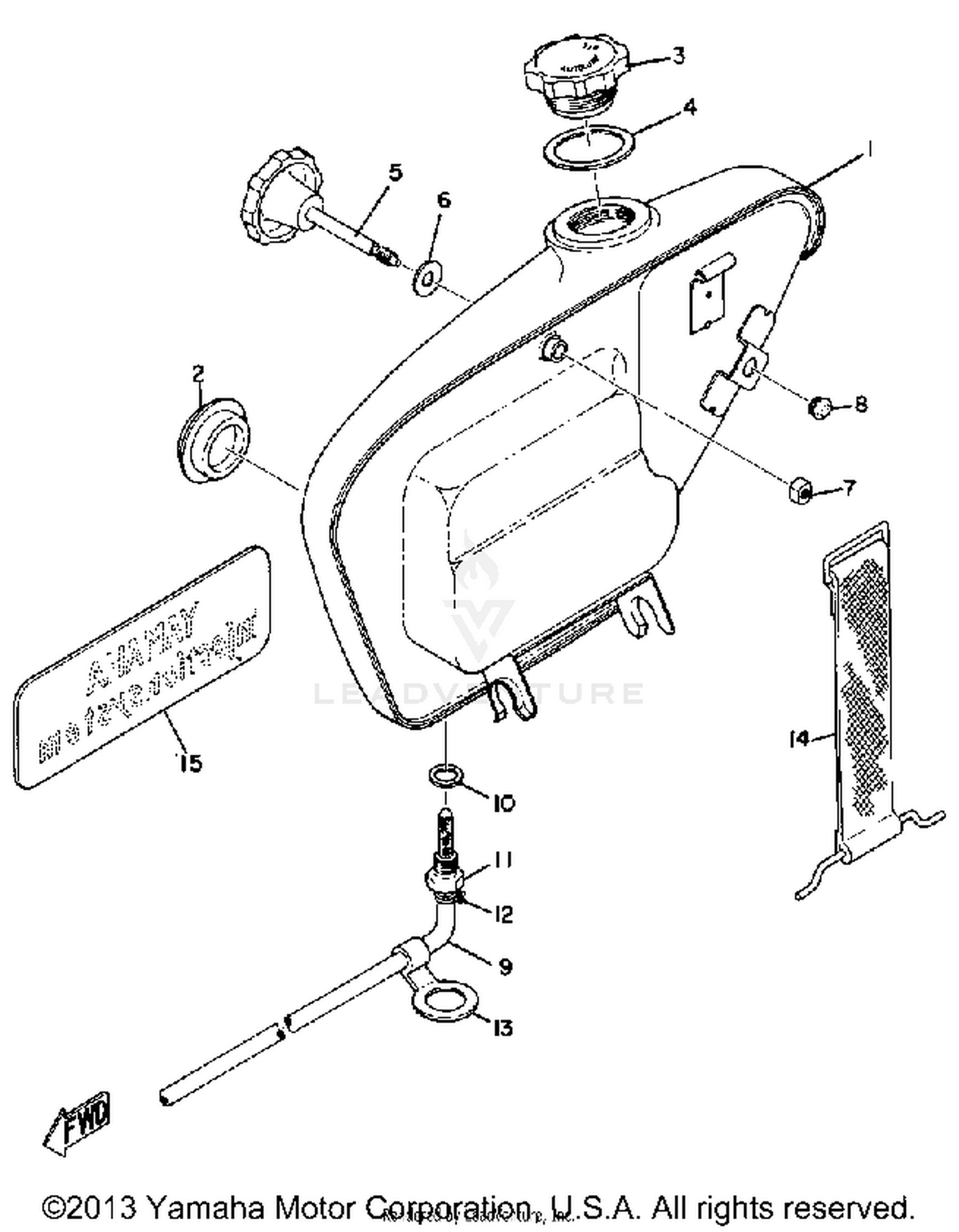

Oil Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL TANK ASSEMBLY
241-21705-00-65
|
$34.99 | ||
|
Unavailable |
|||
|
#
OIL TANK ASSEMBLY
241-21705-00-01
|
$32.99 | ||
|
Unavailable |
|||
|
#2
GAUGE, LEVEL
214-21761-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL TANK CAP ASSEMBLY
183-21770-12-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-29114-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
KNOB, SIDE COVER 1
183-21714-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#6
WASHER, PLATE (122-21725-00)
90202-07015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER, LOCATING 1
137-21778-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#9
PIPE, FUEL 1
132-24319-01-00
Superseded by 3YR-24312-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-10029-00
|
$0.85 | ||
|
Unavailable |
|||
|
#11
SCREW, UNION
137-21768-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
CLIP
90467-08003-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-09007-00
|
$0.70 | ||
|
Unavailable |
|||
|
#14
BAND, TANK FITTING
174-21776-00-00
|
$1.78 | ||
|
Unavailable |
|||
|
#15
EMBLEM 2
117-21782-00-00
|
$0.76 | ||
|
Unavailable |
|||
