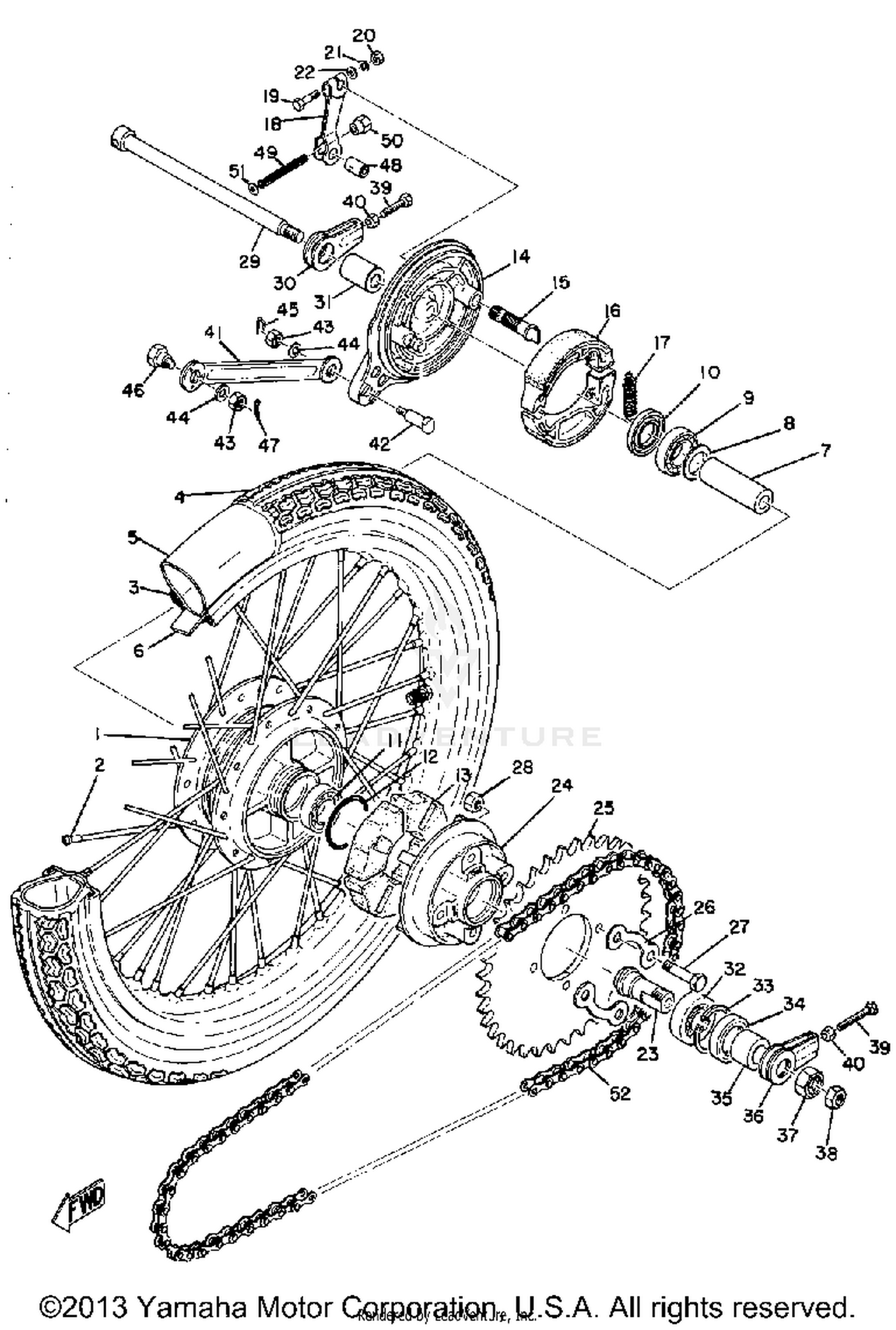

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CHAIN(DID 420M)
94680-52001-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#
HUB, REAR
132-25311-00-38
|
$59.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR
164-25304-00-00
|
$21.34 | ||
|
Unavailable |
|||
|
#3
RIM (1.40-18)
94414-18007-00
Superseded by 94414-18545-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
TIRE REAR (164)
94125-18351-00
|
$16.99 | ||
|
Unavailable |
|||
|
#5
TUBE (2.50-18)
94225-18194-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
90560-12145-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30101-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
OIL SEAL, SO-TYPE
93104-21016-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
93210-41041-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER
304-25364-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRAKE SHOE PLT ASSEMBLY
339-25320-10-00
|
$44.99 | ||
|
Unavailable |
|||
|
#15
CAMSHAFT
122-25351-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE SHOE KIT
296-W2536-00-00
Superseded by 4KN-W253E-11-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, TENSION
90506-16150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, CAMSHAFT
122-25355-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
97313-06030-00
Superseded by 97013-06030-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
AXLE, SPROCKET
167-25387-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLUTCH, HUB
296-25366-01-98
Superseded by 296-25366-01-33
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPROCKET, DRIVN 40T
122-25440-11-33
|
$29.99 | ||
|
Unavailable |
|||
|
#26
WASHER
102-25412-00-00
Superseded by 4AW-25412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT
90101-08672-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#29
AXLE, WHEEL
241-25381-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#30
PULLER, CHAIN 2
241-25389-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-12102-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BEARING
93306-00406-00
Superseded by 93306-00438-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CIRCLIP
99009-42500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
OIL SEAL
93106-30004-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
COLLAR
90387-18144-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PULLER, CHAIN 1
241-25388-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT
90170-18165-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, PLAIN
92990-10200-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
90101-06016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
NUT
95380-06700-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BAR, TENSION
27L-25371-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
90109-08183-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT
90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Unavailable |
|||
|
#52
420-106L (94504-20106)
94580-52106-00
|
$22.99 | ||
|
Unavailable |
|||
