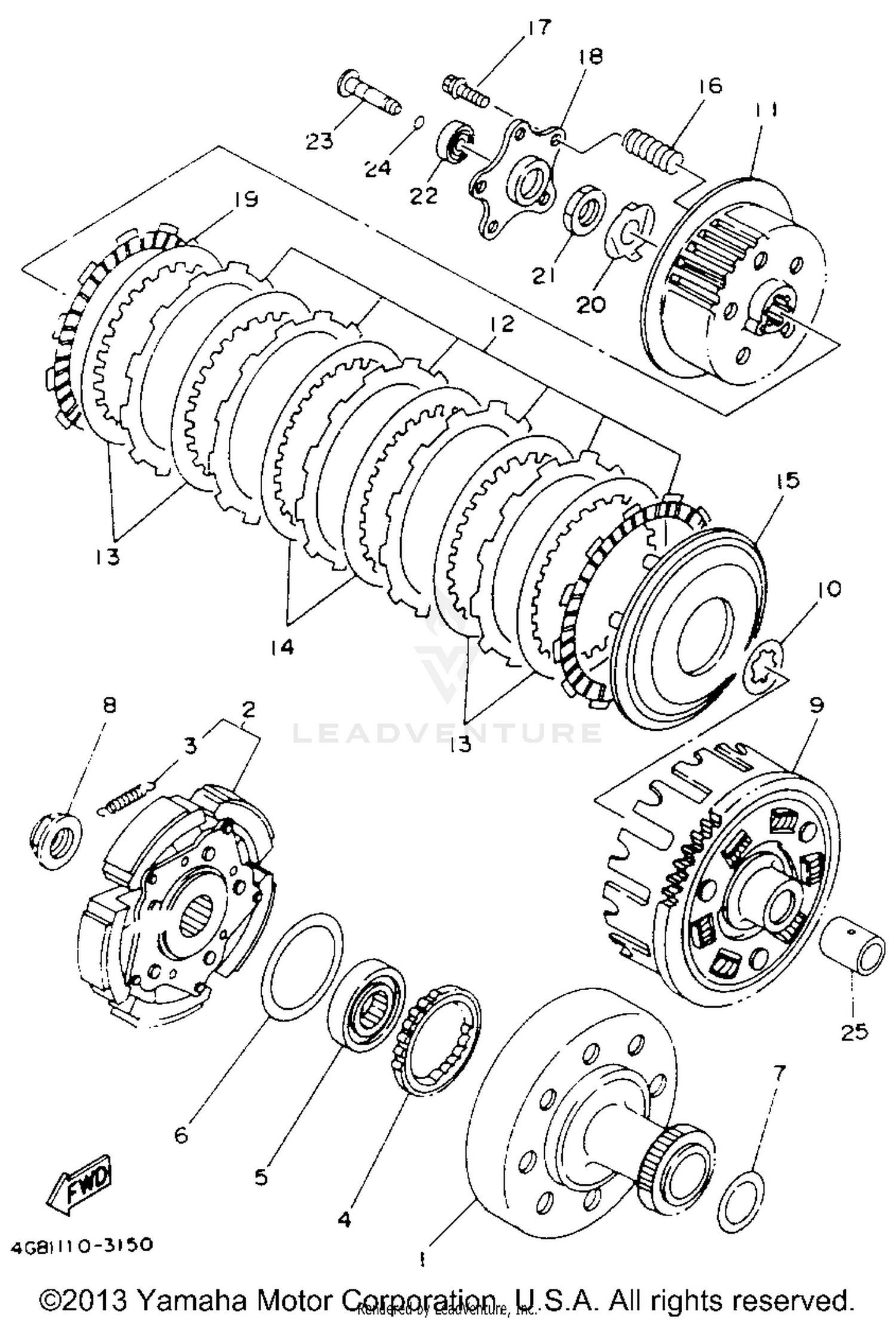

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOUSING,CLUTCH
4GB-16611-00-00
Superseded by 4GB-16611-01-00
|
$237.99 | ||
|
Unavailable |
|||
|
#2
CLUTCH CARRIER ASSEMBLY
4GB-16620-00-00
Superseded by 4GB-16620-02-00
|
$364.99 | ||
|
Unavailable |
|||
|
#3
SPRING, CLUTCH WEIGH
4GB-16626-00-00
Superseded by 4GB-16626-01-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING, ONE WAY
1YW-16664-00-00
|
$116.99 | ||
|
Unavailable |
|||
|
#5
RETAINER, BEARING
4GB-16665-00-00
Superseded by 4KB-16665-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-574L1-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-301P3-00
Superseded by 90201-30008-00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90179-22640-00
Superseded by 90179-22005-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PRIMARY DRIVEN GEAR COMP.(76T)
1YW-16150-01-00
Superseded by 2NL-16150-00-00
|
$307.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, THRUST 1
30X-16154-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOSS, CLUTCH
1UY-16371-01-00
Superseded by 1UY-16371-02-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, FRICTION 2
5Y1-16331-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, CLUTCH 2
4H7-16325-00-00
Superseded by 168-16325-10-00
|
$14.49 | ||
|
Unavailable |
|||
|
#14
PLATE, CLUTCH 1
3J2-16324-00-00
Superseded by 3J2-16324-10-00
|
$10.99 | ||
|
Unavailable |
|||
|
#15
PLATE, PRESSURE 1
1UY-16351-00-00
|
$113.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, COMPRESSION
90501-23763-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, WITH WASHER
90159-06123-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE, PRESSURE 2
1UY-16352-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE, FRICTION
31A-16321-00-00
Superseded by 4H7-16321-02-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, LOCK
90215-16258-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90170-16326-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING
93306-00004-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, PUSH
4GB-16358-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
O-RING
93210-06632-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPACER 1
1YW-16181-00-00
|
$40.99 | ||
|
Unavailable |
|||
