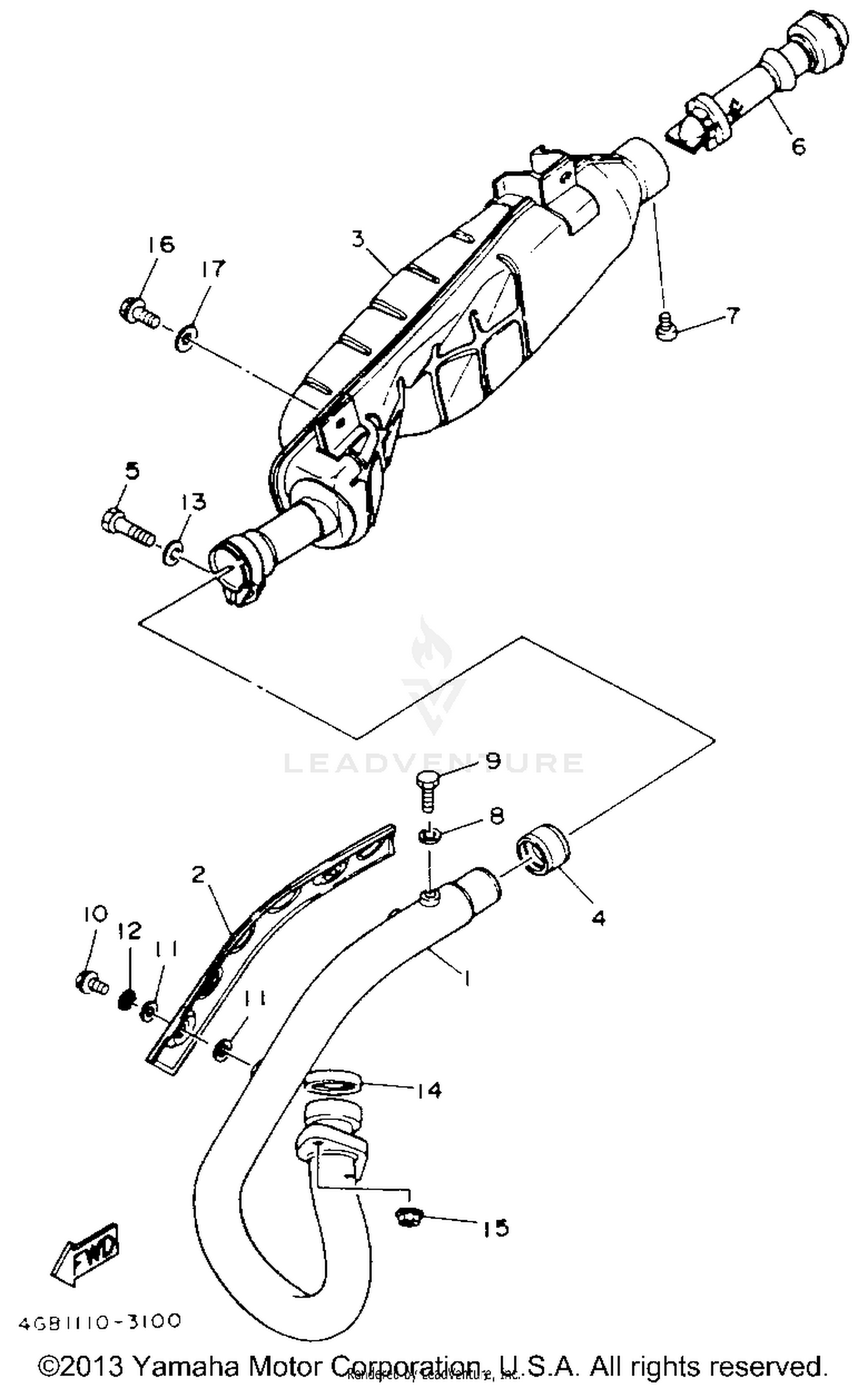

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST 1
4GB-14611-00-00
Superseded by 4GB-14611-04-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PROTECTOR, EXHAUST PIPE
1YW-14628-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
MUFFLER 1
2HR-14711-00-00
Superseded by 2HR-14711-03-00
|
$298.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET, MUFFLER
3YF-14714-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
97016-08025-00
Superseded by 97017-08025-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE, OUTLET
59V-14752-00-00
|
$153.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92906-06600-00
Superseded by 92907-06600-00
|
$2.66 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
90101-06576-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95026-06010-00
Superseded by 95027-06010-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PROTECTOR
4BD-14766-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, WAVE
90206-06090-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-086J0-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, EXHAUST PIPE
3GD-14613-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
90179-06499-00
Superseded by 90179-06500-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,FLANGE (JN5)
95811-08016-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-08326-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
