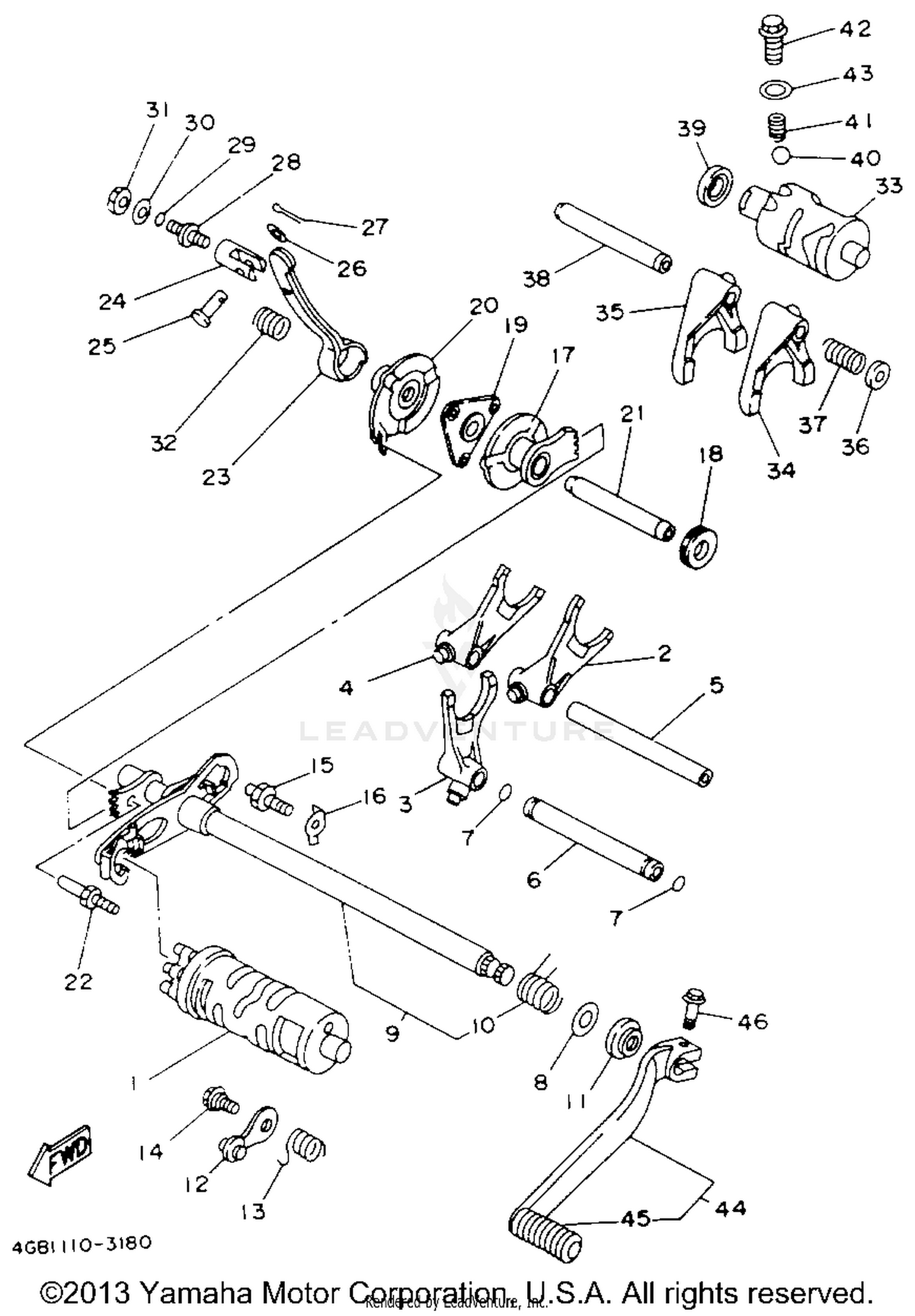

Shift Cam Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT CAM ASSEMBLY
4GB-18540-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FORK, SHIFT 1
4GB-18511-00-00
|
$65.99 | ||
|
Unavailable |
|||
|
#3
FORK, SHIFT 2
4GB-18512-00-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FORK, SHIFT 3
4GB-18513-00-00
|
$68.99 | ||
|
Unavailable |
|||
|
#5
BAR, SHIFT FORK GUIDE 2
4GB-18535-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BAR, SHIFT FORK GUIDE 1
4GB-18531-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-07590-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-144J2-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHIFT SHAFT ASSY
1YW-18101-01-00
Superseded by 1YW-18101-02-00
|
$145.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TORSION
90508-32711-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-14209-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STOPPER LEVER ASSY
1UY-18140-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TORSION
90508-25712-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-063F7-00
Superseded by 90109-06190-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, SCREW
4G0-18127-00-00
Superseded by 5VK-18127-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, LOCK
90215-08260-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GUIDE SHIFT COMP. 2
1YW-18106-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BEARING
93342-21212-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOLDER, PAWL
1YW-18181-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GUIDE SHIFT COMP.
1YW-18104-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#21
SHAFT, SHIFTER
1YW-18318-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#22
STOPPER, SCREW
1YW-18127-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#23
ARM, SHIFT 3
2VA-1817A-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#24
PIN, LEVER
21V-18126-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, JOINT
21V-18118-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#26
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#28
STOPPER, SCREW
21V-18127-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-07590-00
|
$6.99 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90201-08649-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT
95316-08700-00
Superseded by 95317-08700-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPRING, COMPRESSION
90501-162E4-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CAM, SHIFT 2
2HR-18546-06-00
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
FORK, SHIFT 1
2HR-18311-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#35
FORK, SHIFT 2
1YW-18312-00-00
|
$58.99 | ||
|
Unavailable |
|||
|
#36
CAP, SPRING
2HR-18323-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
SPRING, COMPRESSION
90501-147E8-00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#38
BAR, SHIFT FORK GUIDE 2
5Y1-18535-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#39
OIL SEAL
93102-15212-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BALL
93503-08007-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPRING, COMPRESSION
90501-10353-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT, FLANGE
90105-14367-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
GASKET
90430-14194-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
SHIFT PEDAL ASSY
2HR-18110-00-00
Superseded by 2HR-18110-01-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT
97016-06020-00
Superseded by 97017-06020-00
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
