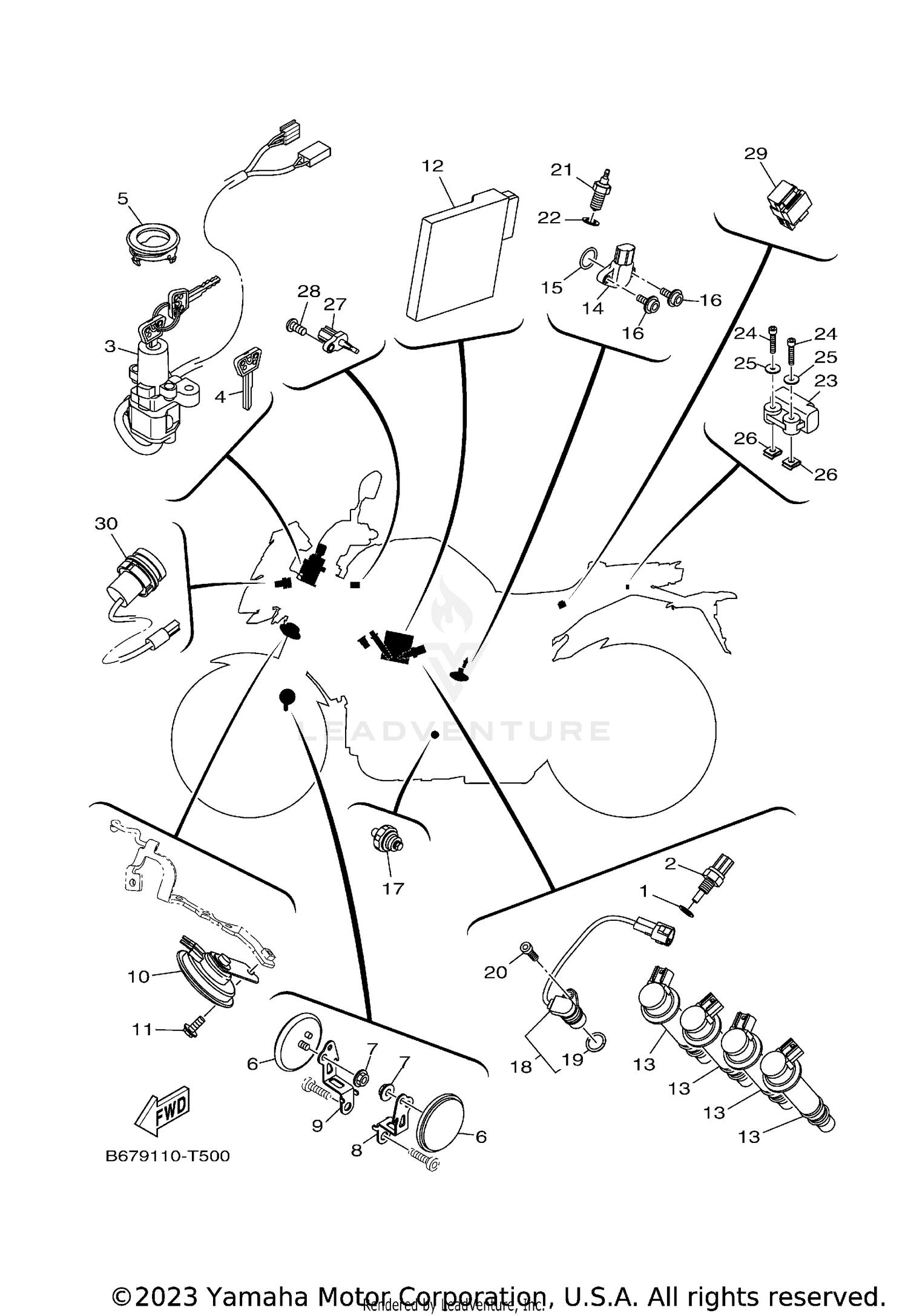

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET
90430-10004-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
THERMO UNIT
4P9-83591-00-00
Superseded by 52B-H3591-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
MAIN SWITCH STEERING LOCK
B67-82501-10-00
Superseded by B67-82501-11-00
|
$150.99 | ||
|
Unavailable |
|||
|
#4
BLANK KEY
4BH-82511-09-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAP, SWITCH
36P-82552-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
REFLECTOR, FRONT 1
4AG-85111-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT, WITH WASHER
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET, REFLECTOR 1
2CR-85112-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, REFLECTOR 2
2CR-85122-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HORN
B67-83371-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE
95812-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
ENGINE CONTROL UNIT
B67-8591A-50-00
Superseded by B67-8591A-51-00
|
$1,826.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
IGNITION COIL ASSY
B67-82310-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SENSOR, GEAR POSITION
2CR-85899-10-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93210-17008-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, HEXAGON SOCKET HEAD
90110-05067-00
Superseded by 90110-05038-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL PRESSURE SWITCH ASSY
1WS-82504-00-00
Superseded by 1WS-82504-01-00
|
$67.99 | ||
|
Unavailable |
|||
|
#18
SENSOR, CAM POSITION
5VY-85896-01-00
Superseded by 5VY-85896-02-00
|
$137.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
4D9-81168-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
90110-06175-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#21
NEUTRAL SWITCH ASSY
3GB-82540-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
90430-10148-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
SENSOR, LEAN ANGLE
5PS-82576-01-00
Superseded by 5PS-82576-02-00
|
$84.99 | ||
|
Unavailable |
|||
|
#24
BOLT, HEXAGON SOCKET HEAD
91312-04025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-04030-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, spring
90183-04039-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SENSOR, AIR TEMPERATURE
5YU-85886-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, TAPPING
97702-50516-00
Superseded by 97780-50116-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
RELAY ASSY (G8HN-1C4T-DJ-Y52)
5DM-81950-00-00
Superseded by 5DM-81950-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
TERMINAL COMP.
B67-8254B-01-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
