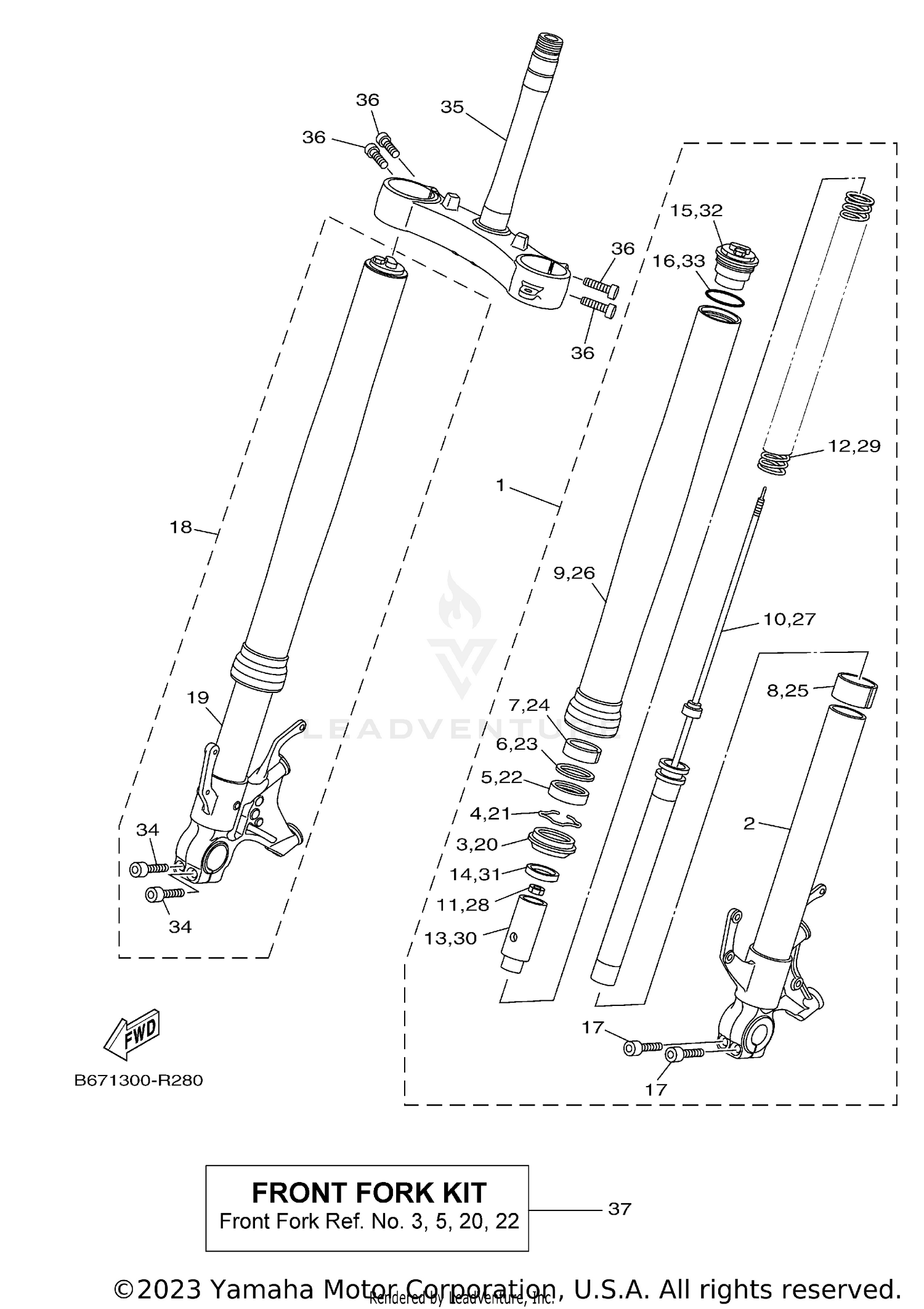

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L
B67-23102-10-00
Superseded by B67-23102-11-00
|
$1,435.99 | ||
|
Unavailable |
|||
|
#2
INNER TUBE COMP. 1
2CR-23110-00-00
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, DUST
4PU-23144-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
4PU-23145-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, OIL SEAL
5PW-23146-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
METAL, SLIDE 1
2CR-23125-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PISTON, FRONT FORK
2CR-23171-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
TUBE, OUTER 2
2CR-23136-10-00
|
$331.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CYLINDER COMP., FRONT FORK
B67-23170-00-00
|
$301.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
3LC-23357-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, FRONT FORK
B67-23141-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
2CR-23118-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUIDE, SPRING
2CR-23117-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, CAP
2CR-23111-10-00
|
$286.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
O-RING
39P-23147-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
FRONT FORK ASSY (R
B67-23103-10-00
Superseded by B67-23103-11-00
|
$1,232.99 | ||
|
Unavailable |
|||
|
#19
INNER TUBE COMP. 2
2CR-23120-00-00
|
$369.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL, DUST
4PU-23144-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#21
RING, SNAP
4V4-23153-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
4PU-23145-01-00
|
$24.99 | ||
|
Unavailable |
|||
|
#23
WASHER, OIL SEAL
5PW-23146-00-00
|
$17.49 | ||
|
Unavailable |
|||
|
#24
METAL, SLIDE 1
2CR-23125-00-00
|
$11.49 | ||
|
Unavailable |
|||
|
#25
PISTON, FRONT FORK
2CR-23171-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#26
TUBE, OUTER 2
2CR-23136-10-00
|
$331.99 | ||
|
Unavailable |
|||
|
#27
CYLINDER COMP., FRONT FORK
B67-23170-00-00
|
$301.99 | ||
|
Unavailable |
|||
|
#28
NUT
3LC-23357-00-00
|
$6.49 | ||
|
Unavailable |
|||
|
#29
SPRING, FRONT FORK
B67-23141-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#30
SPACER
2CR-23118-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#31
GUIDE, SPRING
2CR-23117-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#32
BOLT, CAP
2CR-23111-10-00
|
$286.99 | ||
|
Unavailable |
|||
|
#33
O-RING
39P-23147-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
91314-08040-00
|
$7.49 | ||
|
Unavailable |
|||
|
#35
UNDER BRACKET COMP.
B67-23340-00-00
|
$448.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, HEXAGON SOCKET HEAD
91314-08030-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
FORK SEAL KIT
4PU-W003B-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
