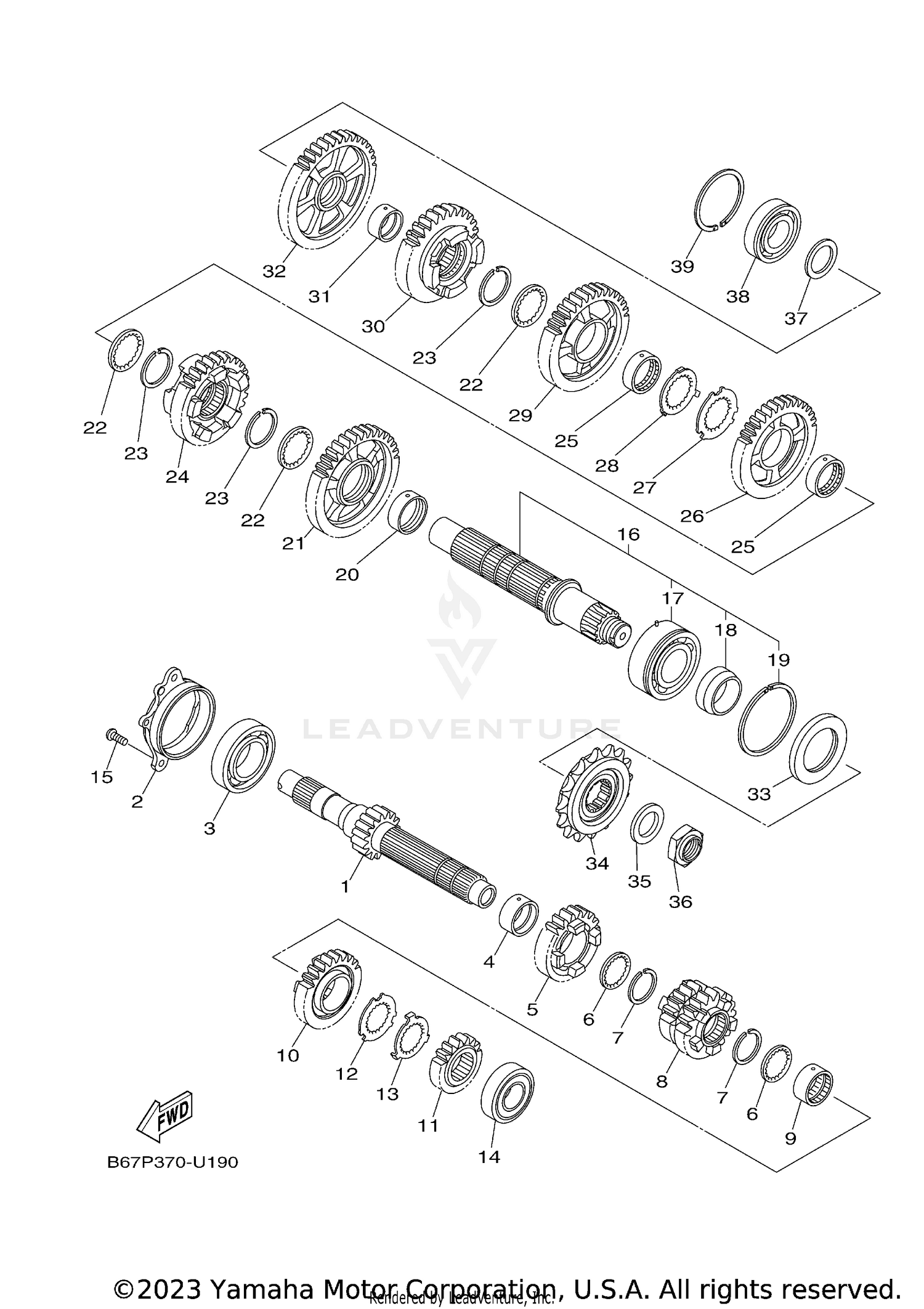

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
AXLE, MAIN (15T)
2CR-17411-00-00
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOUSING, BEARING 1
2CR-15163-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93306-20652-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-28003-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, 5TH PINION (21T)
2CR-17151-00-00
|
$111.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER
90209-25011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93440-28184-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
GEAR, 3RD PINION (19/19T)
2CR-17131-01-00
|
$355.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-25023-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
GEAR, 6TH PINION (24T)
2CR-17161-00-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GEAR, 2ND PINION (17T)
BW8-17121-00-00
Superseded by B3L-17121-00-00
|
$151.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, CLAW
90214-25004-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, CLAW
90214-25003-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93306-27214-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW
90149-06082-00
Superseded by 90149-06081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DRIVE AXLE ASSY
2CR-17402-00-00
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93305-20605-00
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-30012-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
93440-62032-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-31003-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GEAR, 2ND WHEEL (37T)
BW8-17221-00-00
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER
90209-28008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CIRCLIP
93440-31187-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
GEAR, 6TH WHEEL (30T)
2CR-17261-00-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR
90387-28004-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GEAR, 4TH WHEEL (30T)
2CR-17241-01-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, CLAW
90214-29002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, CLAW
90214-28002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GEAR, 3RD WHEEL (35T)
B67-17231-01-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
GEAR, 5TH WHEEL (29T)
2CR-17251-00-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
COLLAR
90387-25008-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
GEAR, 1ST WHEEL (39T)
B60-17211-00-00
|
$141.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
OIL SEAL
93102-40330-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SPROCKET, DRIVE (16T)
2CR-17460-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, CONICAL SPRING
90208-22002-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT
90179-22018-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, PLATE
90201-257H0-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BEARING
93306-205A2-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CIRCLIP
93440-52009-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
