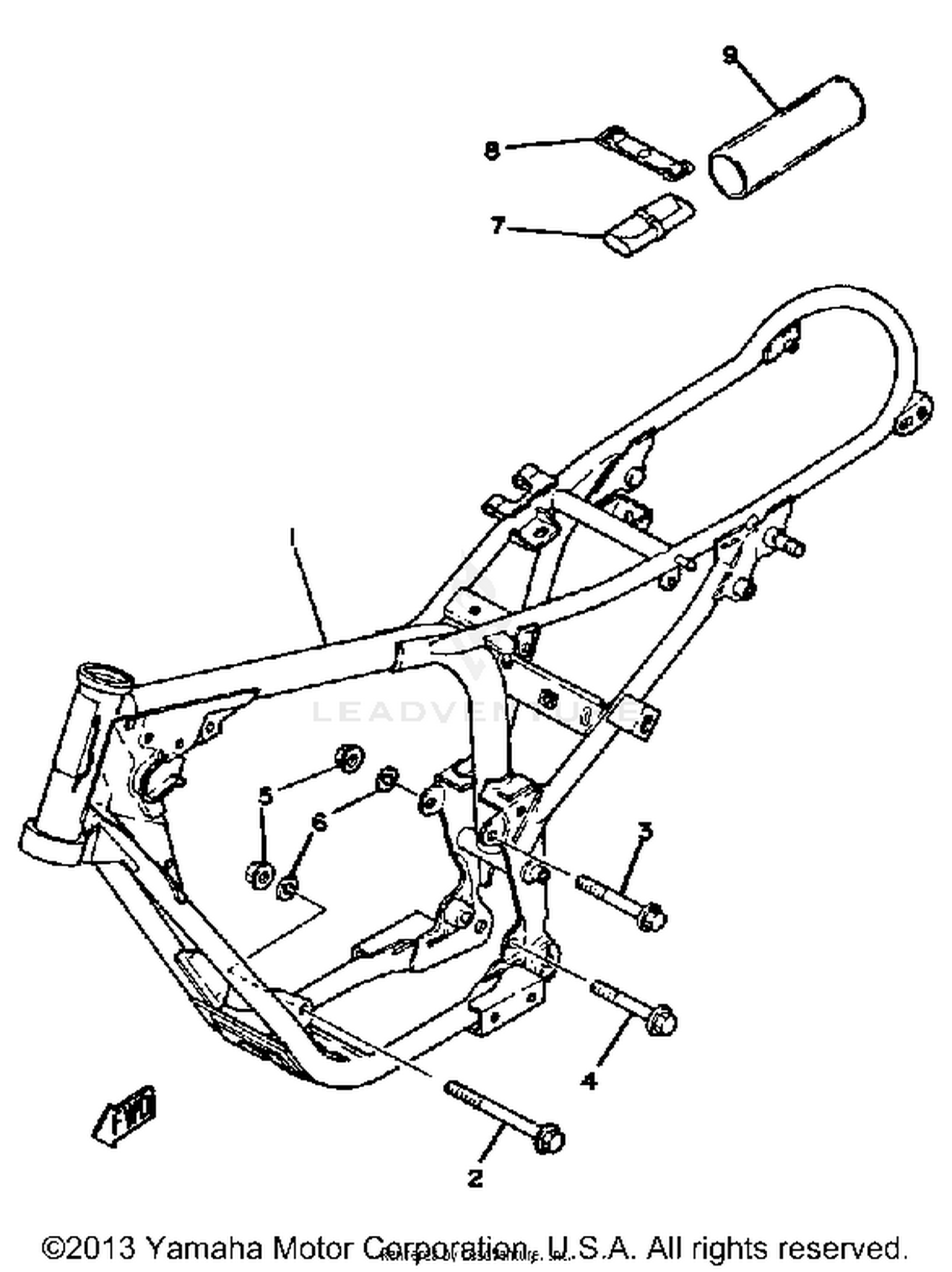

Frame - Tool Mx100h - J - K Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME
3T0-21110-00-33
|
$202.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
90105-08094-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WASHER BASED
90105-08095-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95811-10075-00
Superseded by 95817-10075-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, FLANGE
95701-08500-00
Superseded by 95704-08500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
TOOL KIT
353-W2810-00-00
Superseded by 353-W2810-01-00
|
$71.99 | ||
|
Unavailable |
|||
|
#8
BAND, TOOL
21V-21376-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, TOOL BOX
1T9-28171-00-00
|
$3.57 | ||
|
Unavailable |
|||
