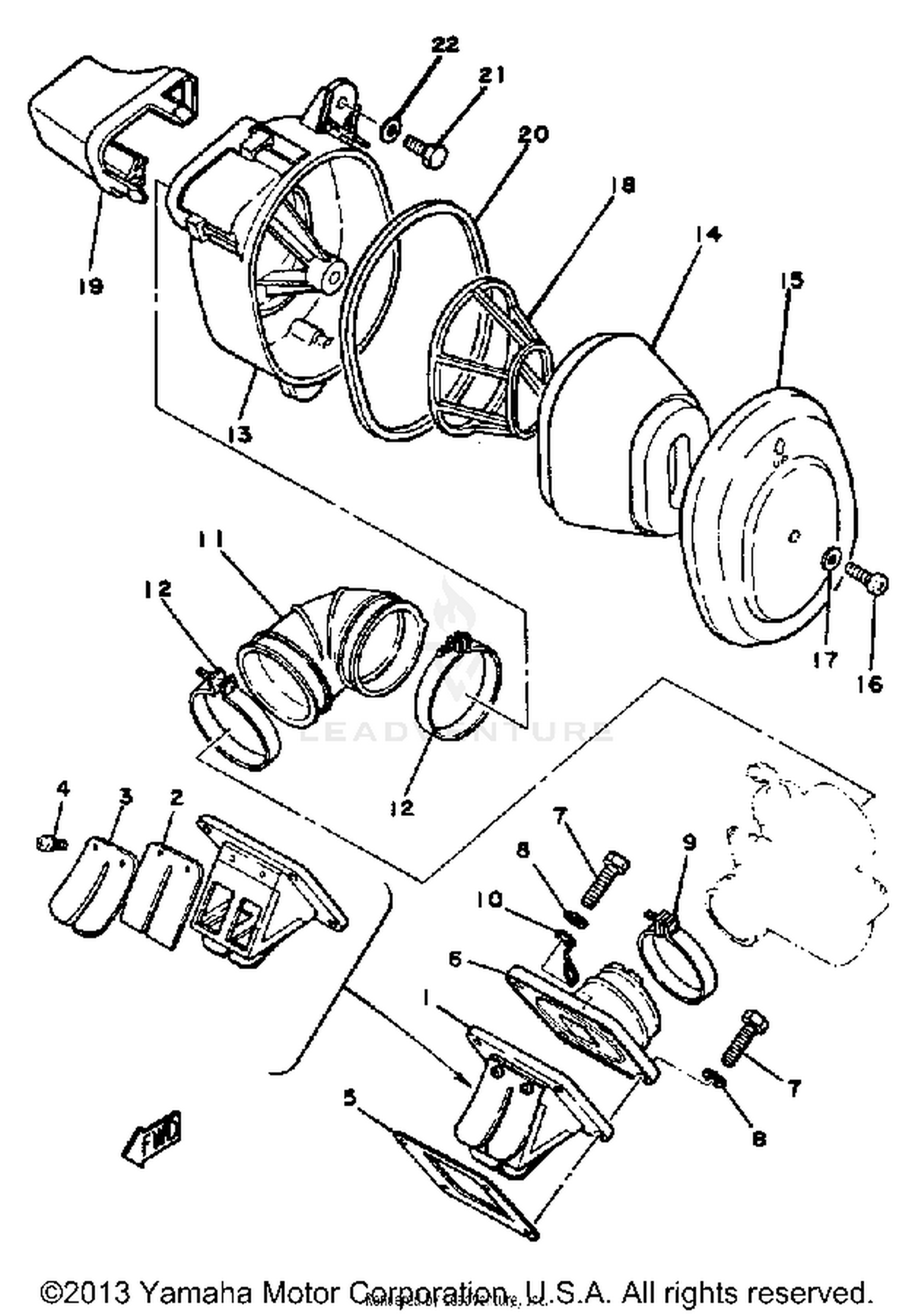

Intake Mx100h - J - K Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASY
558-13610-00-00
Superseded by 345-13610-20-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
REED, VALVE
345-13613-70-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
558-13616-00-00
Superseded by 345-13616-70-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, VALVE SEAT
87A-13621-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, CARBURETOR
560-13565-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, HOSE
90460-43053-00
Superseded by 90460-43179-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
UNAVAILABLE IN PRICE BOOK
90462-20029-00
|
$6.99 | ||
|
Unavailable |
|||
|
#11
JOINT, AIR CLNR 1
1T9-14453-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#12
CLAMP, HOSE
90460-51059-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CASE, AIR CLEANER 1
1T9-14411-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ELEMENT ASY
1T9-14450-00-00
Superseded by 1T9-14450-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, CLEANER CASE 1
1T9-14412-00-00
|
$22.99 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Unavailable |
|||
|
#18
GUIDE
1T9-14458-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#19
DUCT
1T9-14437-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL
3V6-14416-00-00
Superseded by 51Y-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
