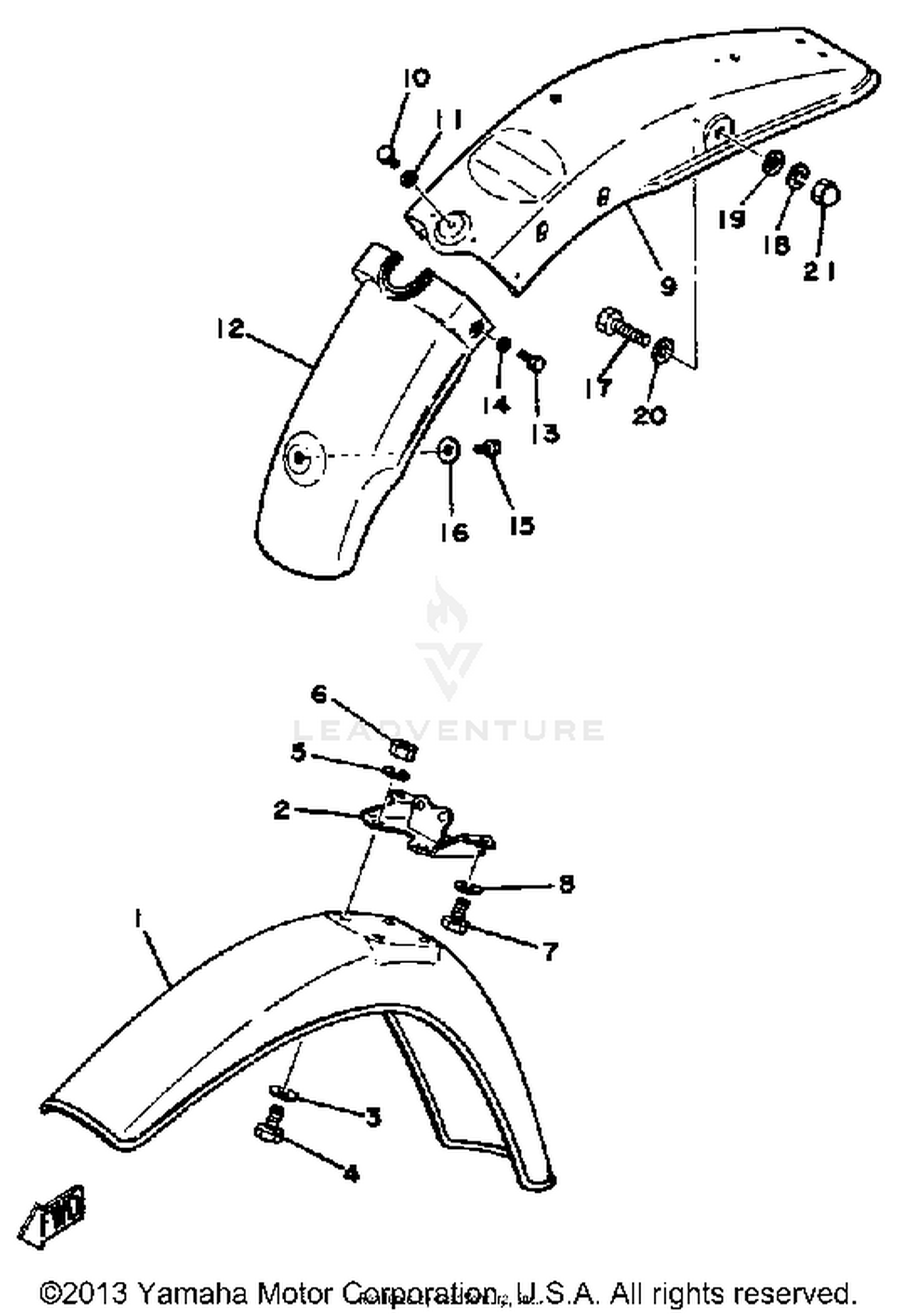

Front Fender - Rear Fender Mx100h - J - K Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
2E7-21511-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#
FENDER, FRONT
2M5-21511-10-00
|
$43.99 | ||
|
Unavailable |
|||
|
#2
STAY, FENDER 1
1T9-21513-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#3
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#9
FENDER, REAR
3M1-21611-00-36
|
$68.99 | ||
|
Unavailable |
|||
|
#
FENDER, REAR
3M1-21611-00-E1
|
$58.99 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
3M1-21611-10-E1
|
|||
|
Unavailable |
|||
|
#10
BOLT
97301-06014-00
Superseded by 97017-06014-00
|
$7.49 | ||
|
Unavailable |
|||
|
#11
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#12
FLAP
1T9-21621-00-00
|
$42.99 | ||
|
Unavailable |
|||
|
#13
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97013-06012-00
|
$4.85 | ||
|
Unavailable |
|||
|
#16
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Unavailable |
|||
|
#17
BOLT, HEXAGON
97313-08040-00
Superseded by 97014-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#21
NUT (CROWN) (93501-08800-00)
95303-08800-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
