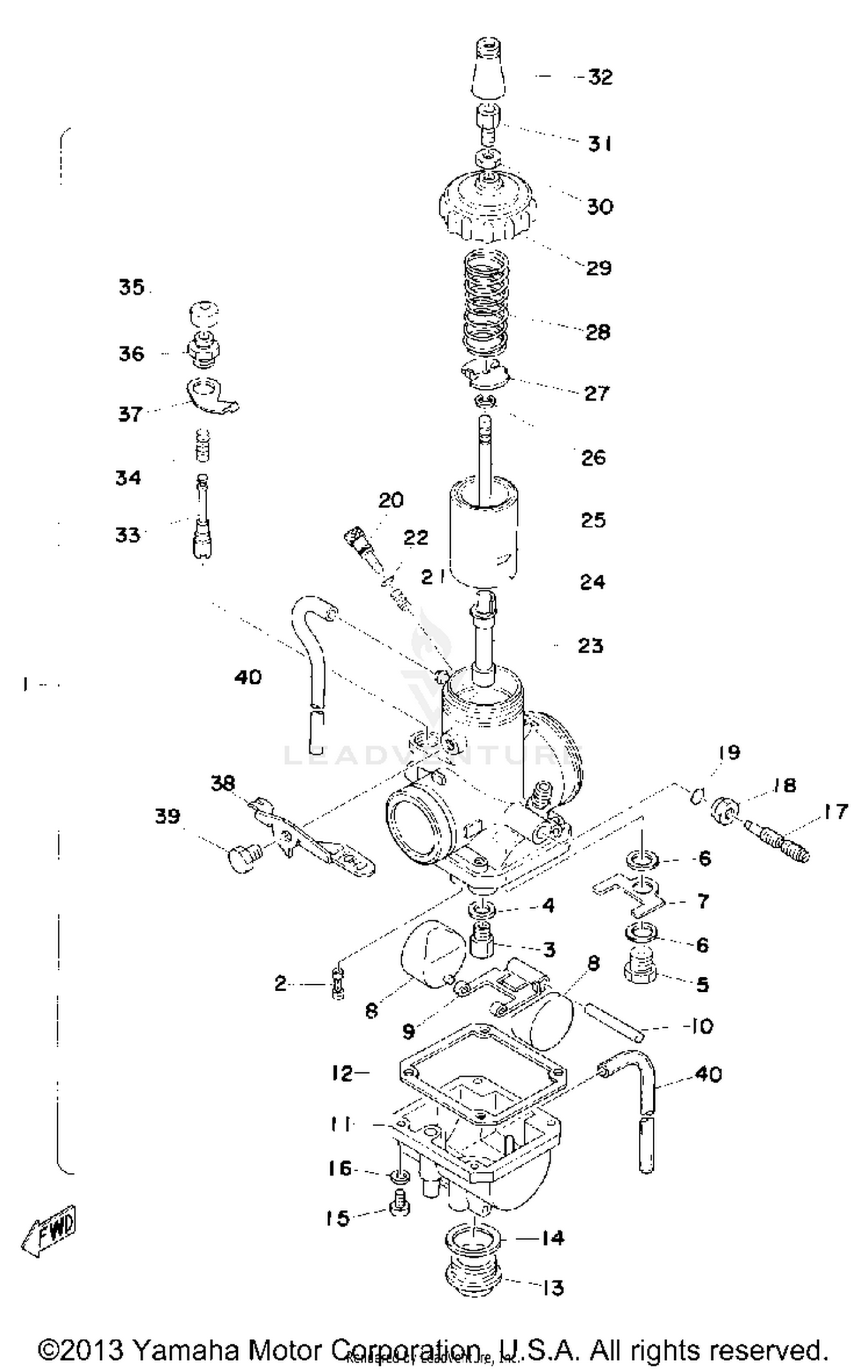

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
565-14101-00-00
|
$162.99 | ||
|
Unavailable |
|||
|
#2
JET, PILOT (#60)
193-14142-60-00
|
$5.00 | ||
|
Unavailable |
|||
|
#3
JET, MAIN (#190)
137-14143-38-A0
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#180)
137-14143-36-A1
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#200)
137-14143-40-A1
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, MAIN JET
346-14153-70-00
|
$2.17 | ||
|
Unavailable |
|||
|
#5
NEEDLE VALVE ASSEMBLY
168-14190-28-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, NEEDLE VALVE
214-14195-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE
537-14146-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#8
FLOAT
280-14185-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#9
ARM, FLOAT
280-14187-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#10
PIN, FLOAT
537-14186-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BODY, FLOAT CHAMBER 1
537-14181-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#12
GASKET, FLOAT CHAMBER
537-14184-00-00
|
$7.46 | ||
|
Unavailable |
|||
|
#13
PLUG, SCREW
278-14115-00-00
|
$2.55 | ||
|
Unavailable |
|||
|
#14
WASHER, SCREW PLUG
278-14117-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, THROTTLE
537-14122-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#18
NUT, CABLE ADJUSTING
537-14161-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#19
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
AIR SCREW SET
10W-14104-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, AIR ADJUSTING
174-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
O-RING
354-14147-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NOZZLE, MAIN
278-14141-44-00
|
$10.80 | ||
|
Unavailable |
|||
|
#24
VALVE, THROTTLE 1
537-14112-30-00
|
$48.64 | ||
|
Unavailable |
|||
|
#25
NEEDLE
275-14116-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#26
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAT, SPRING
537-14136-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#28
SPRING, THROTTLE VALVE
537-14131-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
TOP, MIXING CHAMBER
312-14158-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#30
NUT, CABLE ADJUSTING
802-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SCREW, CABLE ADJUSTING
360-14124-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#32
CAP
525-14169-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#33
PLUNGER, STARTER
174-14171-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#34
SPRING, PLUNGER
500-14135-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#35
COVER, PLUNGER CAP
802-14173-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#36
CAP, PLUNGER
802-14174-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#37
PLATE, STARTER LEVER
537-14178-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#38
LEVER, STARTER 1
537-14175-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#39
BOLT, HOLDING
537-14162-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#40
PIPE, OVERFLOW
310-14196-00-00
|
$17.49 | ||
|
Unavailable |
|||
