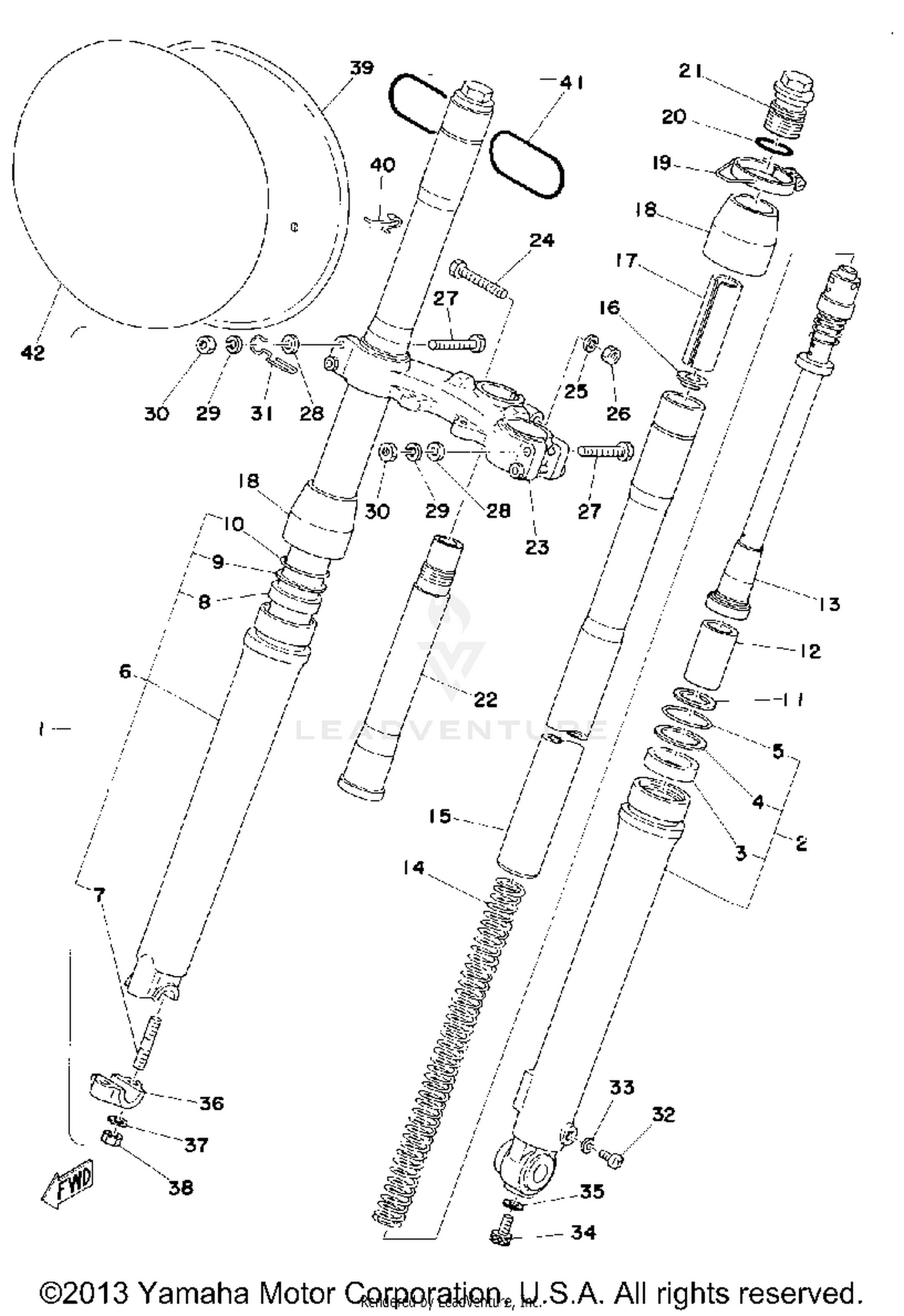

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
509-23101-01-00
|
$248.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
498-23126-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#6
TUBE, OUTER 2
498-23136-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#7
BOLT, STUD
90116-08261-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$59.99 | ||
|
Unavailable |
|||
|
#9
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#10
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#11
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
PISTON, FRONT FORK
509-23171-00-00
|
$7.68 | ||
|
Unavailable |
|||
|
#13
CYLINDER, FRONT FORK
509-23170-01-00
|
$81.99 | ||
|
Unavailable |
|||
|
#14
SPRING, FRONT FORK
509-23141-01-00
|
$25.04 | ||
|
Unavailable |
|||
|
#15
TUBE, INNER 1
509-23124-01-00
|
$97.39 | ||
|
Unavailable |
|||
|
#16
SEAT, SPRING UPPER
278-23142-50-00
|
$8.99 | ||
|
Unavailable |
|||
|
#17
SPACER
33Y-23118-00-00
|
$4.50 | ||
|
Unavailable |
|||
|
#18
SEAL, DUST
292-23144-00-00
|
$30.99 | ||
|
Unavailable |
|||
|
#19
CLAMP, HOSE
90460-54061-00
|
$3.00 | ||
|
Unavailable |
|||
|
#20
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#21
BOLT, CAP
291-23111-60-00
|
$43.24 | ||
|
Unavailable |
|||
|
#22
SHAFT, STEERING
1E6-23341-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#23
BRACKET, LOWER
483-23345-00-33
|
$120.99 | ||
|
Unavailable |
|||
|
#24
BOLT 2
322-23356-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
322-23357-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#27
BOLT
90101-08340-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT, HEXAGON
90170-08180-00
|
$1.74 | ||
|
Unavailable |
|||
|
#31
HOLDER, CABLE 2
434-23319-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#32
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOLDER, AXLE (291-23167-60)
291-23167-61-00
|
$44.99 | ||
|
Unavailable |
|||
|
#37
WASHER, PLATE
92901-08600-00
Superseded by 92990-08600-00
|
$2.45 | ||
|
Unavailable |
|||
|
#38
NUT, HEXAGON
90170-08176-00
|
$1.74 | ||
|
Unavailable |
|||
|
#39
PLATE, NUMBER
322-23485-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#40
STAY, PLATE
431-23486-02-00
|
$5.99 | ||
|
Unavailable |
|||
|
#41
O-RING
93210-44280-00
|
$1.40 | ||
|
Unavailable |
|||
|
#42
EMBLEM
322-23395-00-00
|
$13.72 | ||
|
Unavailable |
|||
