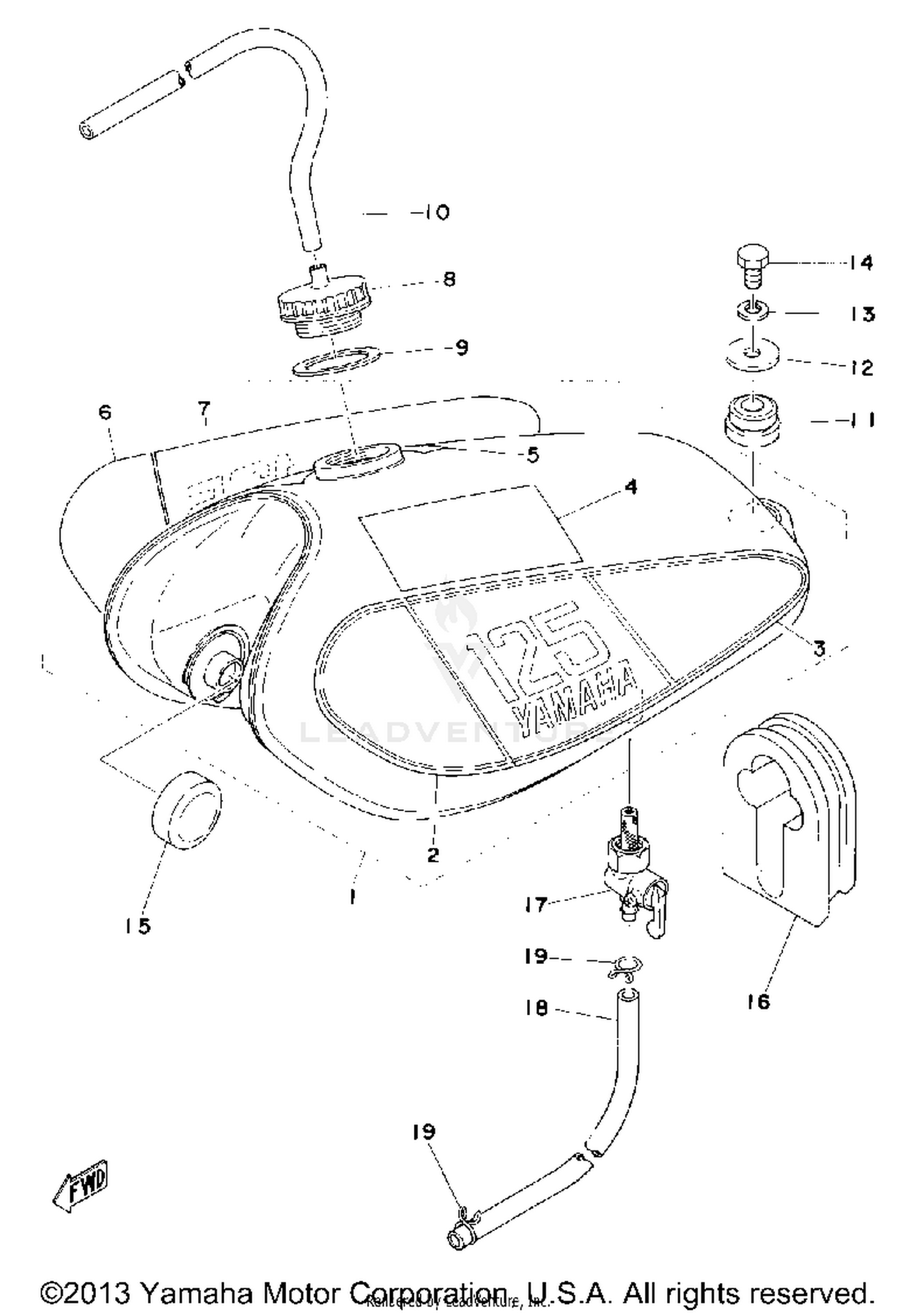

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK
565-24110-00-01
|
$192.99 | ||
|
Unavailable |
|||
|
#2
GRAPHIC, FUEL TNK 1
565-24244-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#3
GRAPHIC, FUEL TNK 2
565-24245-00-00
|
$7.06 | ||
|
Unavailable |
|||
|
#4
GRAPHIC, FUEL TNK 3
565-24246-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#5
GRAPHIC, FUEL TNK 4
565-24247-00-00
|
$2.37 | ||
|
Unavailable |
|||
|
#6
GRAPHIC, FUEL TNK 5
565-24248-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#7
GRAPHIC, FUEL TNK 5
565-24248-00-00
|
$2.77 | ||
|
Unavailable |
|||
|
#8
BODY, CAP
322-24611-02-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-35122-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE (L675)
90445-09111-00
Superseded by 90445-090F6-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-25189-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, LOCATING 1
278-24181-00-00
Superseded by 3TB-24181-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER, LOCATING 3
401-24183-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#17
FUEL COCK ASSEMBLY 1 (322-24500
322-24500-02-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE
90445-11149-00
|
$5.99 | ||
|
Unavailable |
|||
|
#19
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
