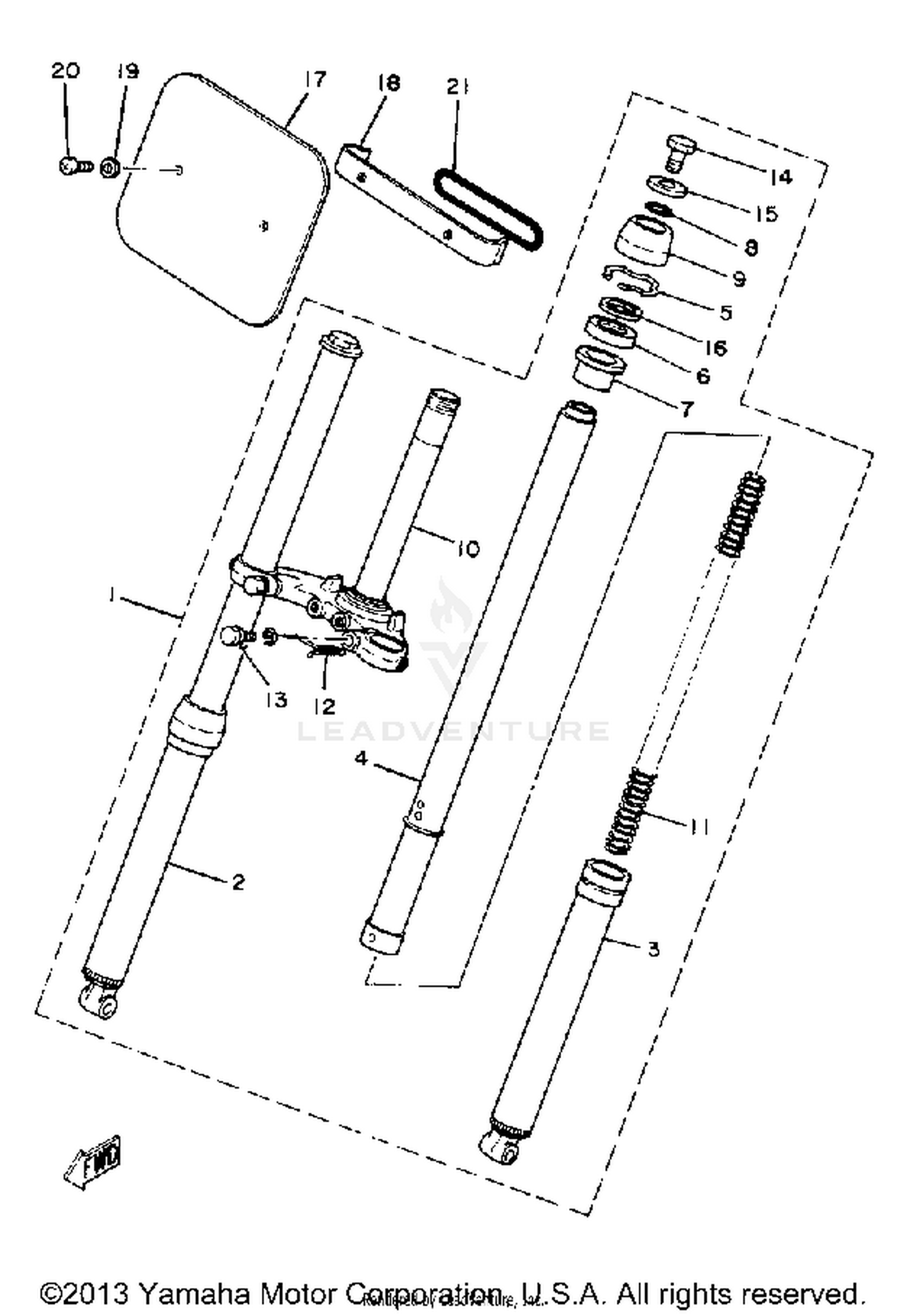

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
367-23101-62-00
|
$81.82 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 2
367-23136-62-35
|
$53.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 1
367-23126-62-35
|
$53.99 | ||
|
Unavailable |
|||
|
#4
TUBE, INNER 2
367-23134-62-00
|
$53.10 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
1T8-23156-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
3VR-23145-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
METAL, SLIDE 1
367-23125-60-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
307-23114-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
367-23144-60-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
UNDER BRACKET
367-23340-60-33
|
$101.99 | ||
|
Unavailable |
|||
|
#11
SPRING, FRONT FORK
367-23141-62-00
|
$6.66 | ||
|
Unavailable |
|||
|
#12
HOLDER, CABLE 2
2A3-23319-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#13
BOLT 1
5J0-23346-00-00
Superseded by 122-23346-02-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, CAP
395-23111-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#15
WASHER, CAP
207-23112-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, OIL SEAL
367-23146-60-00
|
$2.97 | ||
|
Unavailable |
|||
|
#17
PLATE, NUMBER
288-23485-00-00
|
$13.06 | ||
|
Unavailable |
|||
|
#18
STAY, PLATE
288-23486-00-00
|
$5.82 | ||
|
Unavailable |
|||
|
#19
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND
288-23489-00-00
|
$4.00 | ||
|
Unavailable |
|||
