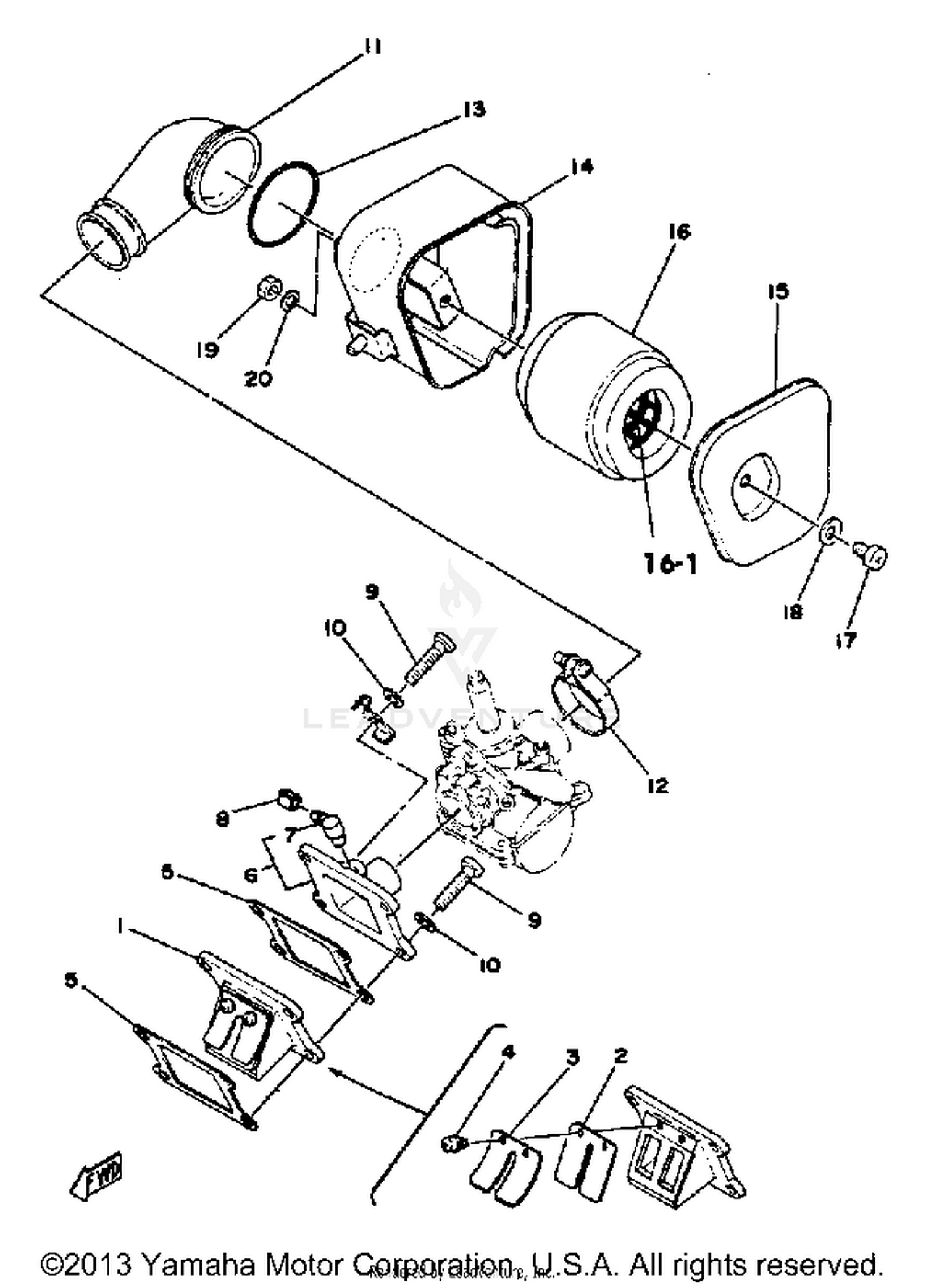

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REED VALVE ASSEMBLY
353-13610-01-00
|
$196.99 | ||
|
Unavailable |
|||
|
#
GUIDE, ELEMENT
367-14458-01-00
|
$4.84 | ||
|
Unavailable |
|||
|
#2
REED, VALVE
314-13613-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
STOPPER, REED VALVE
314-13616-01-00
Superseded by 10X-13616-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#4
SCREW, PAN HEAD
98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET, VALVE SEAT
3MT-13621-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, CARBURETOR (367-13565-00
374-13565-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#7
NOZZLE
278-13552-02-00
Superseded by 3XV-13741-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#8
CLIP
90468-02033-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, PAN HEAD
98511-06025-00
Superseded by 98517-06025-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
JOINT, AIR CLNR 1
367-14453-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP, HOSE
90460-33087-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TENSION
90506-06075-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CASE, AIR CLEANER 1
367-14411-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#15
CAP, CLEANER CASE 1
2A3-14412-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#16
ELEMENT,AIR CLNR
367-14451-09-00
Superseded by 367-14451-08-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
