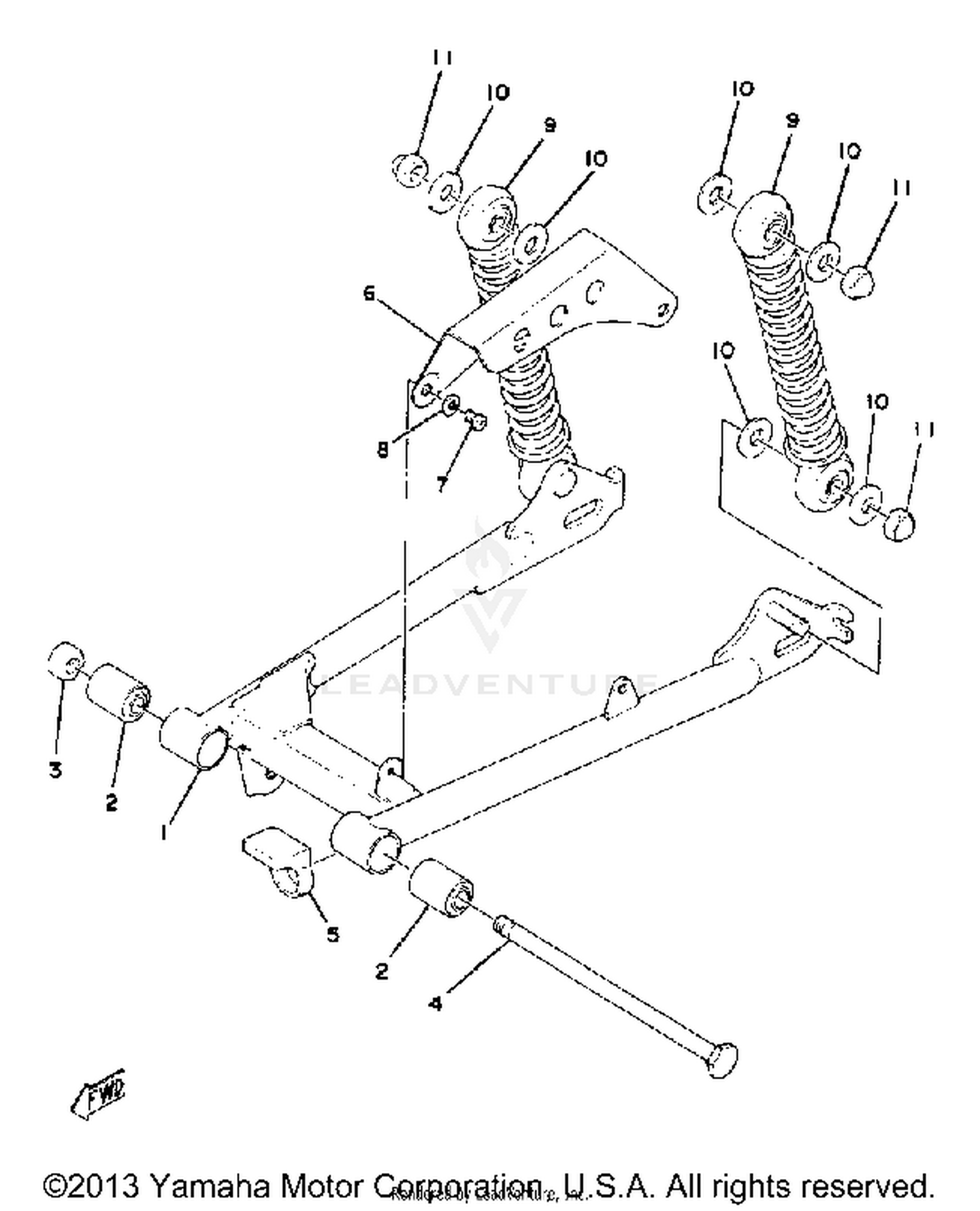

Rear Arm-suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
367-22110-00-33
|
$87.38 | ||
|
Unavailable |
|||
|
#2
BUSH 1
102-22123-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT
95303-10600-00
Superseded by 95314-10600-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT, PIVOT
288-22141-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL, GUARD
183-22151-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE, CHAIN
288-22311-00-33
|
$48.99 | ||
|
Unavailable |
|||
|
#7
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
SHK/ABS ASSEMBLY, REAR
367-22210-21-00
|
$88.99 | ||
|
Unavailable |
|||
|
#10
WASHER, PLATE
90201-10437-00
Superseded by 90201-105R9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CROWN
90176-10013-00
Superseded by 90176-10073-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
