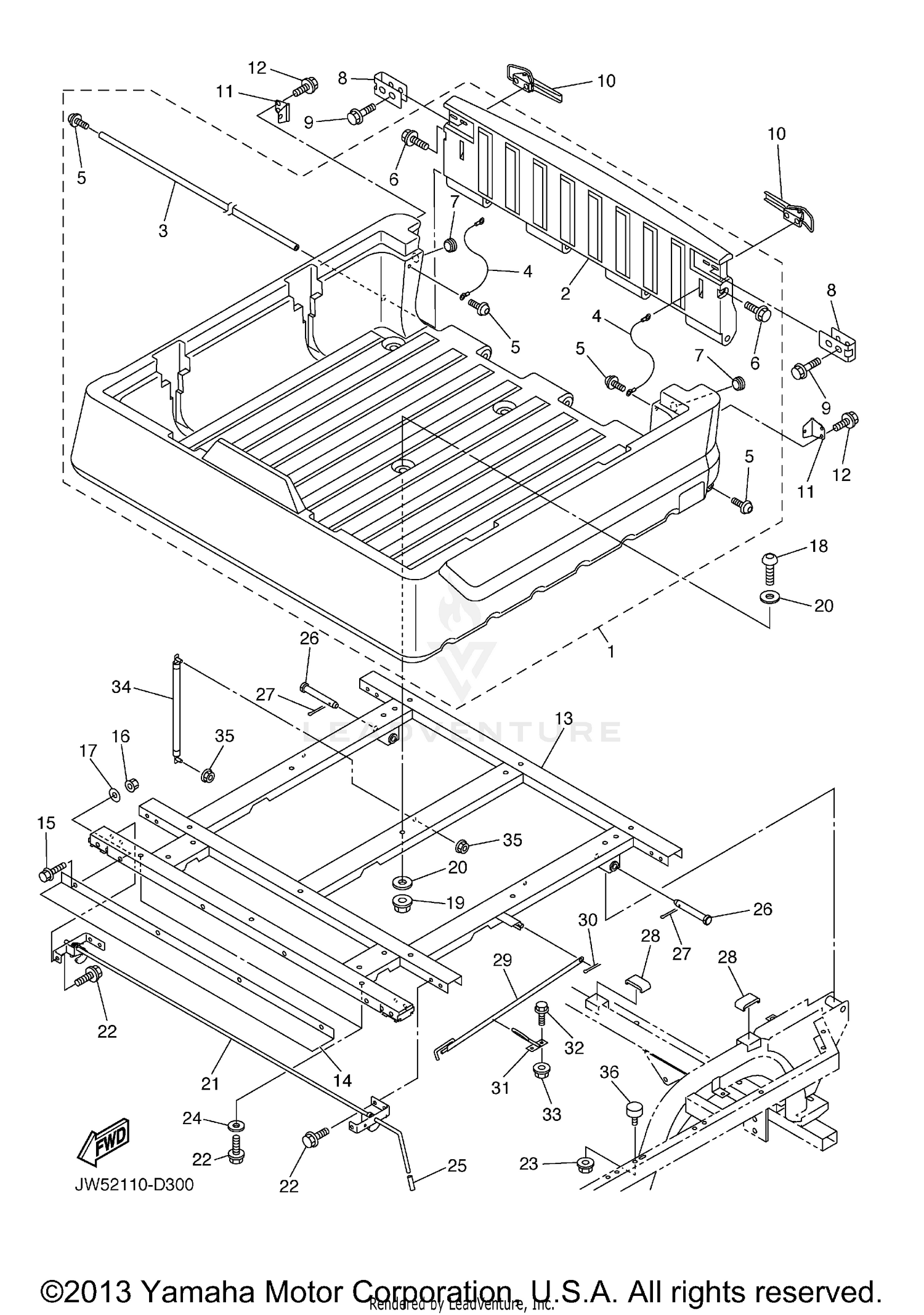

Carrier Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR STORAGE BOX ASS
JU9-K810M-00-00
Superseded by JU9-K810M-01-00
|
$1,005.99 | ||
|
Unavailable |
|||
|
#2
SHELL, RR. STORAGE LID
JU9-K819K-00-00
|
$305.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, HINGE
JU9-K8564-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, CABLE
JU9-K7195-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SPECIAL 1
JU9-K6179-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SPECIAL 2
JU9-K6189-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER, LID
JU9-K7739-10-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BODY, LATCH 1
JU9-K7171-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
JU9-K8384-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LATCH
5UG-F389E-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BODY, LATCH 2
JU9-K7172-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#12
BOLT, WITH WASHER
90119-06830-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BED, BOX
JU9-K818N-01-00
|
$799.99 | ||
|
Unavailable |
|||
|
#14
COVER, 4
JU9-K8284-01-00
|
$107.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
9582P-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, U FLANGE
9560P-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PLATE
90201-068R3-00
Superseded by 90201-06078-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, BUTTON HEAD
92017-10035-00
|
$3.70 | ||
|
Unavailable |
|||
|
#19
NUT, SELF-LOCKING
9560P-10200-00
Superseded by 90185-10154-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-10144-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
LOCK ASSY
JU9-K8380-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#22
BOLT, FLANGE
9582P-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, SELF-LOCKING
9560P-08200-00
Superseded by 95602-08200-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-088P7-00
Superseded by 90201-08784-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#25
CAP, PROTECTOR END 4
JJ3-K818M-00-00
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, CLEVIS
90240-13801-00
Superseded by 90240-13803-00
|
$0.99 | ||
|
Unavailable |
|||
|
#27
PIN, COTTER
91401-30025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, LOCK
JJ3-K815H-01-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROD, INSPECTION LID
JU5-K8158-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, COTTER
91401-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
PIN, LEVER
JJ3-K8369-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, WITH WASHER
90119-06830-00
|
$5.49 | ||
|
Unavailable |
|||
|
#33
NUT, U FLANGE
9560P-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Unavailable |
|||
|
#34
DAMPER 1
JJ3-K7588-00-00
|
$110.99 | ||
|
Unavailable |
|||
|
#35
NUT, SELF-LOCKING
9560P-08200-00
Superseded by 95602-08200-00
|
$2.99 | ||
|
Unavailable |
|||
|
#36
BUMPER,RUBBER 1
JU5-K8167-10-00
Superseded by JU5-K8167-11-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
