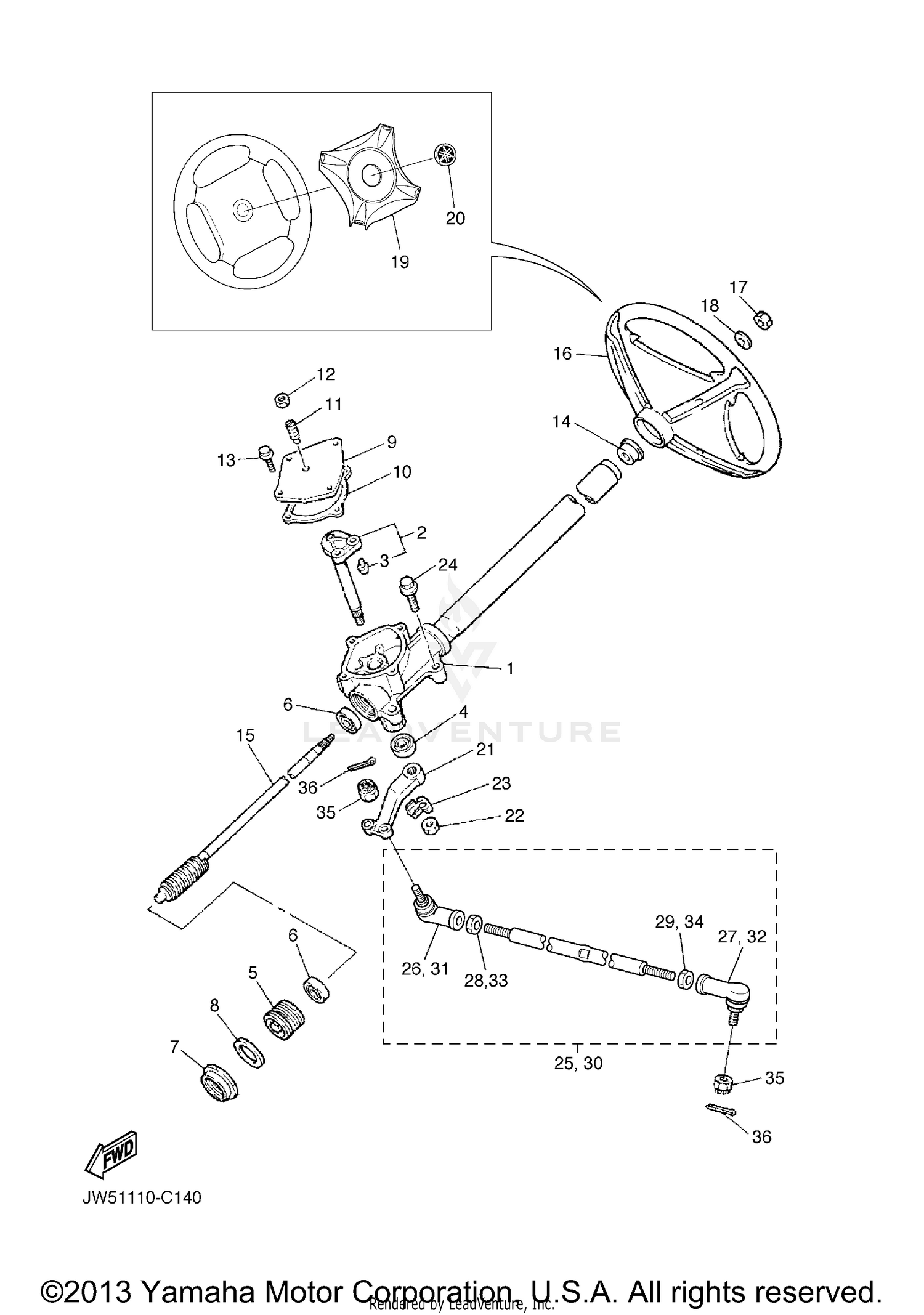

Steering Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLUMN, STEERING
JG5-F3811-00-00
|
$219.99 | ||
|
Unavailable |
|||
|
#2
ARM, PITMAN
J38-23816-00-00
|
$142.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, PITMAN
J38-23836-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL, OIL
93102-22082-00
Superseded by 93102-22314-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
J55-F3876-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93332-000Y2-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT
J10-23877-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
J10-23444-00-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,STEERING
JN3-F3818-00-00
Superseded by JN3-F3818-01-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SEAL, STEERING
J38-23462-01-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
J10-F3459-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#12
NUT, HEX
90170-08024-00
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95807-06020-00
Superseded by 95817-06020-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER,HANDLE UPPER
JN3-F3814-00-00
Superseded by JN3-F3814-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
STEERING SHAFT ASSY
J10-23840-00-00
Superseded by JU5-F3840-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WHEEL, STEERING
JN3-F3838-00-00
Superseded by JN3-F3838-09-00
|
$61.27 | ||
|
Unavailable |
|||
|
#17
NUT, SELF-LOCKING
90185-12061-00
Superseded by 90185-12119-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLAIN
9290P-12200-00
Superseded by 92990-12200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, STEERING
5UG-F3818-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUNING FORK MARK
5FU-F175B-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
ARM, IDLER
J38-23826-01-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, NYLON
95707-16300-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, LOCK
90215-16814-00
Superseded by 90215-16801-00
|
$0.99 | ||
|
Unavailable |
|||
|
#24
BOLT, FLANGE
90105-10880-00
Superseded by 90105-10848-00
|
$0.99 | ||
|
Unavailable |
|||
|
#25
TIE ROD ASY LH
JU9-F3830-00-00
Superseded by JU9-F3830-09-00
|
$162.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
JOINT, UNIVERSAL 1
JN6-F3841-00-00
Superseded by JN6-23841-10-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
JOINT, UNIVERSAL 2
JN6-F3845-00-00
Superseded by JN6-23845-10-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
9530N-10600-00
Superseded by 95337-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT
90170-10414-00
Superseded by 90170-10186-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
TIE ROD ASSY RH
JU9-F3850-00-00
Superseded by JU9-F3850-09-00
|
$143.99 | ||
|
Unavailable |
|||
|
#31
JOINT, UNIVERSAL 1
JN6-F3841-00-00
Superseded by JN6-23841-10-00
|
$93.99 | ||
|
Unavailable |
|||
|
#32
JOINT, UNIVERSAL 2
JN6-F3845-00-00
Superseded by JN6-23845-10-00
|
$93.99 | ||
|
Unavailable |
|||
|
#33
NUT
9530N-10600-00
Superseded by 95337-10600-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
NUT
90170-10414-00
Superseded by 90170-10186-00
|
$9.49 | ||
|
Unavailable |
|||
|
#35
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
