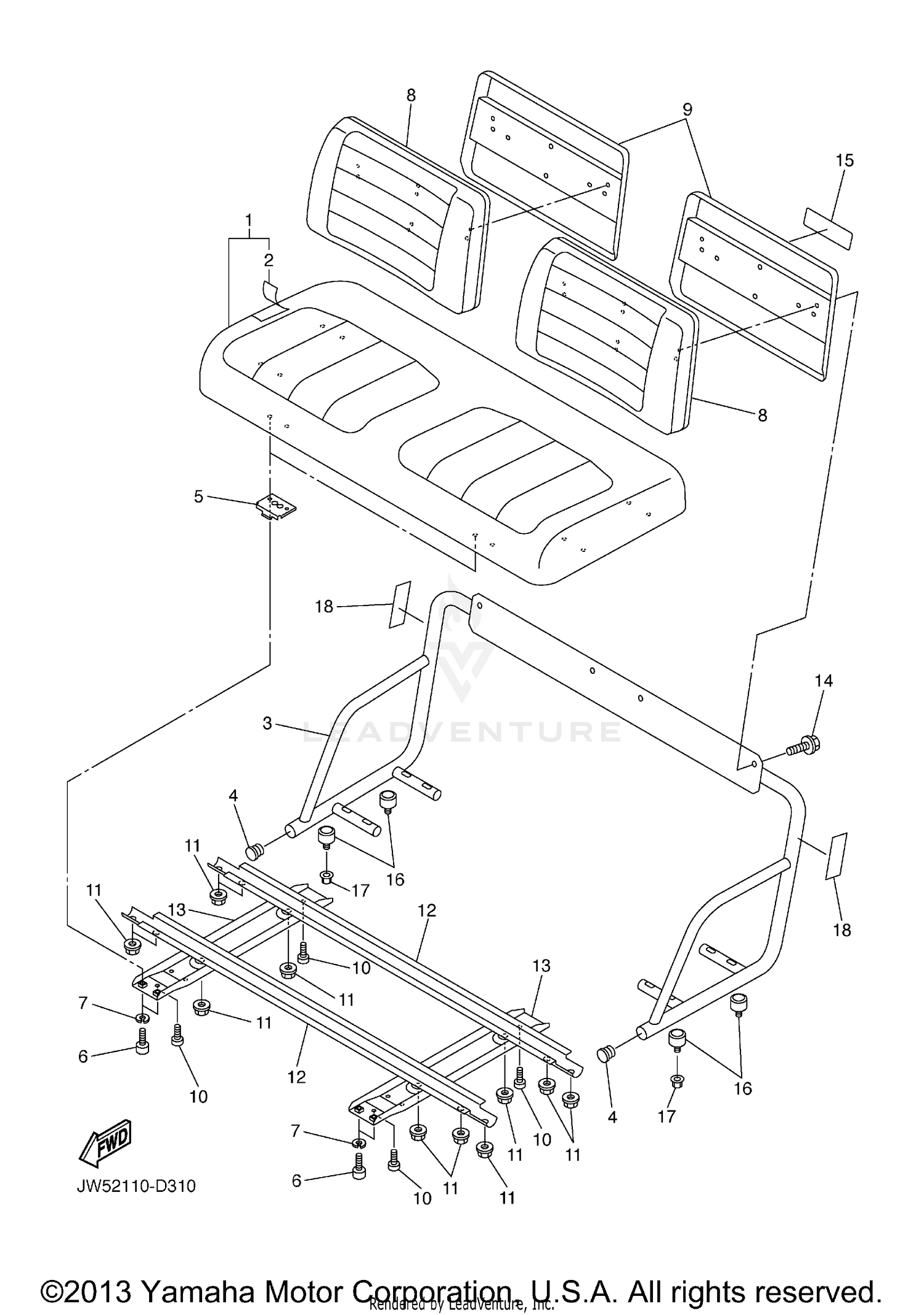

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT SUB-ASSY, CUSHION
JW5-K8401-00-00
|
$282.99 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT
JW5-K8404-00-00
|
$102.99 | ||
|
Unavailable |
|||
|
#3
SEAT ASSY 2
JU9-K8420-00-00
|
$285.99 | ||
|
Unavailable |
|||
|
#4
CAP, MAIN PIPE
JU7-F111A-00-00
|
$1.80 | ||
|
Unavailable |
|||
|
#5
HINGE, SEAT 1
JN3-K8426-01-00
Superseded by JN3-K8426-02-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
BOLT
90111-06810-00
|
$2.10 | ||
|
Unavailable |
|||
|
#7
WASHER, SPRING
90204-06807-00
Superseded by 90204-06800-00
|
$0.99 | ||
|
Unavailable |
|||
|
#8
SEAT SUB ASSY, BACK
JW4-K8402-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#9
COVER, SEAT BACK
JJ3-K8413-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, TAPPING
90167-04815-00
|
$1.15 | ||
|
Unavailable |
|||
|
#11
NUT, SELF-LOCKING
9560P-08200-00
Superseded by 95602-08200-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
REINFORCEMENT 1
JN6-K8121-00-00
Superseded by JN6-K8121-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
REINFORCEMENT 2
JN6-K8122-02-00
Superseded by JN6-K8122-03-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-06837-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
LABEL, WARNING 7
JU7-K7767-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#16
BUMPER,RUBBER 1
JU5-K8167-00-00
Superseded by JU5-K8167-01-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, SELF-LOCKING
9560P-08200-00
Superseded by 95602-08200-00
|
$2.99 | ||
|
Unavailable |
|||
|
#18
LABEL, WARNING 4
5UG-K7764-00-00
Superseded by 5B4-K7764-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
