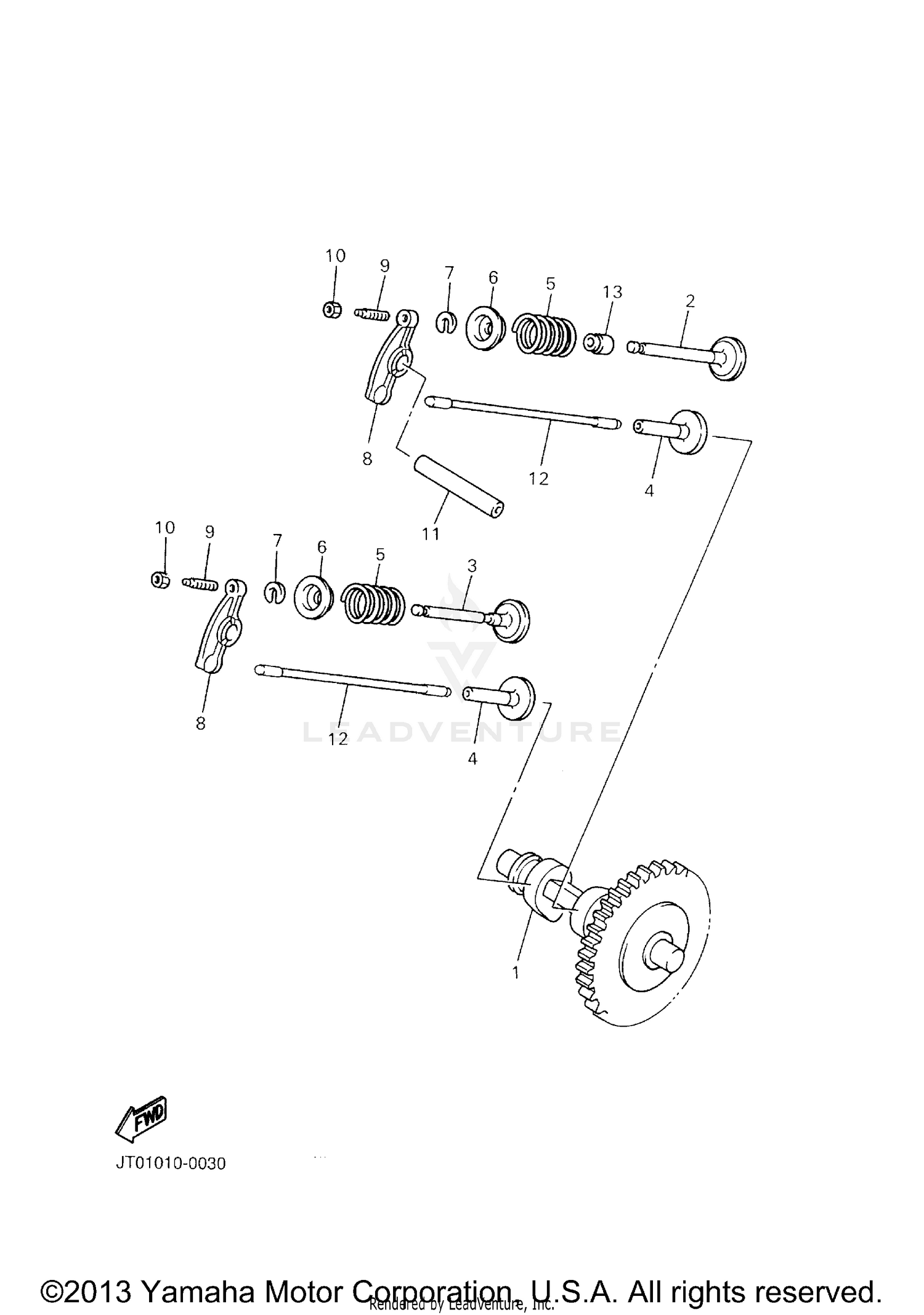

2005 Yamaha PRO HAULER 700 AUTO CAMSHAFT VALVE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 2
JR7-12170-00-00
Superseded by JR7-12180-10-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE, INTAKE
JN6-12111-01-00
Superseded by 7CT-E2111-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
VALVE, EXHAUST
7RH-12121-00-00
Superseded by 7CT-E2121-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
LIFTER, VALVE
JN6-12153-00-00
Superseded by 7CT-E2153-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, COMPRESSION
90501-264A9-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RETAINER, VALVE SPRING
J38-12117-01-00
Superseded by 7CT-E2117-00-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
COTTER, VALVE
J38-12118-00-00
Superseded by 7CT-E2118-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM, VALVE ROCKER
JN6-12151-00-00
Superseded by 7CT-E2151-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, VALVE ADJUSTING
22F-12159-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90170-05302-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT, ROCKER 2
J38-12156-00-00
Superseded by 7CT-E2156-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
ROD, VALVE PUSH
JR7-12154-01-00
Superseded by JW1-E2154-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL, VALVE STEM
4G0-12119-00-00
Superseded by 5H0-12119-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
