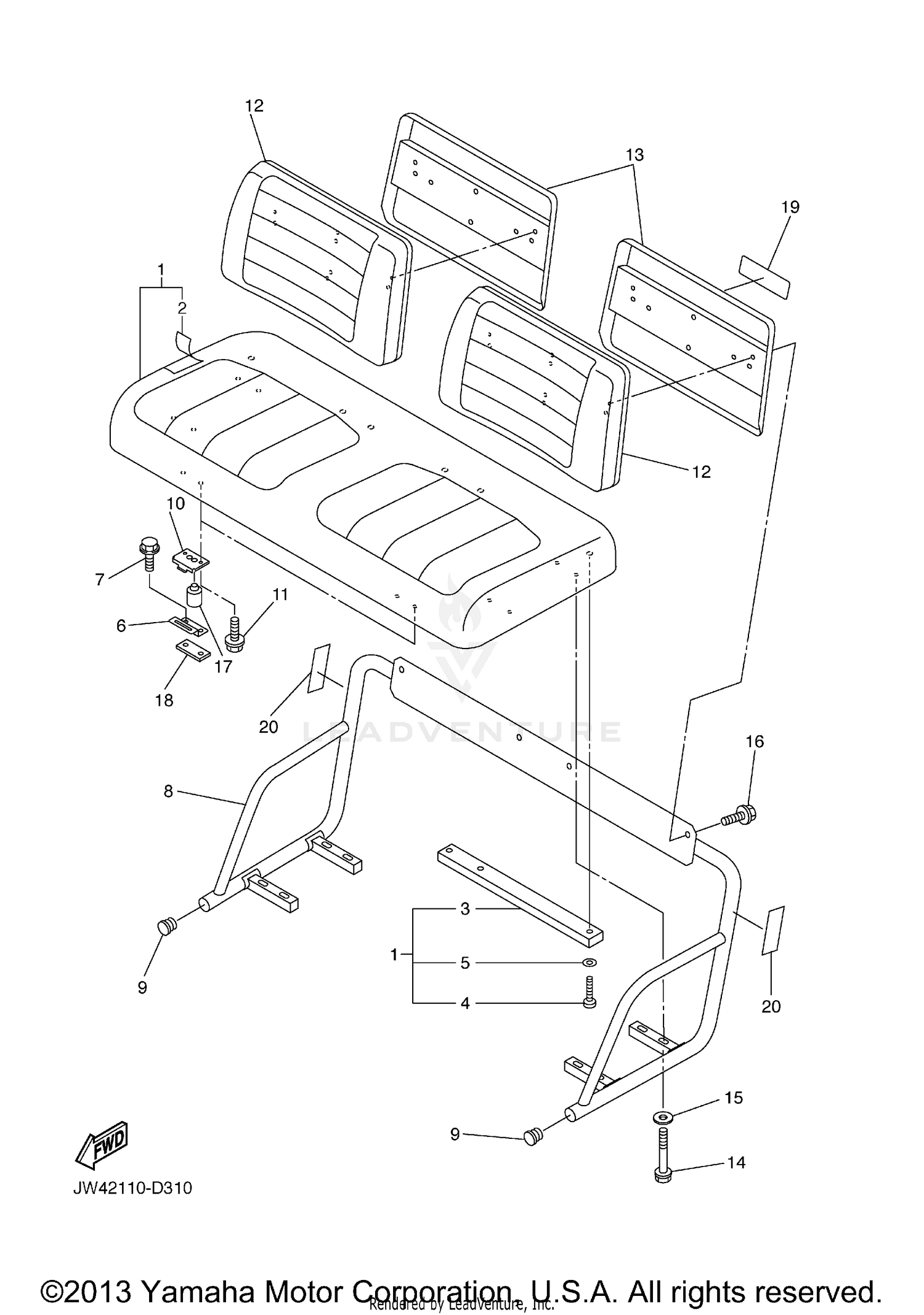

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT SUB-ASSY,CUSHION
JW4-K8401-10-00
|
$287.99 | ||
|
Unavailable |
|||
|
#2
COVER, SEAT
JW4-K8404-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#3
SEAL, SEAT 2
JU7-K842A-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#4
SCREW
JU7-K7387-00-00
|
$1.99 | ||
|
Unavailable |
|||
|
#5
WASHER
JU7-K7389-00-00
|
$1.99 | ||
|
Unavailable |
|||
|
#6
HINGE, SEAT 2
JF2-K8427-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, FLANGE
90105-06903-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAT ASSY 2
JU7-K8420-00-00
|
$282.99 | ||
|
Unavailable |
|||
|
#9
CAP, MAIN PIPE
JU7-F111A-00-00
|
$1.80 | ||
|
Unavailable |
|||
|
#10
HINGE, SEAT 1
JN3-K8426-02-00
|
$6.99 | ||
|
Unavailable |
|||
|
#11
BOLT, WITH WASHER
90119-069UD-00
Superseded by 90119-06892-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAT SUB ASSY, BACK
JW4-K8402-00-00
|
$81.99 | ||
|
Unavailable |
|||
|
#13
COVER, SEAT BACK
JJ3-K8413-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, WITH WASHER
90119-069UW-00
|
$3.60 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90201-068G0-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, WITH WASHER
90119-06837-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER, SEAT
JU7-F4747-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#18
WASHER, PLATE
JU7-K8478-10-00
|
$3.99 | ||
|
Unavailable |
|||
|
#19
LABEL, WARNING 7
JU7-K7767-00-00
|
$5.99 | ||
|
Unavailable |
|||
|
#20
LABEL, WARNING 4
5UG-K7764-00-00
Superseded by 5B4-K7764-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
