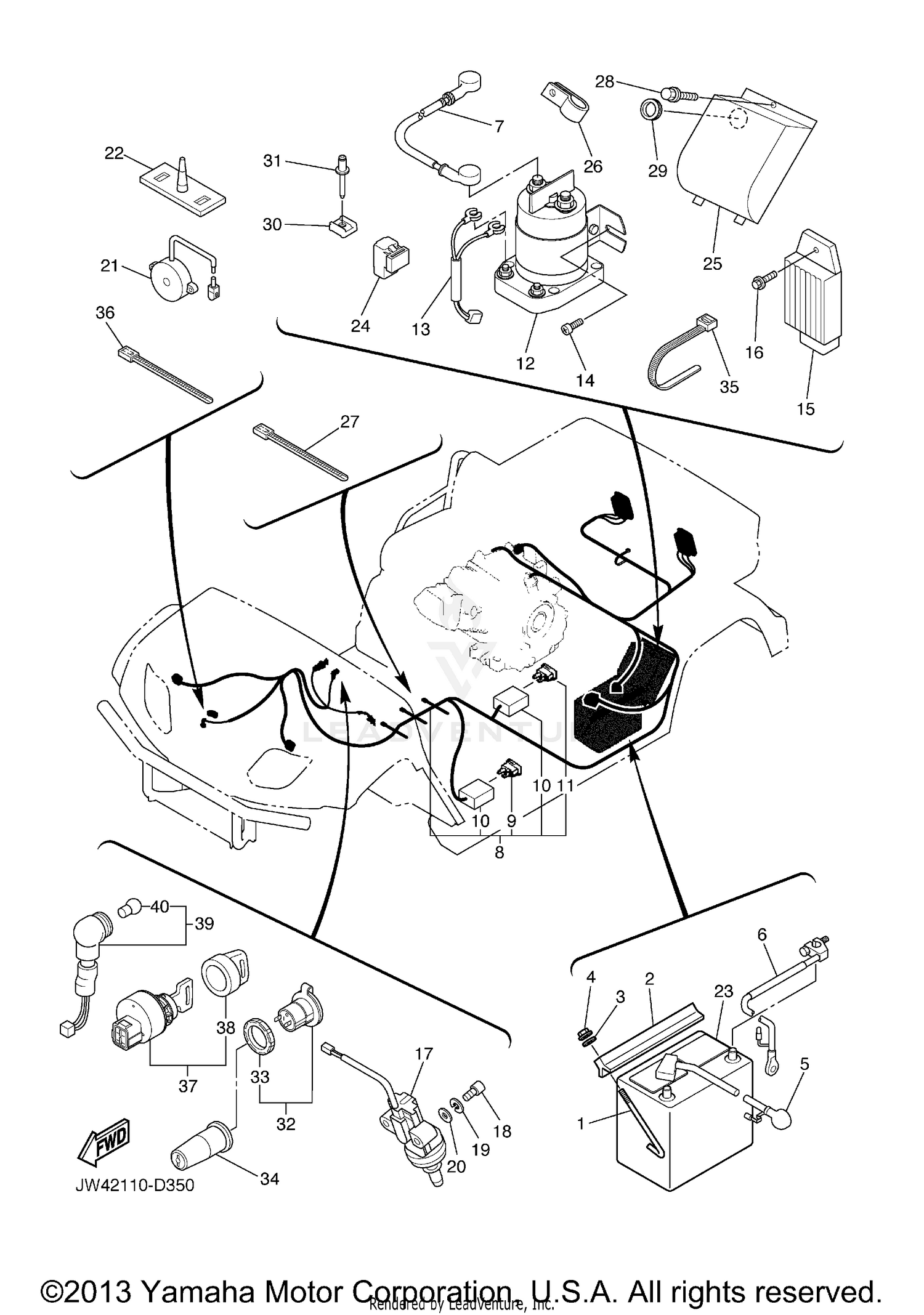

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW, FITTING
JN3-H2133-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, BATTERY FITTING
J55-H2136-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER
9290P-06200-00
Superseded by 92907-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, FLANGE
95707-06500-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#5
WIRE, PLUS LEAD
JU7-H2115-00-00
|
$38.99 | ||
|
Unavailable |
|||
|
#6
WIRE, MINUS LEAD
JN6-H2116-01-00
|
$31.99 | ||
|
Unavailable |
|||
|
#7
WIRE, LEAD
JU7-H2117-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#8
WIRE HARNESS ASSY
JW4-H2590-02-00
|
$232.99 | ||
|
Unavailable |
|||
|
#9
FUSE (10 A)
JN6-H2151-00-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FUSE HOLDER ASSY
JR1-H2150-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE (20 A)
JU7-H2151-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY ASSY (684-1271-012)
JW1-H1950-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE HARNESS
JN6-H2105-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, TAPPING
90163-06005-00
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
VOLTAGE REGULATOR
JF2-81910-01-00
Superseded by JF2-81910-12-00
|
$84.99 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
90105-06876-00
Superseded by 90105-06870-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH
JF7-82817-20-00
Superseded by JF7-82817-22-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN HEAD
98507-05025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92907-05100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUZZER
JR1-H3383-01-00
Superseded by JR1-H3383-02-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
STAY, BUZZER
JN6-H3386-01-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#23
BATTERY ASSY
JG5-H2110-01-00
|
|||
|
Unavailable |
|||
|
#24
RELAY ASSY
4U8-81950-02-00
Superseded by 4U8-81950-03-00
|
$79.99 | ||
|
Unavailable |
|||
|
#25
COVER
JN6-H1942-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#26
CLAMP
90461-16802-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90464-40825-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
90105-06876-00
Superseded by 90105-06870-00
|
$1.99 | ||
|
Unavailable |
|||
|
#29
GROMMET
90480-25856-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, FINISH
90207-05800-00
|
$1.00 | ||
|
Unavailable |
|||
|
#31
RIVET, BLIND
90267-489U9-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
TERMINAL ASSY
5FU-H1920-10-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
5FU-H191B-10-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#34
COVER, CONNECTER
5FU-H2599-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90464-14806-00
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
CLAMP
90464-31827-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
MAIN SWITCH ASSY
JU6-H2510-01-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CAP, KEY
5UG-H2579-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
PILOT LIGHT ASSY
JN6-83530-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
