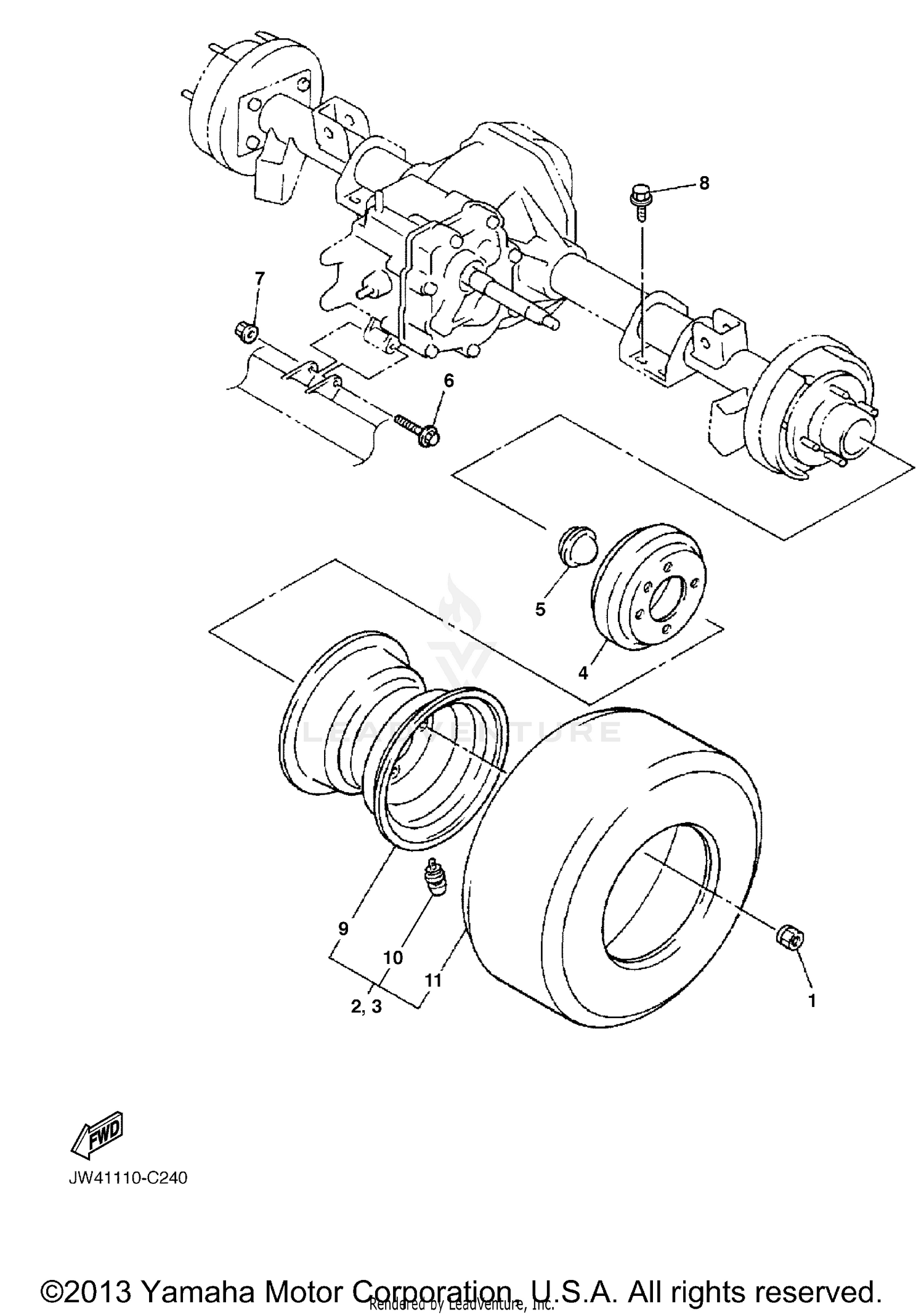

Rear Axle Mount Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT
90179-12262-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#2
WHEEL ASSY (20X10-8/4/244)
JW4-F5100-00-00
|
$176.99 | ||
|
Unavailable |
|||
|
#3
WHEEL ASSY., 2 (20X10-8/4/244)
JW4-F5109-00-00
|
$158.99 | ||
|
Unavailable |
|||
|
#4
DRUM
JU0-G6521-00-00
|
$85.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER,HUB DUST
JN6-F5118-00-00
Superseded by JN6-F5118-01-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
9581P-08075-00
Superseded by 95817-08075-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, WITH WASHER
9751P-10620-00
|
$1.65 | ||
|
Unavailable |
|||
|
#9
RIM, WHEEL (LOW GLOS
JW4-F5180-00-00
Superseded by JW4-F5180-10-00
|
$86.99 | ||
|
Unavailable |
|||
|
#10
VALVE STEM
93900-00815-00
|
$4.99 | ||
|
Unavailable |
|||
|
#11
TIRE
94110-08801-00
|
$105.99 | ||
|
Available to order. Add to View Price |
|||
