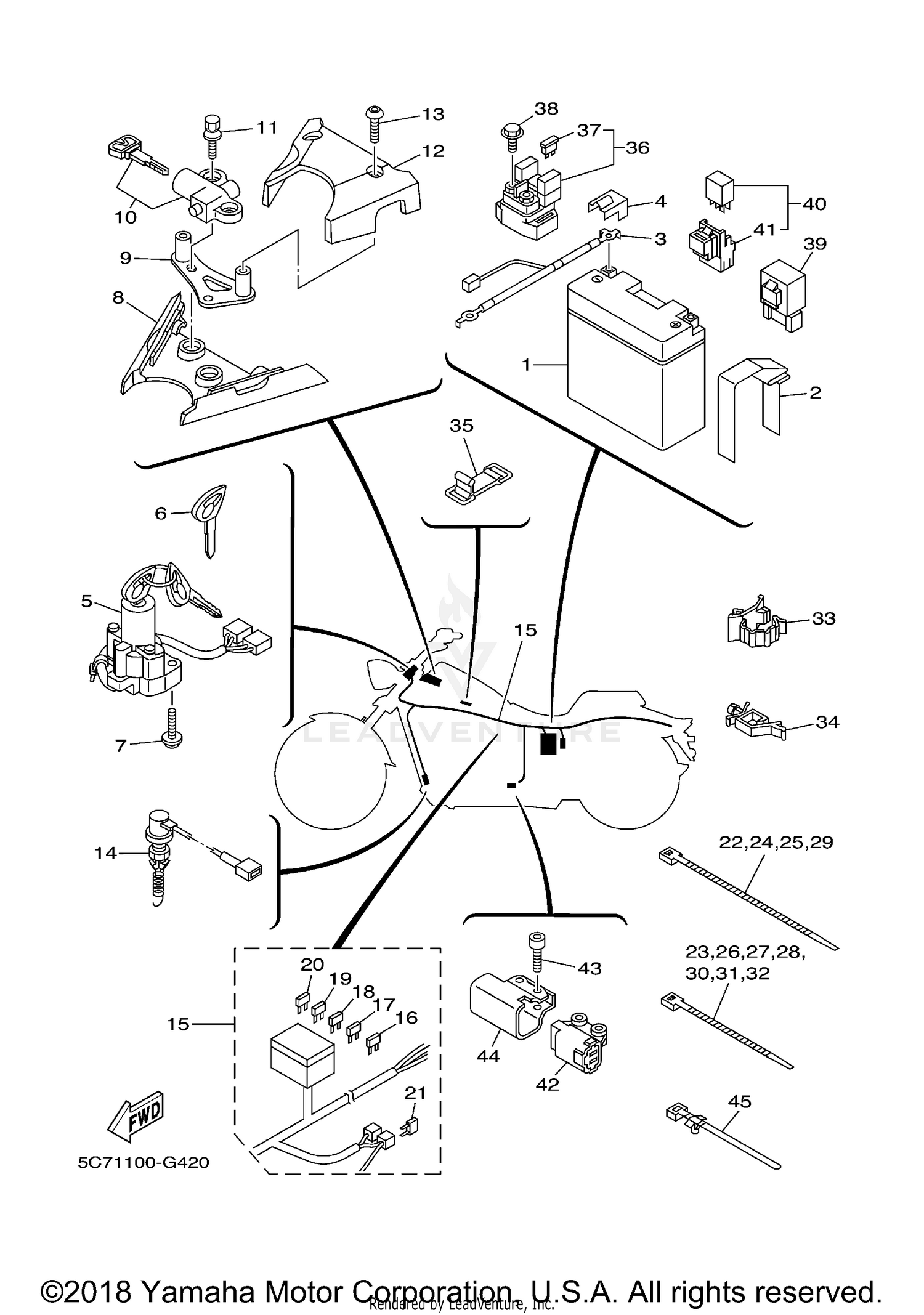

Electrical 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GT14B4 GS BATTERY -
5EA-82100-11-00
Superseded by GT1-4B400-00-00
|
$154.99 | ||
|
Unavailable |
|||
|
#2
BAND, BATTERY
4AS-82131-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WIRE, MINUS LEAD
1D7-82116-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER, LEAD WIRE
1D7-82119-00-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#5
MAIN SWITCH ASSY
5C7-82510-00-00
Superseded by 5C7-82510-10-00
|
$358.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BLANK KEY
5PX-82511-09-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON SOCKET BUTTON
90111-06030-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER
5C7-8252U-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET
5C7-21158-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
STEERING LOCK ASSY
5C7-W2348-00-00
|
$131.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
90109-080G5-00
Superseded by 90109-08196-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, LOCK
5C7-2848Y-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, BUTTON HEAD
90111-06003-00
Superseded by 92014-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
STOP SWITCH ASSY
5C7-82530-00-00
Superseded by 5C7-82530-01-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE HARNESS ASSY
5C7-82590-01-00
|
$659.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
FUSE (25A-BL)
5JJ-82151-70-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
FUSE (10A)
5JJ-82151-30-00
Superseded by 67F-82151-40-00
|
$6.03 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUSE (20A-BL)
5JJ-82151-20-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
FUSE (3A)
5JJ-82151-50-00
Superseded by 67F-82151-30-00
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
FUSE (7.5A-BL)
5JJ-82151-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
FUSE (50A)
5JW-82151-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
3MA-82591-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
3MA-82591-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#25
CLAMP
3MA-82591-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#26
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#27
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#28
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#29
CLAMP
3MA-82591-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#30
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#31
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#32
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Unavailable |
|||
|
#33
CLAMP
90464-20002-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90464-16021-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BAND, BATTERY
1KH-82131-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
STARTER RELAY ASSY (RC19-032)
5JW-81940-02-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
FUSE (15A-BLUE)
36Y-82151-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE
95027-06008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
RELAY ASSY
5VK-81950-30-00
Superseded by 5VK-81950-33-00
|
$53.99 | ||
|
Unavailable |
|||
|
#40
RELAY ASSY (5EA-02)
5EA-81950-20-00
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOLDER, RELAY
5EA-81952-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
SENSOR, LEAN ANGLE
5VU-82576-01-00
Superseded by 5VU-82576-03-00
|
$93.99 | ||
|
Unavailable |
|||
|
#43
BOLT
90110-04003-00
Superseded by 91312-04025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
PLATE
5C7-82388-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLAMP
90464-34002-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
