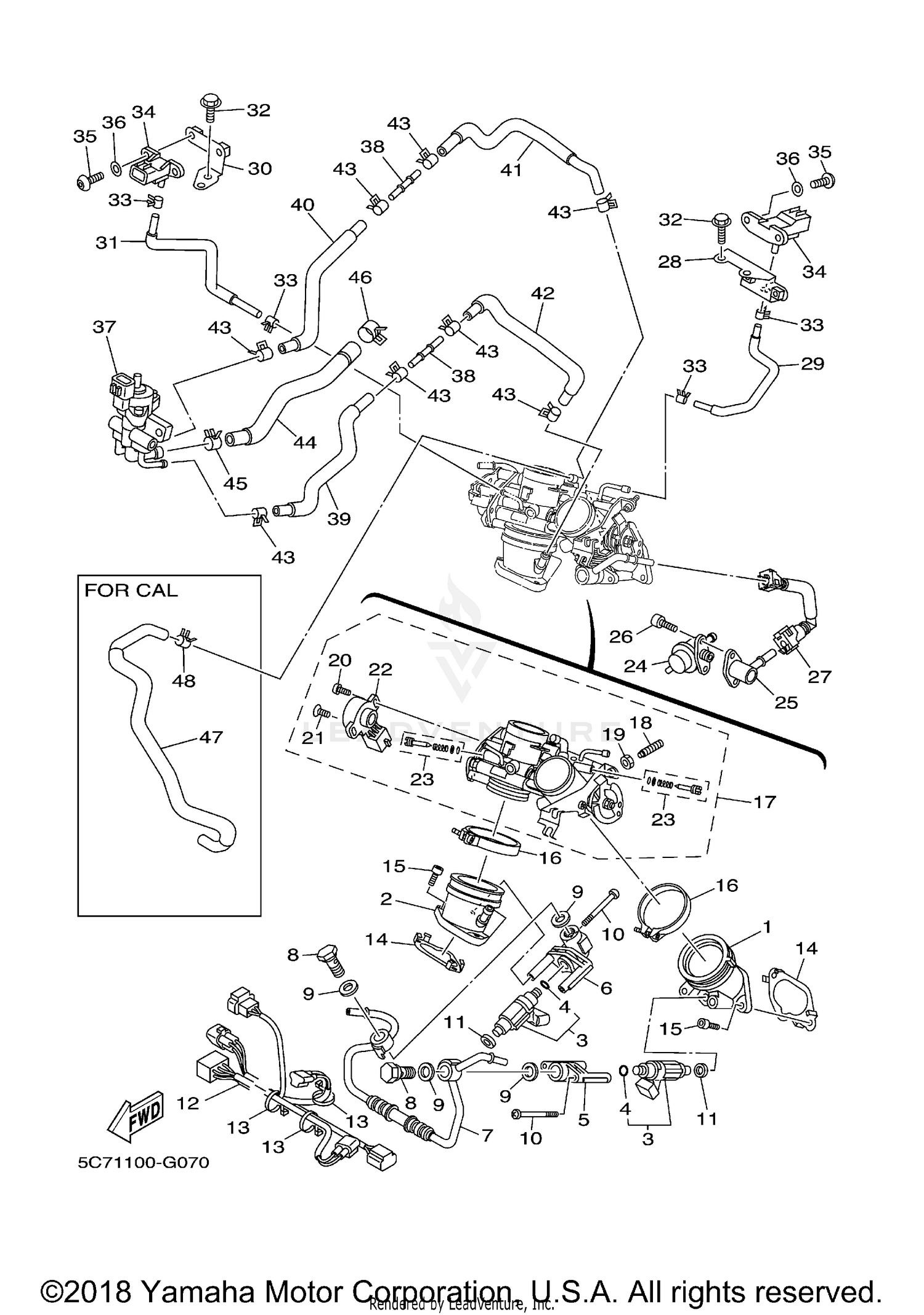

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
1D7-13586-00-00
|
$169.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
JOINT, CARBURETOR 2
1D7-13596-00-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
INJECTOR
5YU-13761-00-00
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
5FL-14147-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CONNECTOR
5PX-14188-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CONNECTOR
5PX-14189-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIPE
1D7-13938-00-00
|
$208.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT 1
4BH-13573-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-12219-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, PAN HEAD
98507-06050-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
90430-09002-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WIRE, SUB LEAD
1D7-82509-30-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-10098-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL
1D7-14467-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE CLAMP ASSY
90450-62003-00
Superseded by 90450-62004-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
THROTTLE BODY ASSY
5C7-13750-00-00
|
$547.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
THROTTLE BODY ASSY
5C7-13750-10-00
|
$547.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
3FV-14567-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT, CABLE ADJUSTING
3JD-14161-00-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
4KM-24453-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, FLAT HEAD
98707-04010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
. .THROTTLE SENSOR ASSY
8GL-85885-00-00
Superseded by 8GL-85885-01-00
|
$86.99 | ||
|
Unavailable |
|||
|
#23
AIR SCREW SET
5JW-14104-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
REGULATOR, PRESSURE
5C7-13906-00-00
|
$183.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT
5PX-13595-00-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
91312-05025-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIPE, FUEL 2
5C7-13972-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
STAY 1
1D7-14493-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE, AIR
1D7-13895-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
STAY 2
1D7-14494-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
HOSE, AIR 2
5C7-13892-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#32
BOLT, FLANGE
95822-06012-00
Superseded by 95817-06012-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP
90467-07093-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
SENSOR, PRESSURE
5PS-82380-00-00
|
$276.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
97007-05016-00
Superseded by 97017-05016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
92907-05600-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
LINEAR, CONTROL VALVE
5C7-85880-00-00
Superseded by 5C7-85880-01-00
|
$231.99 | ||
|
Unavailable |
|||
|
#38
PIPE
5PX-14466-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
HOSE 1
5C7-13545-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
HOSE 2
5C7-13546-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
HOSE 3
5C7-13547-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
HOSE, AIR 4
5C7-13548-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
CLIP
90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
PIPE, AIR
5C7-13897-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#45
CLIP
90467-15001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLIP
90467-17089-00
Superseded by 90467-17128-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
PIPE
5C7-14349-00-00
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLIP
90467-09037-00
Superseded by 90467-09120-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
