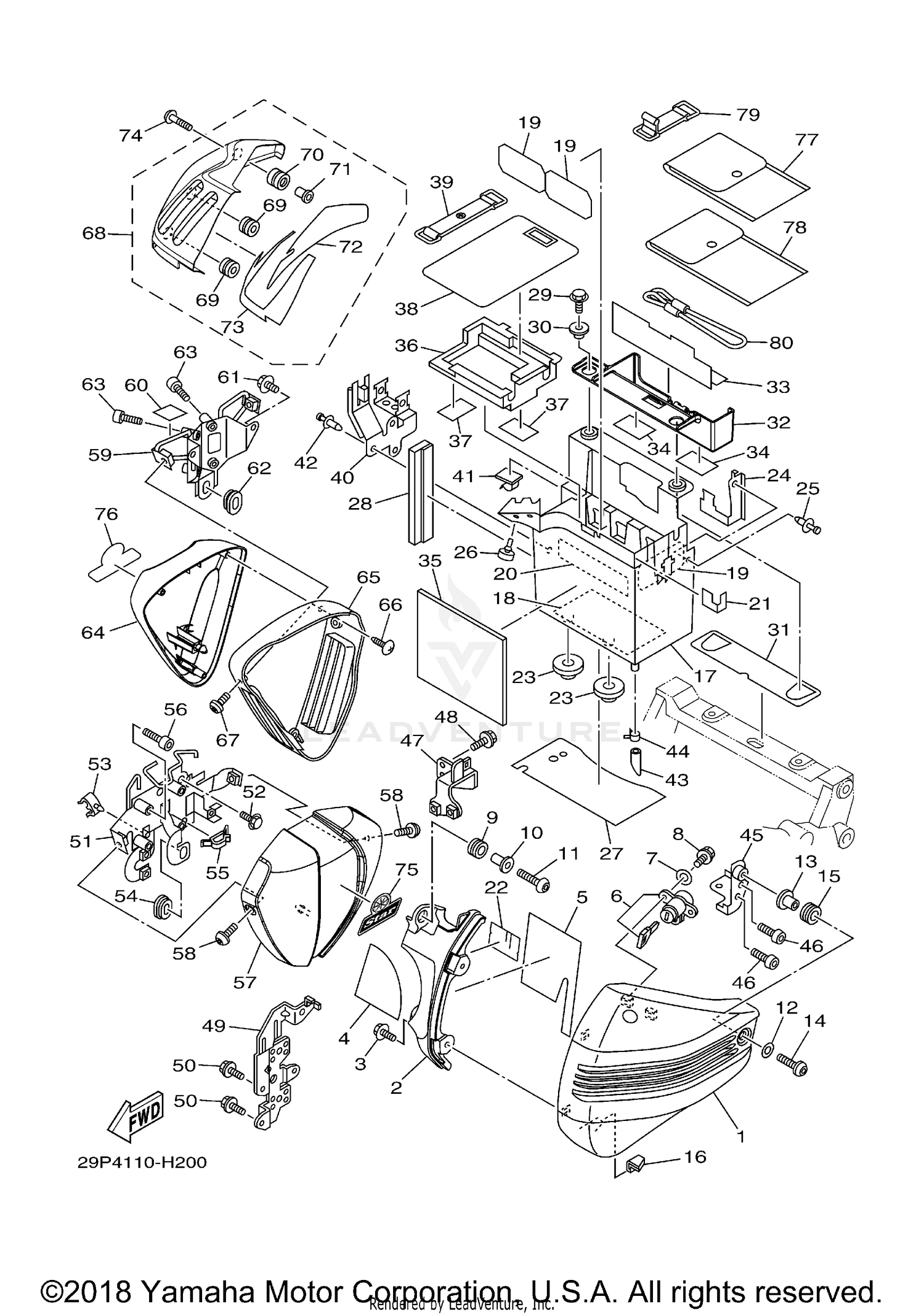

Side Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, SIDE 1
1D7-21711-00-P1
|
$196.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER 9
1D7-2117X-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-06020-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SEAL 2
1D7-21735-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
1D7-21746-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT LOCK ASSY
5PX-W2470-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-06034-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
90105-06639-00
Superseded by 95024-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-14323-00
Superseded by 90480-14329-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR
90387-066Y6-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, BUTTON HEAD
92014-06020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-06M01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
90560-06201-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW
90149-06023-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GROMMET
90480-12007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUIDE
5PX-2171H-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOX, BATTERY
1D7-2177G-02-00
|
$34.99 | ||
|
Unavailable |
|||
|
#18
DAMPER, LOCATING 2
5C7-21779-00-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
PROTECTOR
5PX-21652-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
DAMPER, LOCATING 1
5PX-21778-00-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL 4
5C7-2173N-00-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAL 2
5C7-21735-00-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#23
GROMMET
90480-20384-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET 3
5C7-2172M-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIVET
90269-07077-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER
1D7-2174X-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, LOCATING 4
1D7-2177N-01-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, LOCATING 1
1D7-21778-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, FLANGE
95022-06020-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-06109-00
Superseded by 90387-06267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
DAMPER
5C7-21747-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOX, TOOL
5C7-28173-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
DAMPER
5C7-2174Y-00-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#34
DAMPER
3YL-12232-00-00
Superseded by 5H0-8235Y-M0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
SEAL 1
1D7-21732-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
COVER, BATTERY
5PX-82129-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
DAMPER
5JW-2139X-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#38
STAY SETTING
5VN-8412H-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BAND, BATTERY
120-82131-00-00
Superseded by 7H3-82131-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BRACKET 1
1D7-2172K-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CLAMP
90464-25160-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
RIVET
90269-07077-00
|
$7.49 | ||
|
Unavailable |
|||
|
#43
HOSE
90445-11027-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLIP
90467-11090-00
Superseded by 90467-10135-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BRACKET 1
1D7-2175T-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
BRACKET 4
5C7-2172N-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
BOLT, FLANGE
95807-06014-00
Superseded by 95817-06014-00
|
$5.99 | ||
|
Unavailable |
|||
|
#49
STAY, SIDE COVER 2
5PX-2174E-00-00
Superseded by 5PX-2174E-01-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
BOLT, FLANGE
95027-06012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#51
BRACKET 3
5C7-2175V-00-00
|
$216.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
BOLT, FLANGE
95802-08035-00
Superseded by 95817-08035-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
CLAMP
90464-09130-00
|
$1.45 | ||
|
Available to order. Add to View Price |
|||
|
#54
GROMMET
90480-01558-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#55
CLAMP
90464-14001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, HEXAGON SOCKET HEAD
90110-06213-00
Superseded by 90110-06114-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
COVER, SIDE 3
5C7-21731-10-00
|
$172.99 | ||
|
Available to order. Add to View Price |
|||
|
#58
SCREW
90149-06302-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#59
BRACKET 4
1D7-2175W-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
SEAL 3
5C7-2173M-00-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#61
BOLT, FLANGE
95022-06010-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#62
GROMMET
90480-01558-00
|
$3.95 | ||
|
Unavailable |
|||
|
#63
BOLT, HEXAGON SOCKET HEAD
90110-06213-00
Superseded by 90110-06114-00
|
$9.49 | ||
|
Unavailable |
|||
|
#64
COVER, SIDE 4
5C7-21741-10-00
|
$166.99 | ||
|
Available to order. Add to View Price |
|||
|
#65
BODY
1D7-2171D-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#66
SCREW, TAPPING
90167-05077-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#67
SCREW
90149-06022-00
Superseded by 90149-06302-00
|
$5.49 | ||
|
Unavailable |
|||
|
#68
PLATE, COVER
5C7-17471-00-P3
|
$336.99 | ||
|
Available to order. Add to View Price |
|||
|
#69
GROMMET
90480-13007-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#70
GROMMET
90480-13006-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#71
COLLAR
90387-07007-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#72
SEAL, CRANKCASE
5C7-15379-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
SEAL
5C7-15663-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#74
BOLT, HEXAGON SOCKET HEAD
90111-06039-00
Superseded by 90110-06202-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#75
EMBLEM 3D
29P-2173D-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
EMBLEM 3D
29P-2173D-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#77
TOOL KIT
5C7-28100-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#78
TOOL KIT, 2
5C7-28110-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#79
BAND, BATTERY
3TJ-82131-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#80
HANGER, HELMET
4HC-21398-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
