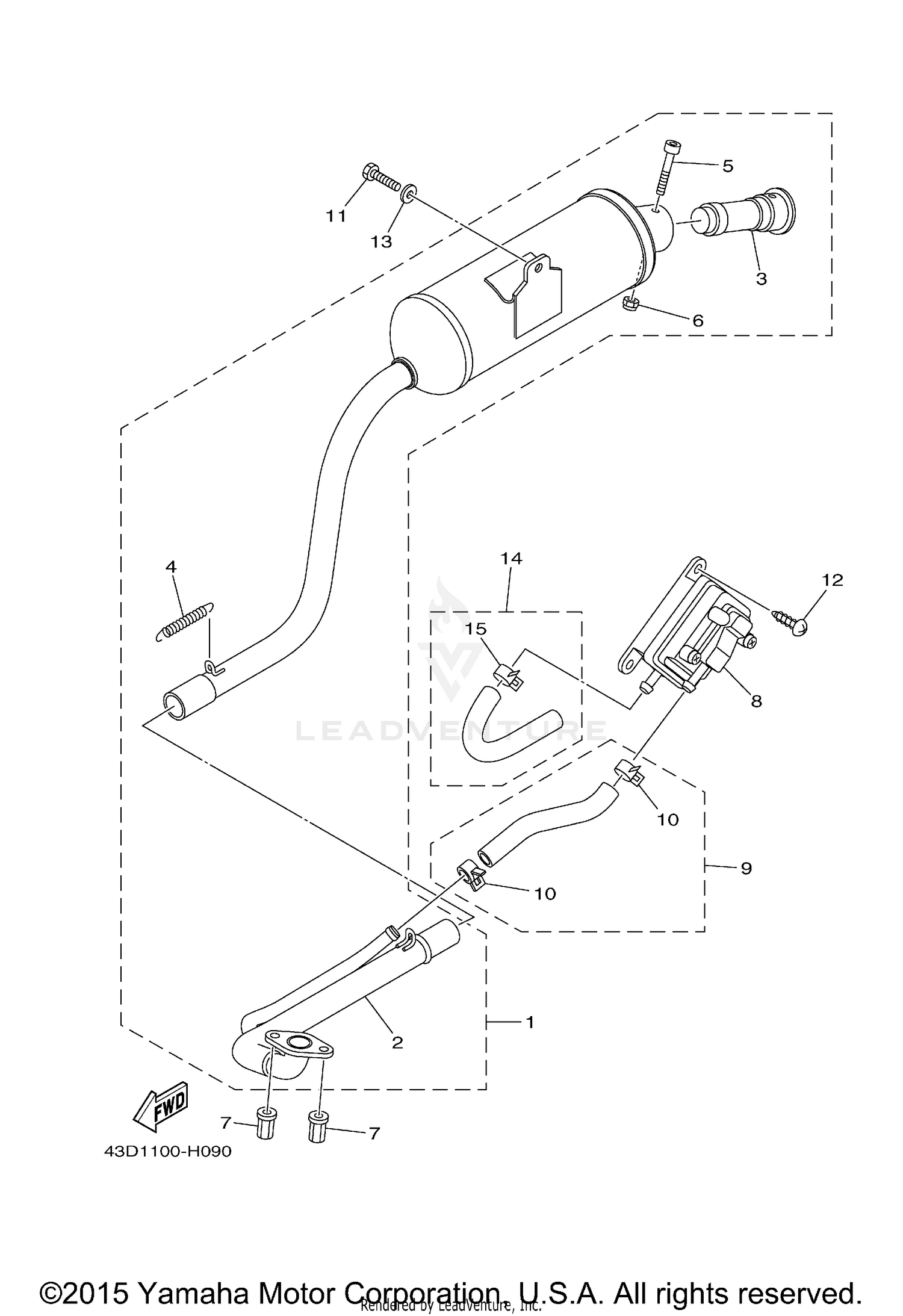

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSY 1
43D-E4610-00-00
|
$325.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BODY, PIPE 1-1
43D-E461A-00-00
|
$123.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, OUTLET
43D-E4752-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING, MUFFLER
43D-E4773-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT 2
43D-E3574-00-00
|
$3.95 | ||
|
Unavailable |
|||
|
#6
NUT
43D-E4595-00-00
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT 1
43D-E2671-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
AIR INDUCTION SYSTEM ASSY
43D-E4803-00-00
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONNECTING TUBE ASSY
43D-E48D0-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
43D-E4919-00-00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
43D-F2125-00-00
Superseded by 43D-F2125-10-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
43D-E4565-00-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, SEAT
43D-E2289-00-00
Superseded by 1SC-F4746-00-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOSE ASSY
43D-E48A0-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP
43D-E4919-00-00
|
$3.28 | ||
|
Unavailable |
|||
