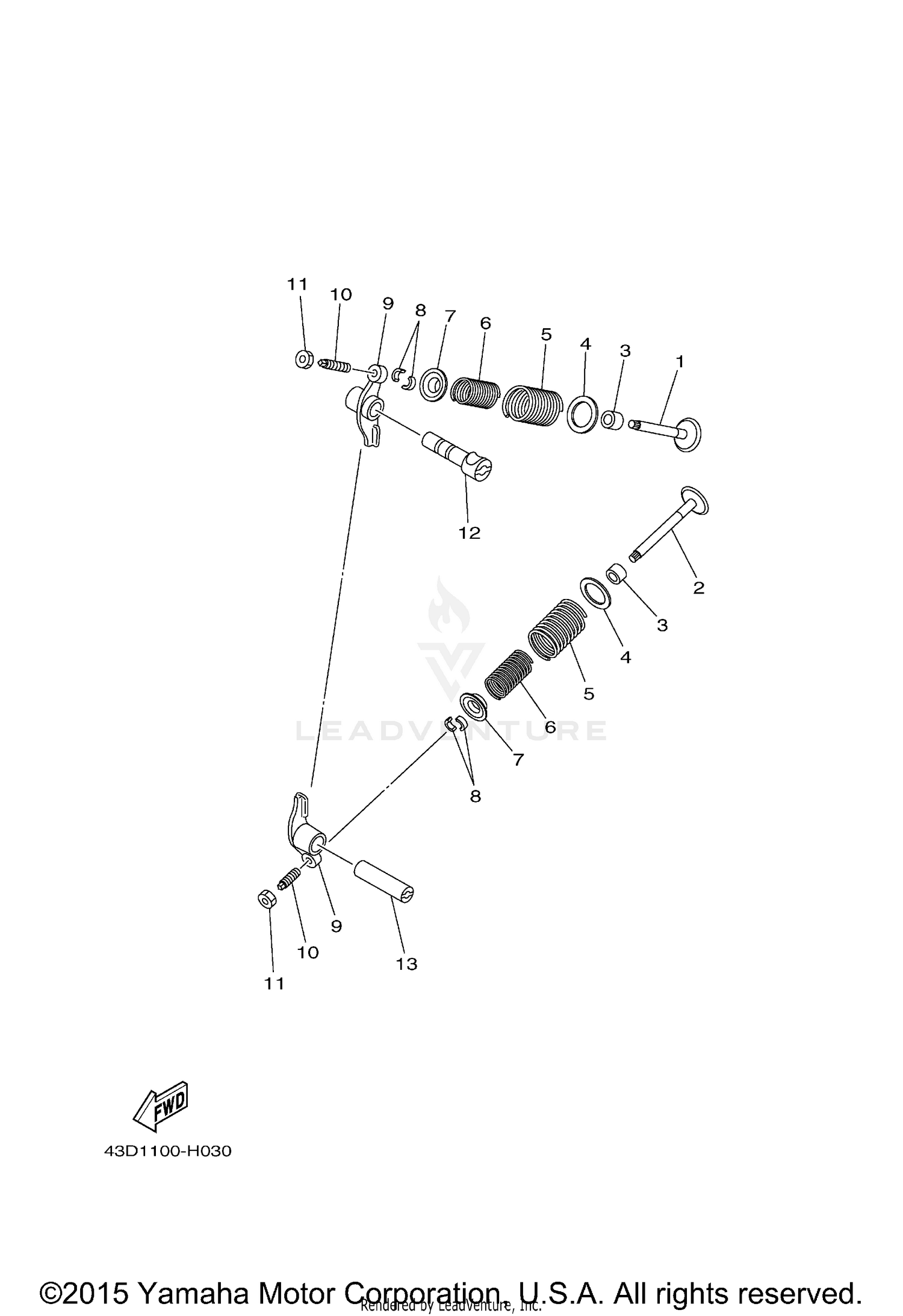

2009 Yamaha RAPTOR 90 VALVE OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
VALVE, INTAKE
43D-E2111-00-00
Superseded by 43D-12111-09-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE, EXHAUST
43D-E2121-00-00
Superseded by 43D-12121-09-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL, VALVE STEM
43D-E2119-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#4
WASHER
43D-E3578-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, VALVE OUTER
43D-E2114-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, VALVE INNER
43D-E2113-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER, VALVE SPRING
43D-E2117-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COTTER, VALVE
43D-E2118-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM, VALVE ROCKER
43D-E2151-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, VALVE ADJUSTING
43D-E2159-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
95307-05600-00
Superseded by 95317-05600-00
|
$2.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
SHAFT, ROCKER
43D-E2146-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SHAFT, ROCKER 2
43D-E2156-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
