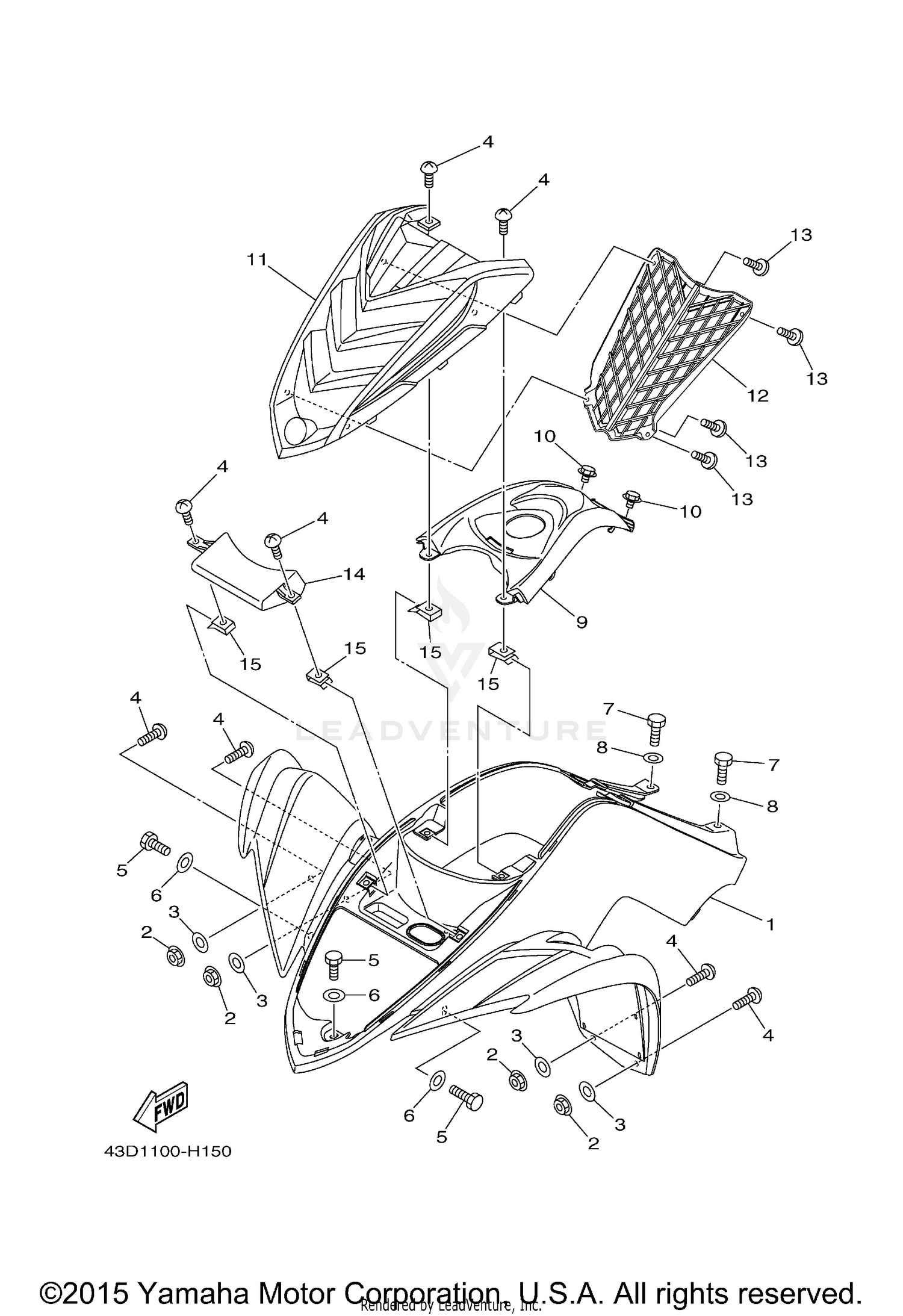

2009 Yamaha RAPTOR 90 FRONT FENDER OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FENDER ASSY
43D-F1500-00-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FENDER ASSY, FRONT
43D-F1500-10-00
|
$181.55 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT 2
43D-F1536-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER 4
43D-F2246-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
43D-F4444-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON DEEP R
97004-06016-00
Superseded by 97D95-06016-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
92904-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
97007-06020-00
Superseded by 97017-06020-00
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-06600-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, TOP
43D-F171A-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLUG, DRAIN
43D-F3119-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#11
FENDER, FRONT 2
43D-F1556-10-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#
FENDER, FRONT 2
43D-F1556-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, RADIATOR
43D-E2467-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
43D-F4453-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER
43D-F4474-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT 2
43D-F3834-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
