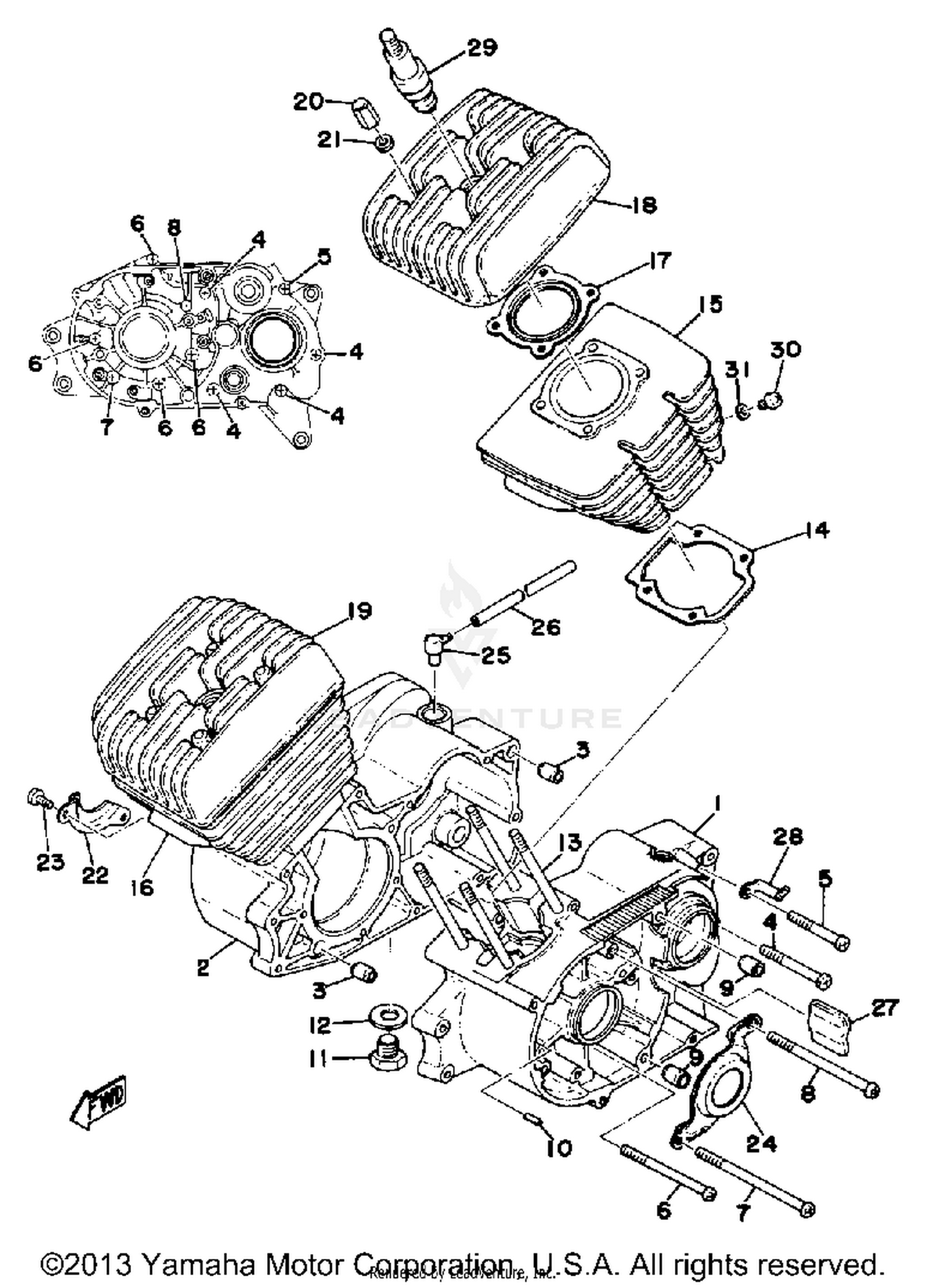

Crankcase Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
397-15111-00-00
|
$108.99 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
397-15121-00-00
|
$126.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-06550-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98511-06085-00
Superseded by 98507-06085-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
98501-06110-00
Superseded by 98507-06110-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98501-06100-00
Superseded by 98507-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93603-14026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, STUD (174-11361-00)
90116-07033-00
|
$5.99 | ||
|
Unavailable |
|||
|
#14
GASKET,CYLINDER
397-11351-00-00
Superseded by 397-11351-09-00
|
$3.10 | ||
|
Unavailable |
|||
|
#15
UNAVAILABLE IN PRICE BOOK
39-71131-10-20
|
|||
|
Unavailable |
|||
|
#16
UNAVAILABLE IN PRICE BOOK
39-71132-10-20
|
|||
|
Unavailable |
|||
|
#17
GASKET, CYLINDER HEAD 1
273-11181-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#18
UNAVAILABLE IN PRICE BOOK
41-71111-10-00
|
|||
|
Unavailable |
|||
|
#19
UNAVAILABLE IN PRICE BOOK
41-71112-10-00
|
|||
|
Unavailable |
|||
|
#20
NUT, CROWN (166-11171-60)
90176-07003-00
|
$11.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-07077-00
|
$2.50 | ||
|
Unavailable |
|||
|
#22
UNAVAILABLE IN PRICE BOOK
39-71511-80-00
|
|||
|
Unavailable |
|||
|
#23
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#24
UNAVAILABLE IN PRICE BOOK
38-91512-80-00
|
|||
|
Unavailable |
|||
|
#25
BREATHER
583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOSE (3AK)
90446-07241-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
UNAVAILABLE IN PRICE BOOK
24-11535-70-00
|
|||
|
Unavailable |
|||
|
#28
CLAMP
90465-08046-00
|
$0.55 | ||
|
Unavailable |
|||
|
#29
BR8ES NGK SCREW TOP
NGK-B8ES0-00-00
Superseded by BR8-ES000-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#30
SCREW, PAN HEAD
98580-06008-00
Superseded by 97885-06008-00
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
GASKET
90430-06011-00
Superseded by 90430-06224-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
