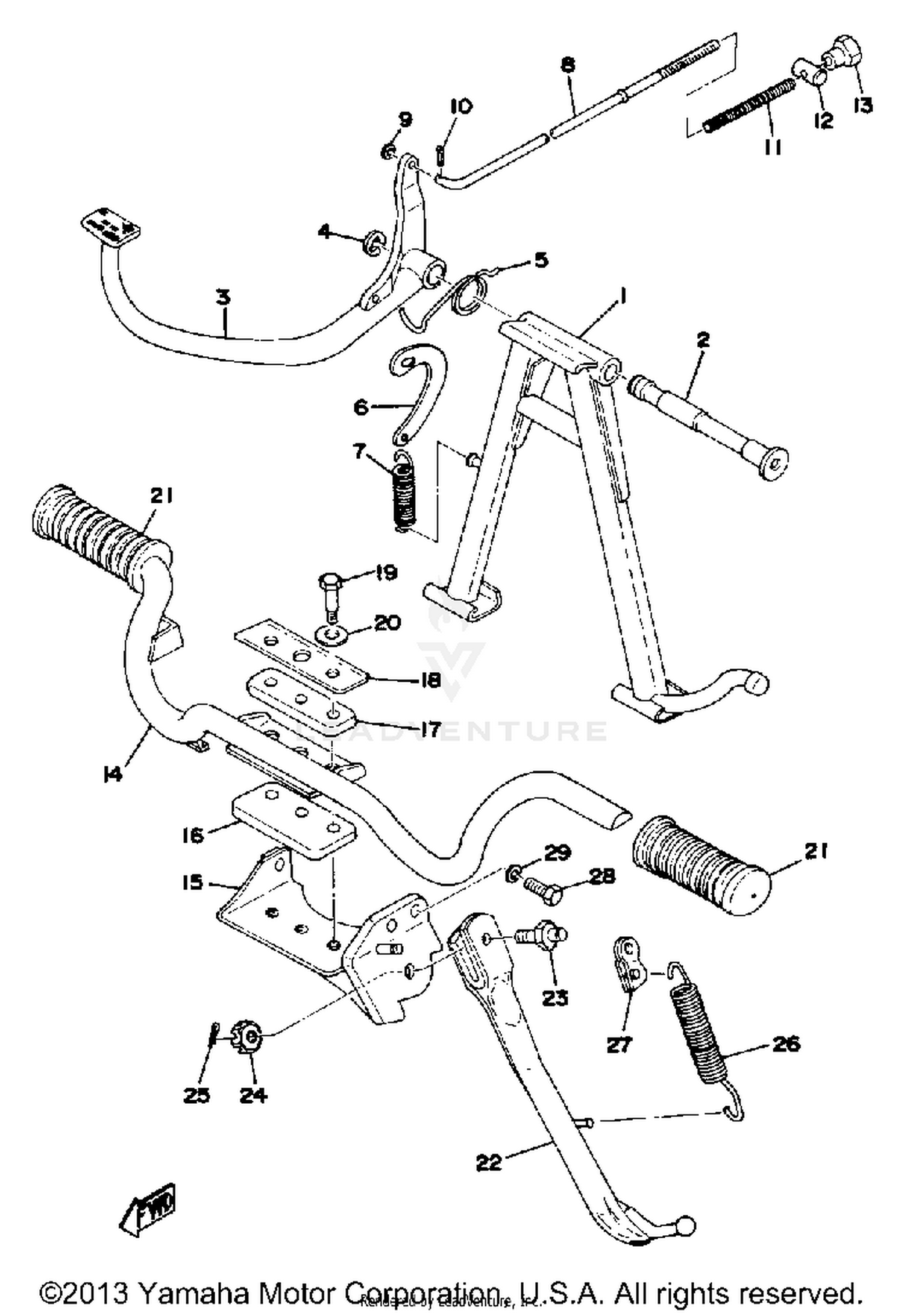

Stand Footrest Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, MAIN
337-27111-00-00
|
$33.74 | ||
|
Unavailable |
|||
|
#2
SHAFT, MAIN STAND
122-27112-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
PEDAL, BRAKE
1E8-27211-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#4
CIRCLIP
93430-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, TORSION
90508-32056-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
UNAVAILABLE IN PRICE BOOK
17-42711-50-00
|
|||
|
Unavailable |
|||
|
#7
SPRING, TENSION (174-27116-00)
90506-32056-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD, BRAKE
337-27231-00-00
|
$9.99 | ||
|
Unavailable |
|||
|
#9
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
UNAVAILABLE IN PRICE BOOK
33-72741-10-00
|
|||
|
Unavailable |
|||
|
#15
UNAVAILABLE IN PRICE BOOK
33-72741-20-00
|
|||
|
Unavailable |
|||
|
#16
DAMPER, FOOTREST 2
132-27424-00-00
|
$4.40 | ||
|
Unavailable |
|||
|
#17
DAMPER, FOOTREST
132-27414-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#18
UNAVAILABLE IN PRICE BOOK
13-22741-70-00
|
|||
|
Unavailable |
|||
|
#19
BOLT (132-27416-00)
90109-08193-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-10132-00
Superseded by 90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, FOOTREST
156-27413-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
UNAVAILABLE IN PRICE BOOK
50-72731-10-00
|
|||
|
Unavailable |
|||
|
#23
BOLT
90109-10399-00
|
$5.99 | ||
|
Unavailable |
|||
|
#24
NUT, CASTLE
90171-10012-00
Superseded by 90171-10049-00
|
$2.90 | ||
|
Unavailable |
|||
|
#25
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Unavailable |
|||
|
#26
UNAVAILABLE IN PRICE BOOK
90-50729-02-20
|
|||
|
Unavailable |
|||
|
#27
LINK, SIDE STAND
507-27315-01-00
|
$6.26 | ||
|
Unavailable |
|||
|
#28
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
