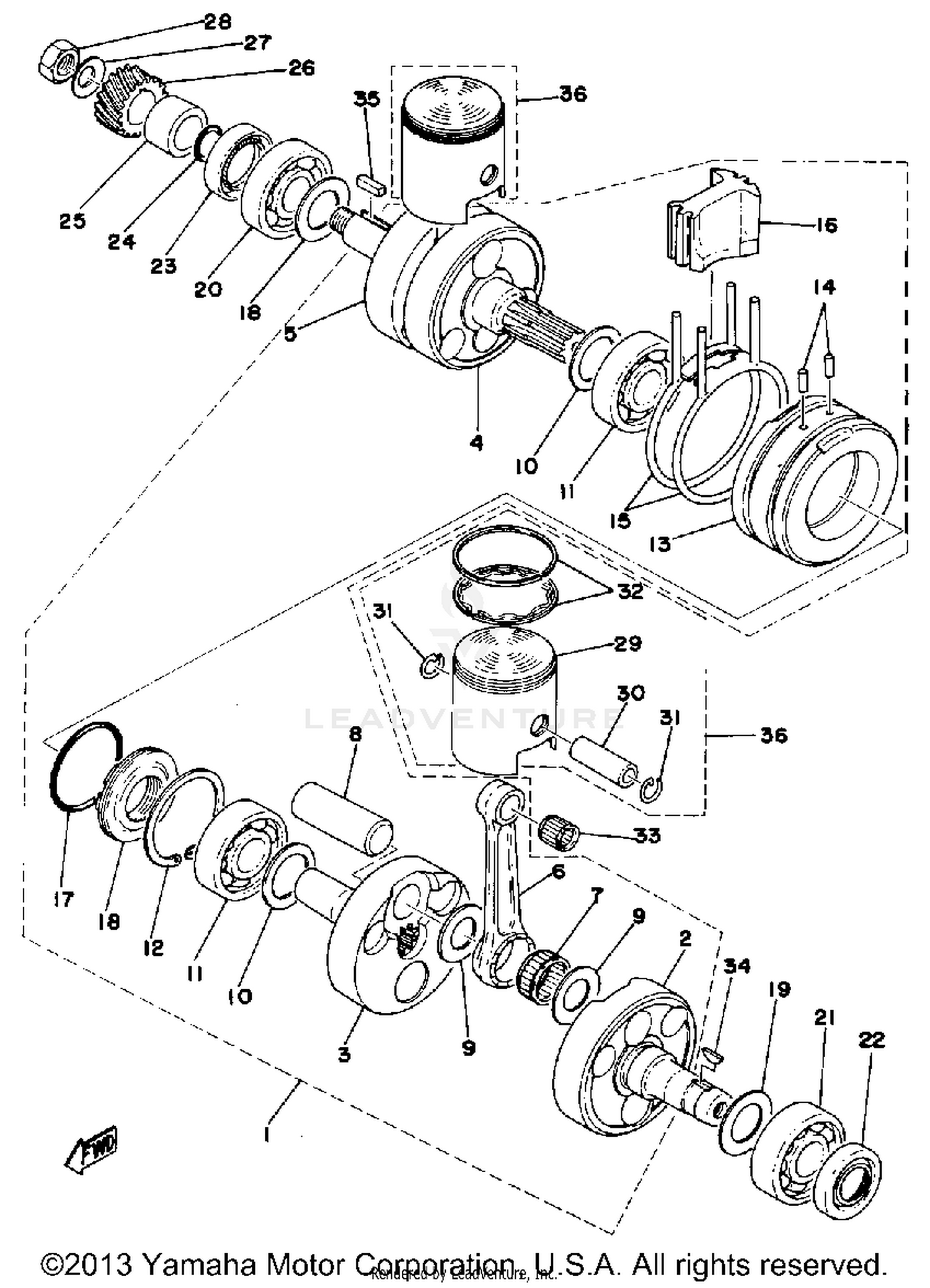

Crankshaft Piston Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT ASSEMBLY
397-11400-01-00
|
$260.99 | ||
|
Unavailable |
|||
|
#2
UNAVAILABLE IN PRICE BOOK
39-71141-20-00
|
|||
|
Unavailable |
|||
|
#3
UNAVAILABLE IN PRICE BOOK
17-41142-20-20
|
|||
|
Unavailable |
|||
|
#4
UNAVAILABLE IN PRICE BOOK
17-41143-20-10
|
|||
|
Unavailable |
|||
|
#5
UNAVAILABLE IN PRICE BOOK
39-71144-20-00
|
|||
|
Unavailable |
|||
|
#6
ROD, CONNECTING (787-11651-10
50W-11651-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, CYLINDER.#10
93310-42012-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, CRANK 1
2Y1-11681-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER
90209-20159-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIM, CRANK 1
132-11561-00-03
|
$4.55 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
132-11561-00-05
|
$4.65 | ||
|
Unavailable |
|||
|
#11
BEARING (B6205C4)
93306-20529-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CIRCLIP
93450-52010-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL
93604-18058-00
Superseded by 93604-18251-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
93604-18058-00
Superseded by 93604-18251-00
|
$0.85 | ||
|
Unavailable |
|||
|
#15
UNAVAILABLE IN PRICE BOOK
17-41151-20-20
|
|||
|
Unavailable |
|||
|
#16
UNAVAILABLE IN PRICE BOOK
39-71154-10-00
|
|||
|
Unavailable |
|||
|
#17
O-RING
93210-46044-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
SEAL, LABYRINTH 1
174-11515-00-00
|
$10.49 | ||
|
Unavailable |
|||
|
#19
SHIM, CRANK 1
132-11561-00-03
|
$4.55 | ||
|
Unavailable |
|||
|
#
SHIM, CRANK 1
132-11561-00-05
|
$4.65 | ||
|
Unavailable |
|||
|
#20
BEARING
93306-30536-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BEARING (B6205C4)
93306-20529-00
|
$37.99 | ||
|
Unavailable |
|||
|
#22
OIL SEAL, SD-TYPE
93102-20117-00
|
$5.49 | ||
|
Unavailable |
|||
|
#23
OIL SEAL, SW-TYPE
93103-32031-00
|
$6.99 | ||
|
Unavailable |
|||
|
#24
O-RING
93210-180A6-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
UNAVAILABLE IN PRICE BOOK
90-38720-49-90
|
|||
|
Unavailable |
|||
|
#26
UNAVAILABLE IN PRICE BOOK
39-71611-10-00
|
|||
|
Unavailable |
|||
|
#27
WASHER, CONICAL SPRING
90208-12015-00
Superseded by 90208-12800-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
90179-12244-00
Superseded by 90179-12659-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PISTON STD
397-11631-00-96
|
$82.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25
397-11635-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#
PISTON 2 O/S 0.50
397-11636-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#
PISTON 3 O/S 0.75
397-11637-00-00
|
$52.99 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
39-71163-80-00
|
|||
|
Unavailable |
|||
|
#30
PIN, PISTON
131-11633-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CIRCLIP
93450-15023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PISTON RINGSET STD
397-11610-02-00
|
$62.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 1ST
397-11610-12-00
|
$90.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 2ND
397-11610-22-00
|
$79.99 | ||
|
Unavailable |
|||
|
#
PISTON RINGSET 3RD
397-11610-32-00
|
$32.66 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
39-71161-04-20
|
|||
|
Unavailable |
|||
|
#33
BEARING
93310-21403-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
KEY, WOODRUFF
90280-03017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
KEY, STRAIGHT
90282-05005-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PISTON STD
397-11631-00-96
|
$82.99 | ||
|
Unavailable |
|||
|
#
PISTON 1 O/S 0.25
397-11635-00-00
|
$79.99 | ||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
39-71163-02-00
|
|||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
39-71163-03-00
|
|||
|
Unavailable |
|||
|
#
UNAVAILABLE IN PRICE BOOK
39-71163-04-00
|
|||
|
Unavailable |
|||
