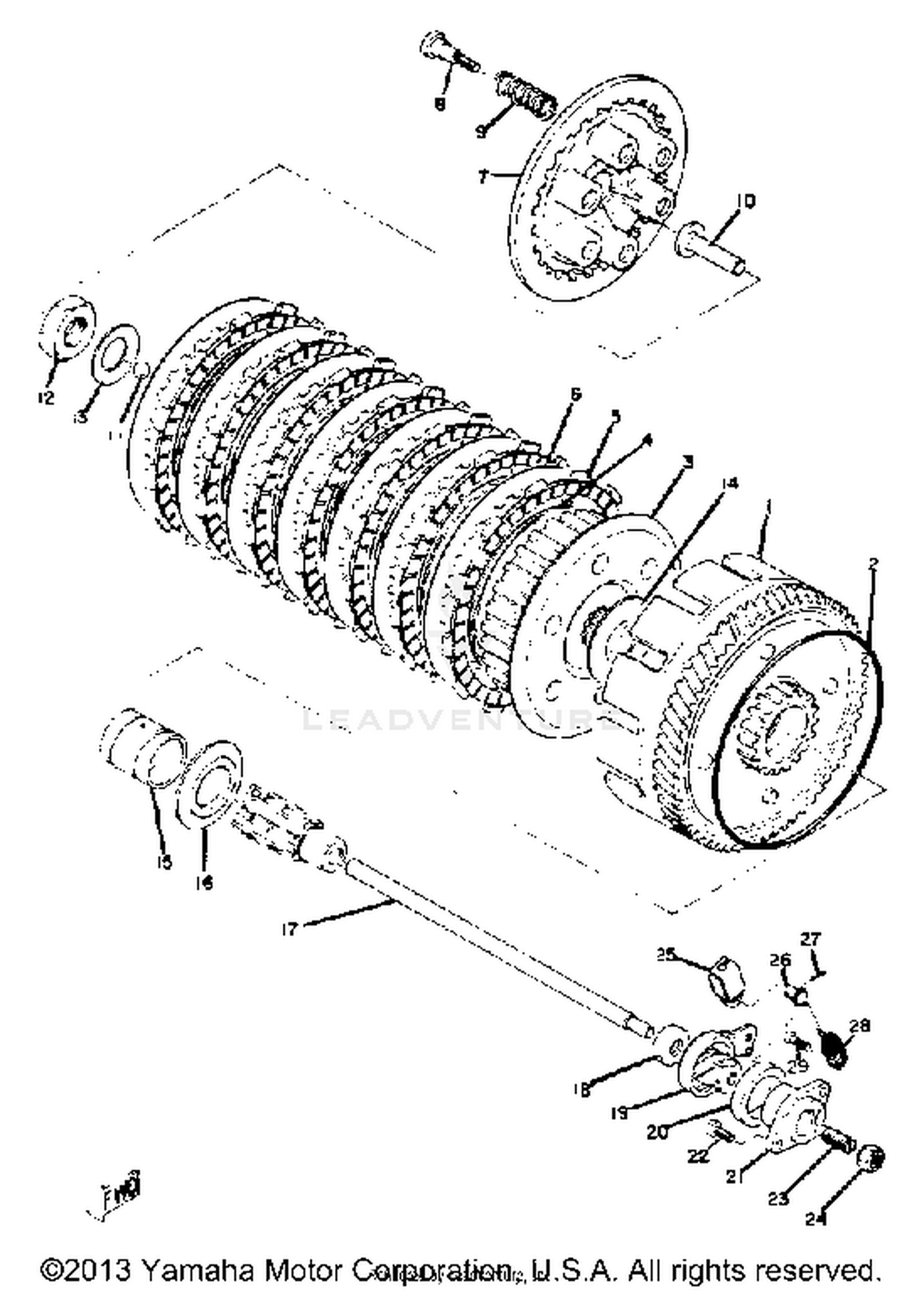

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRI DRVN GEAR
280-16150-01-00
|
$138.99 | ||
|
Unavailable |
|||
|
#
CLUTCH ASSEMBLY
361-16301-01-00
|
$123.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93211-15149-00
|
$4.36 | ||
|
Unavailable |
|||
|
#3
CLUTCH BOSS ASSEMBLY
360-16370-00-00
|
$119.99 | ||
|
Unavailable |
|||
|
#4
RING, CUSHION
278-16367-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, FRICTION 2
360-16321-00-00
Superseded by 5Y1-16331-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, CLUTCH 2
360-16325-00-00
Superseded by 360-16325-10-00
|
$35.99 | ||
|
Unavailable |
|||
|
#7
PLATE, PRESSURE 1
214-16351-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#8
SCREW, SPECL SHAPE
90149-05147-00
|
$1.10 | ||
|
Unavailable |
|||
|
#9
SPRING, COMPRESSION
90501-20361-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ROD, PUSH 1
174-16356-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BALL
93505-16006-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
90170-18089-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
SPRING, BELLEVILLE
214-16119-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, THRUST 2
170-16164-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPACER 1
278-16181-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, THRUST 1
360-16154-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLATE, THRUST 1
278-16154-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#17
ROD, PUSH 2
237-16357-01-00
|
$12.99 | ||
|
Unavailable |
|||
|
#18
OIL SEAL
93109-08061-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PUSH LEVER ASSEMBLY
360-16340-00-00
|
$33.80 | ||
|
Unavailable |
|||
|
#20
SEAL, DUST
214-16347-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#21
HOUSING, PUSH SCREW
371-16396-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#22
SCREW, PAN HEAD
98580-05012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, SET
90113-08021-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90179-08179-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
JOINT
214-16389-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN, CLEVIS
90240-06005-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
PIN, COTTER
91401-10015-00
|
$2.35 | ||
|
Unavailable |
|||
|
#28
SPRING, TENSION
90506-10069-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOOK, SPRING
132-16346-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
